Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to Seat Replacement - Rear .
  2. Remove the seat riser. Refer to Seat Riser Replacement - Rear .
  3. Remove the seat adjuster bolts.
  4. Remove the seat adjuster from the seat.

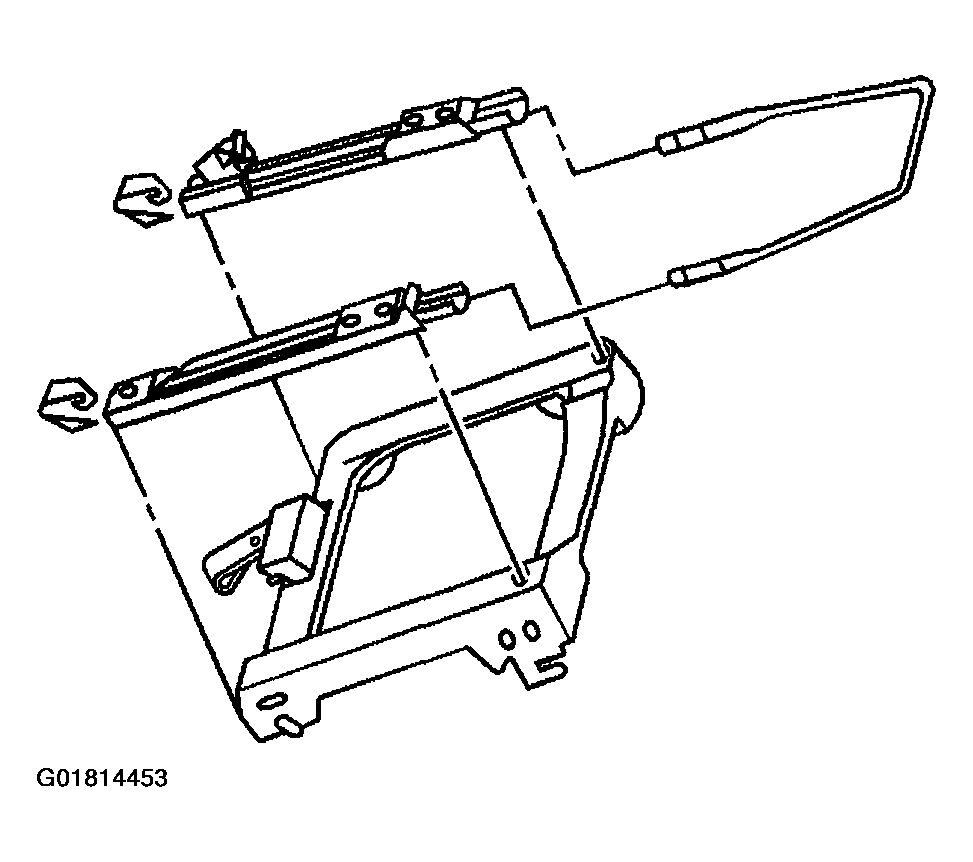

    Fig 1: Removing Seat Adjuster & Seat Riser
    G01814453Courtesy of GENERAL MOTORS CORP.
