Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat adjuster to the seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat adjuster bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

  3. Install the seat riser. Refer to Seat Riser Replacement - Rear .
  4. Install the seat. Refer to Seat Replacement - Rear .

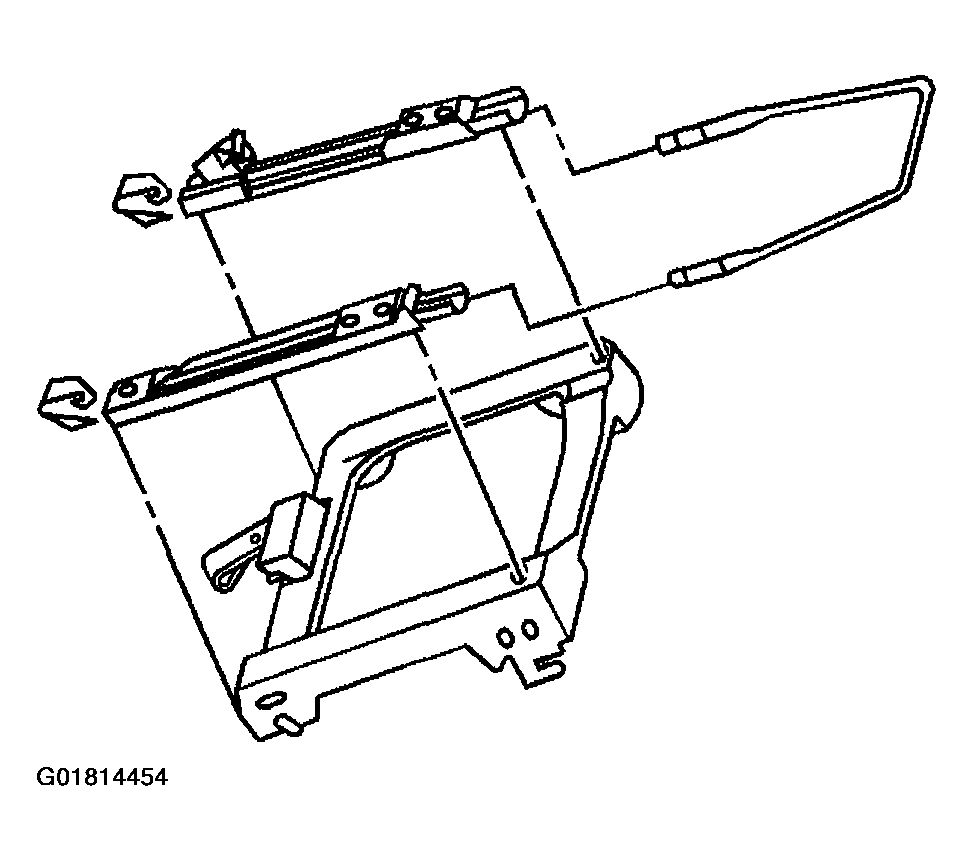

    Fig 1: Installing Seat Adjuster & Seat Riser
    G01814454Courtesy of GENERAL MOTORS CORP.
