Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the adjuster to the seat frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat adjuster bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

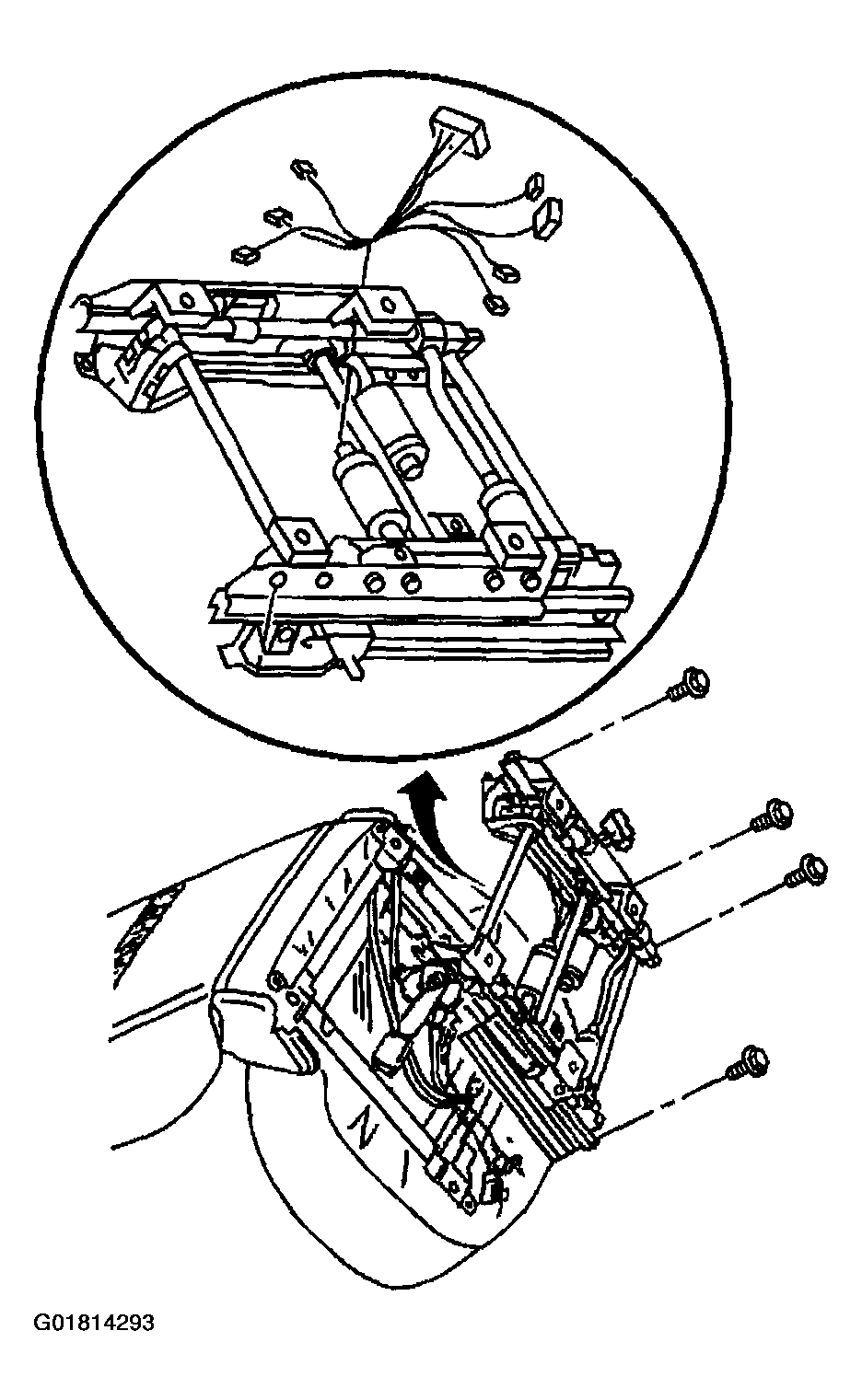

    Fig 1: Installing Seat Adjuster & Bolts (Seat Adjuster)
    G01814293Courtesy of GENERAL MOTORS CORP.
  3. Route the 6-way power seat electrical harness to the adjuster assembly.

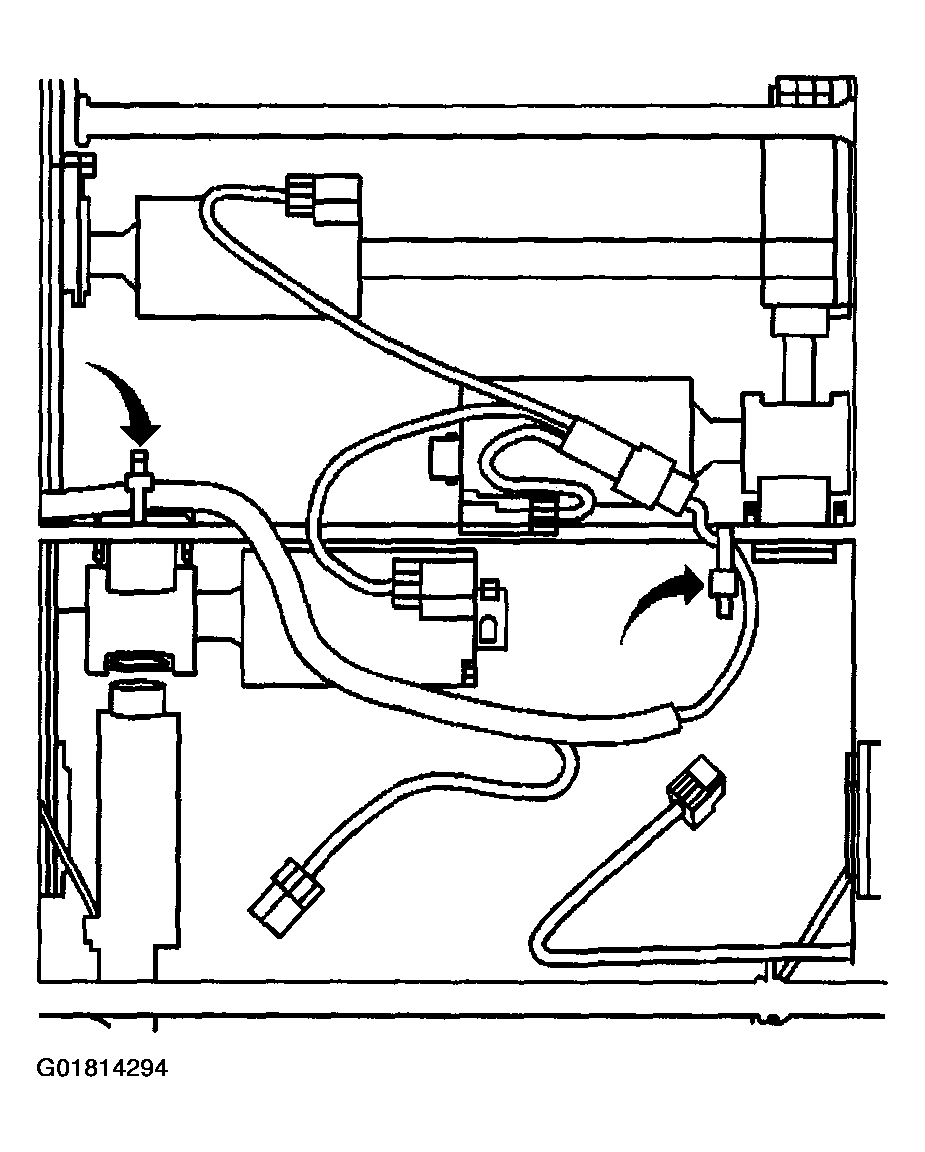

    Fig 2: View Of Seat Adjuster
    G01814294Courtesy of GENERAL MOTORS CORP.
  4. Secure with the cable straps.
  5. Route the seat belt warning lamp wire to the rear of the lift linkage.
  6. Secure with the cable strap to the seat frame.
  7. Install the seat belt buckle with pretensioner. Refer to SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - LH or SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - RH .
  8. Install the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  9. Install the front seat. Refer to Seat Replacement - Bucket .
  10. Inspect the adjusters.

If the adjusters are cut of phase (one adjuster reaches its maximum horizontal or vertical travel in a given direction before the other adjuster) phase the adjusters as follows:

  1. Horizontal travel
    1. 10.1.1. Operate the seat control switch until 1 adjuster reaches a full-forward position.
    2. 10.1.2. Detach the horizontal drive cable from the adjuster which has reached a full-forward position.
    3. 10.1.3. Operate the seat forward until the other adjuster reaches a full-foward position.
    4. 10.1.4. Connect the horizontal drive cable.
    5. 10.1.5. Inspect the horizontal travel to the seat.
  2. Front or rear vertical travel
    1. 10.2.1. Operate the seat control switch until one adjuster has reached a fully raised position at both the front and the rear vertical travel limits.
    2. 10.2.2. Disconnect both of the vertical drive cables from the adjuster which has reached the fully raised position.
    3. 10.2.3. Operate the seat control switch until the other adjuster reaches the fully raised position at both of the front and the rear vertical limits.
    4. 10.2.4. Connect the previously removed front and rear vertical drive cables.
    5. 10.2.5. Inspect the vertical travel by operating the adjusters through 1 or 2 complete cycles.

      The above operation may be repeated on a "as required basis," if the adjusters do not appear to be in phase after the test cycle.
