Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  3. Remove the seat belt buckle with pretensioner. Refer to SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - LH or SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - RH .
  4. Cut the cable strap that secures the seat belt warning lamp wire to the seat frame.
  5. Cut the cable straps that secure the 6-way power seat electrical harness to the adjuster assembly.

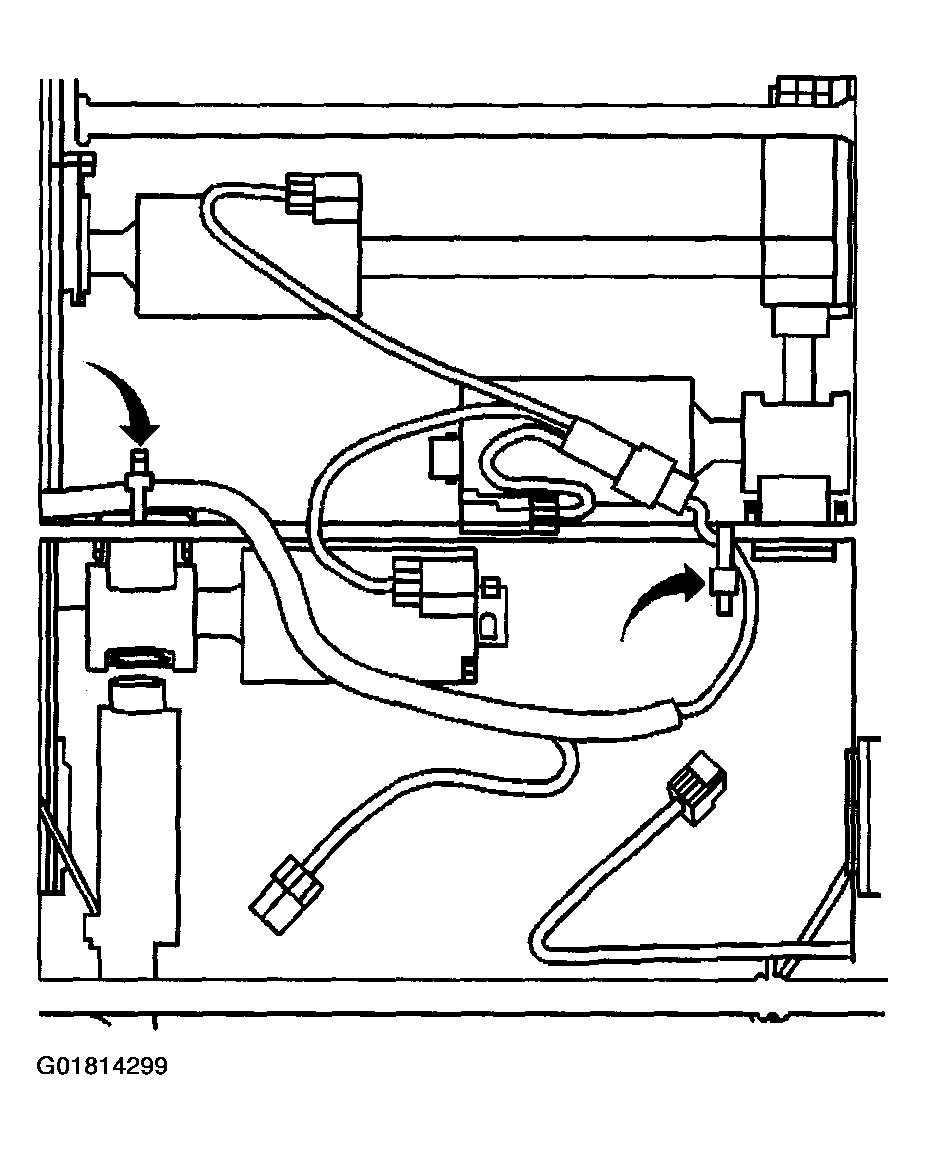

    Fig 1: Seat Adjuster Mechanism
    G01814299Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat adjuster bolts.
  7. Remove the adjuster from the seat frame.

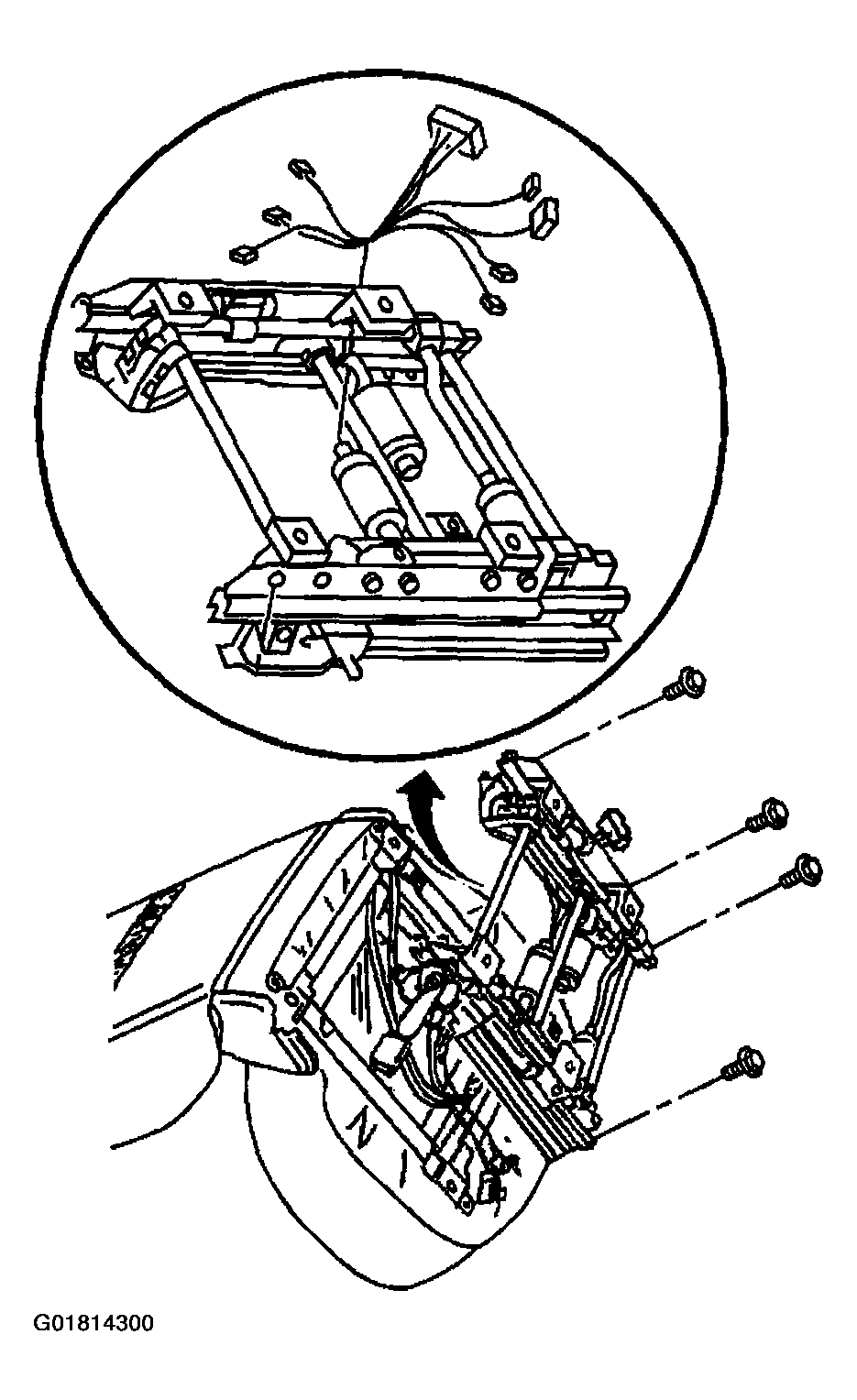

    Fig 2: Removing Seat Adjuster & Bolts (Seat Adjuster Mechanism)
    G01814300Courtesy of GENERAL MOTORS CORP.
