Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  3. Remove the seat belt buckle with pretensioner. Refer to SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - LH or SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - RH .
  4. Remove the seat adjuster bolts.
  5. Remove the seat adjuster (1) from the seat frame.

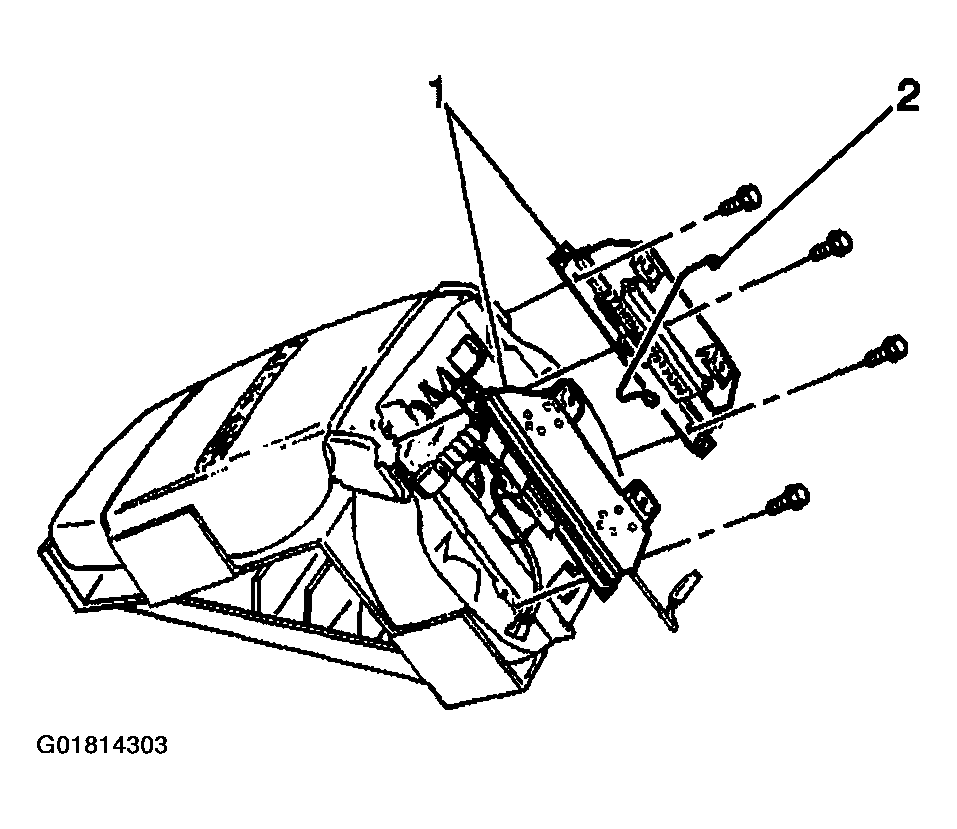

    Fig 1: Removing Seat Adjusters (Two - Way Manual)
    G01814303Courtesy of GENERAL MOTORS CORP.
