Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to Head Restraint Replacement - Rear Seat .
  2. Fold the rear seat down.
  3. Remove the seat back cover retainer at the bottom edge of the seat back cover.
  4. Carefully reach inside the rear seat back and squeeze together the bottom of the head restraint guide.
  5. Remove the head restraint guide from the seat back frame.

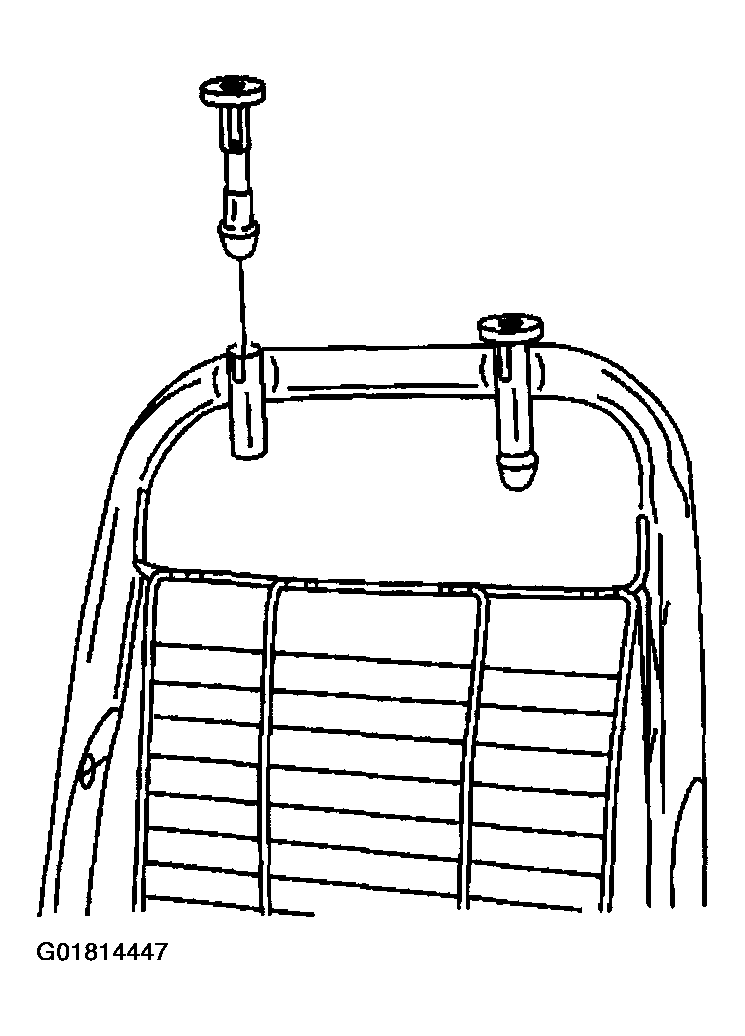

    Fig 1: Removing Head Restraint Guide (Rear Seat)
    G01814447Courtesy of GENERAL MOTORS CORP.
