Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  2. Remove the seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Remove the seat back pad. Refer to Seat Back Pad Replacement - Front .
  4. Squeeze the bottom of the head restraint guide together and pull the head restraint guide from the seat back frame.

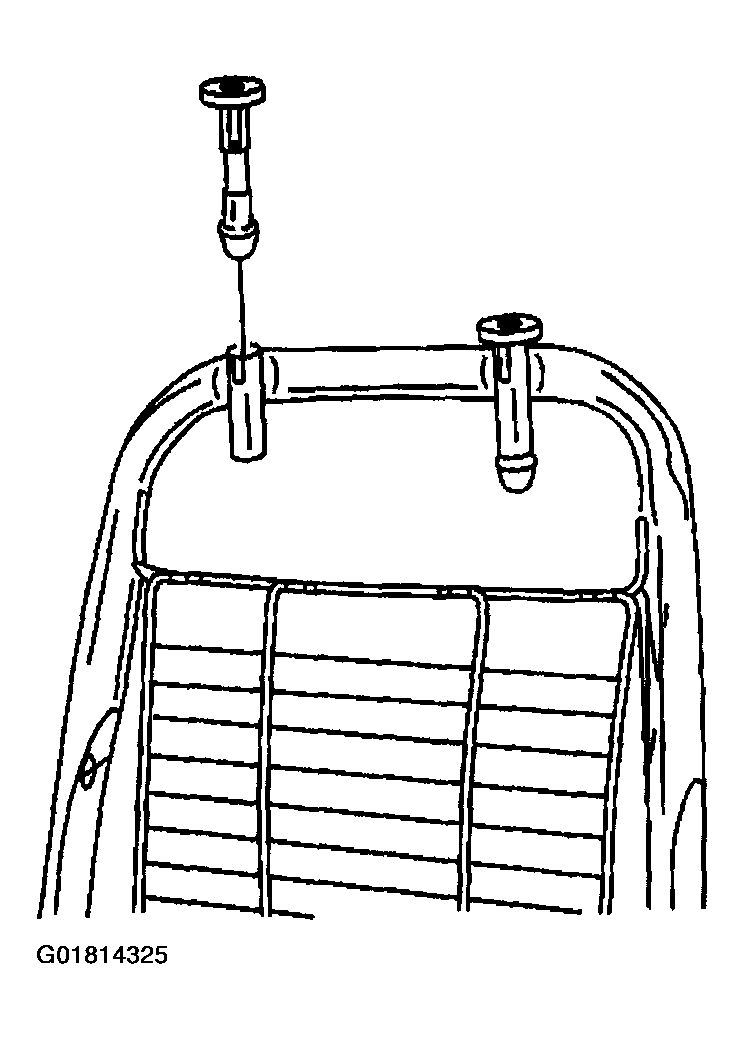

    Fig 1: Removing Head Restraint
    G01814325Courtesy of GENERAL MOTORS CORP.
