Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the head restraint guide into the seat back frame. Make sure it locks into place.
  2. Install the seat back pad. Refer to Seat Back Pad Replacement - Front .
  3. Install the seat back cover. Refer to Seat Back Cover Replacement - Front .
  4. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .

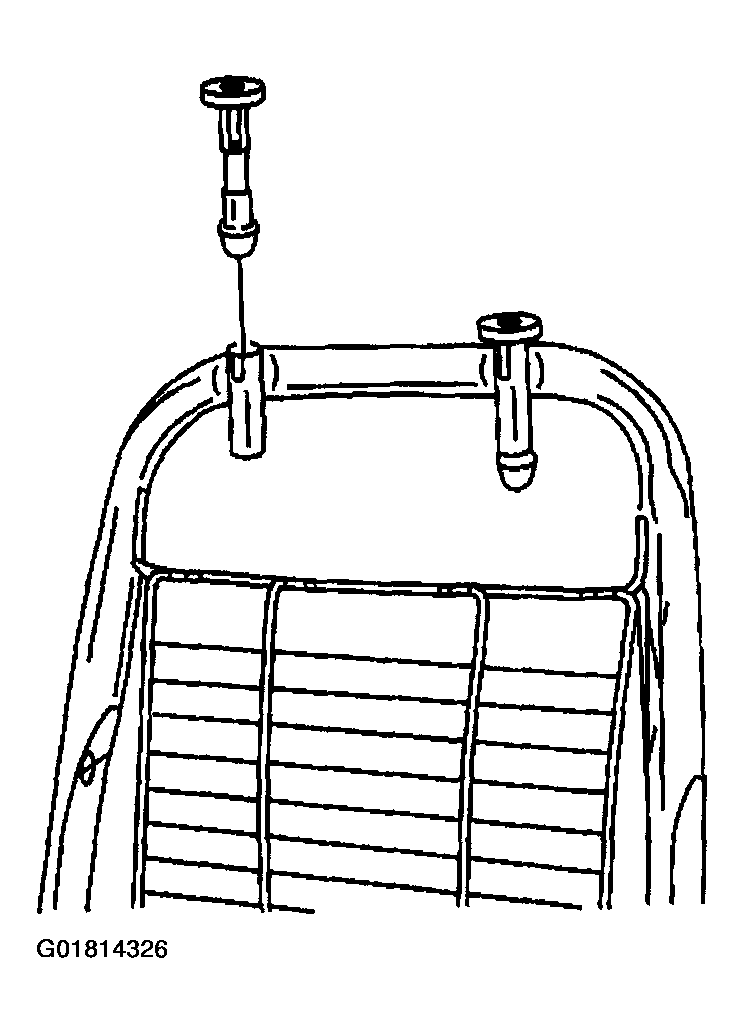

    Fig 1: Installing Head Restraint
    G01814326Courtesy of GENERAL MOTORS CORP.
