Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint posts (1) into the guides.
  2. Push the head restraint to a full down position.
  3. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  4. Return the head restraint to its original position.

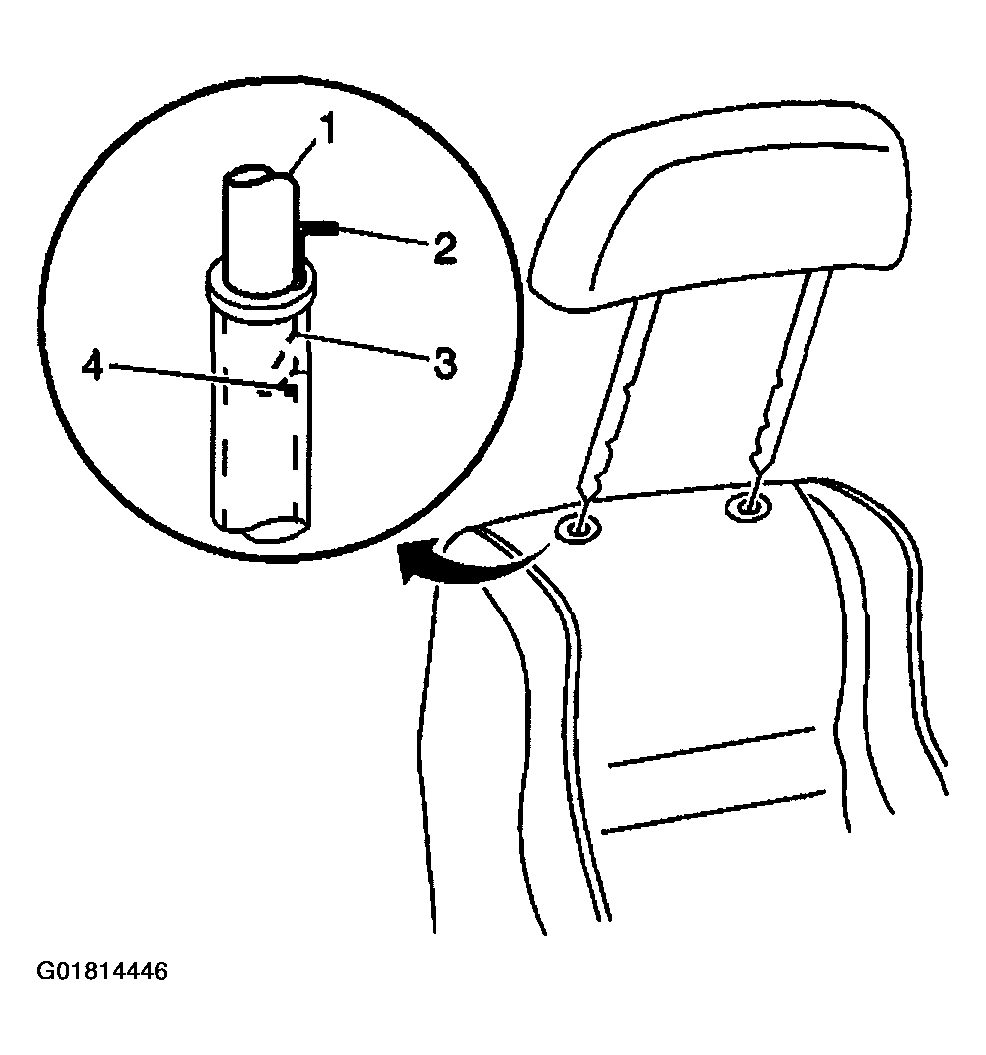

    Fig 1: Installing Locking Clip Between Detents On Posts (Rear Seat)
    G01814446Courtesy of GENERAL MOTORS CORP.
