Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the head restraint to a full down position in order to install the head restraint posts (1) into the guides (4).
  2. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  3. Return the head restraint to its original position.

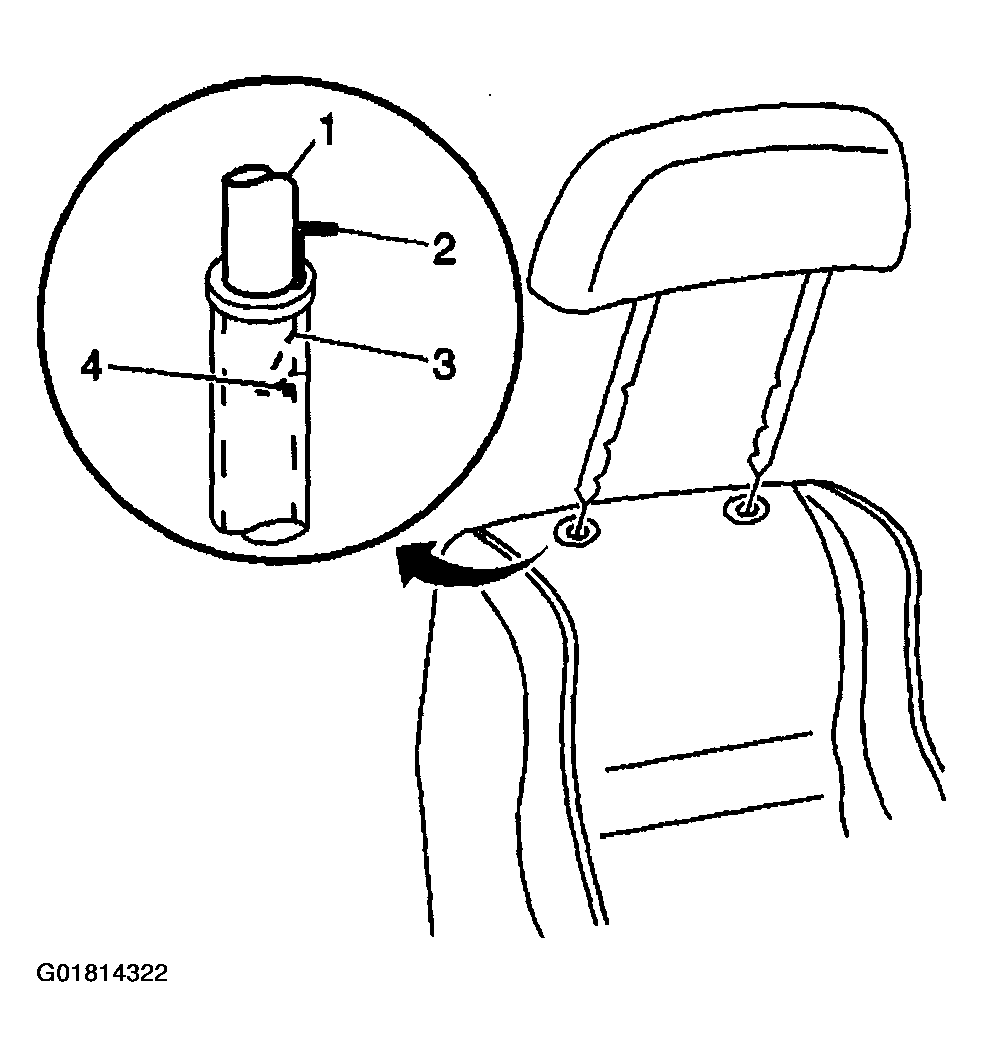

    Fig 1: Installing Locking Clip Between Detents On Posts
    G01814322Courtesy of GENERAL MOTORS CORP.
