Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The solid-type head restraint is the only head restraint with a serviceable trim cover.

  1. Pull the head restraint to the full up position.
  2. Disconnect the J and arrow retainers at the bottom of the cover.
  3. Remove the head restraint cover.

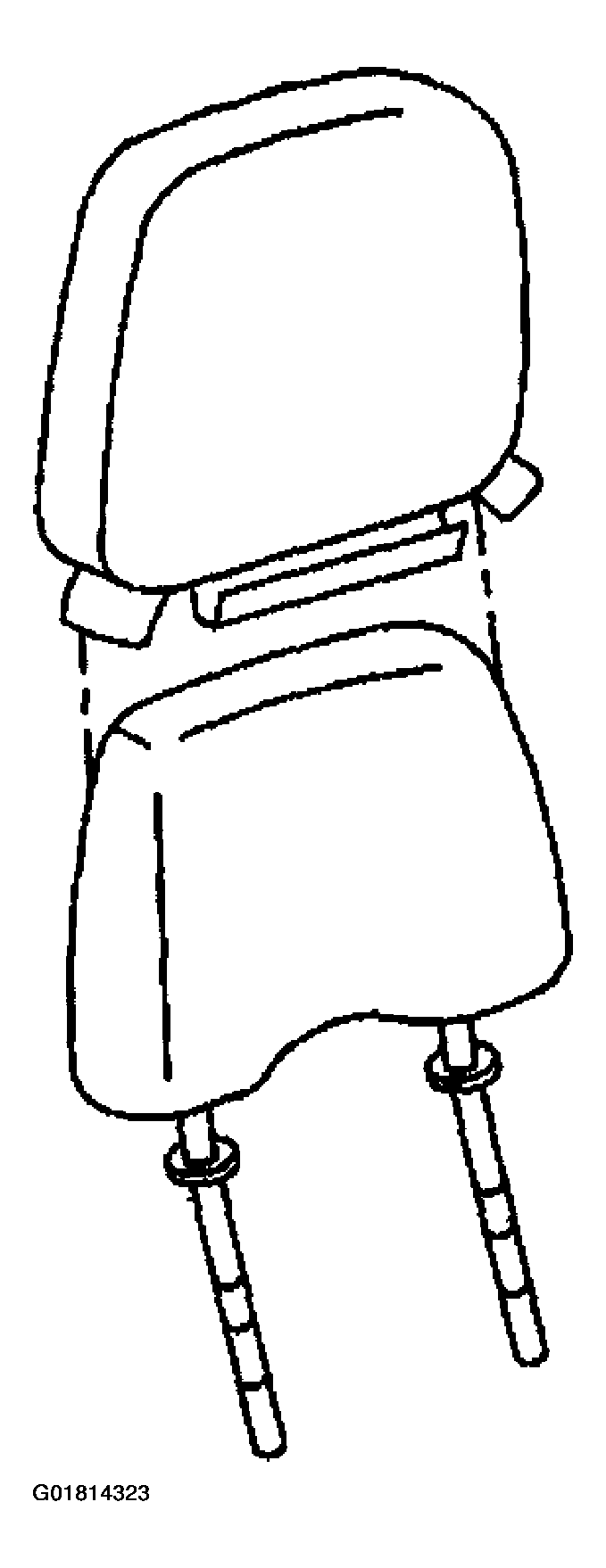

    Fig 1: Removing Head Restraint Cover
    G01814323Courtesy of GENERAL MOTORS CORP.
