Heated Seat Inoperative

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

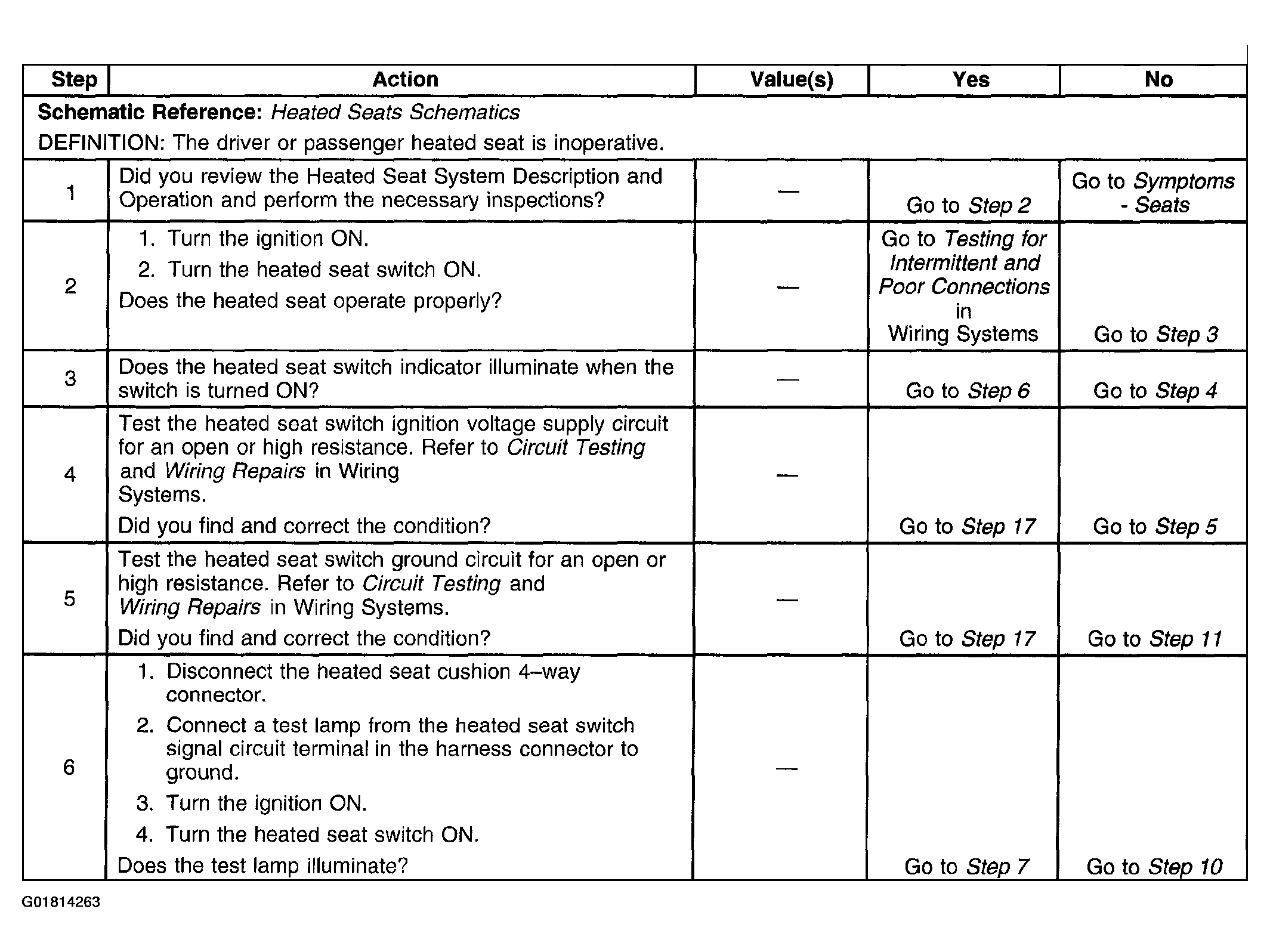

Fig 1: Heated Seat Inoperative (1 Of 2)
G01814263Courtesy of GENERAL MOTORS CORP.

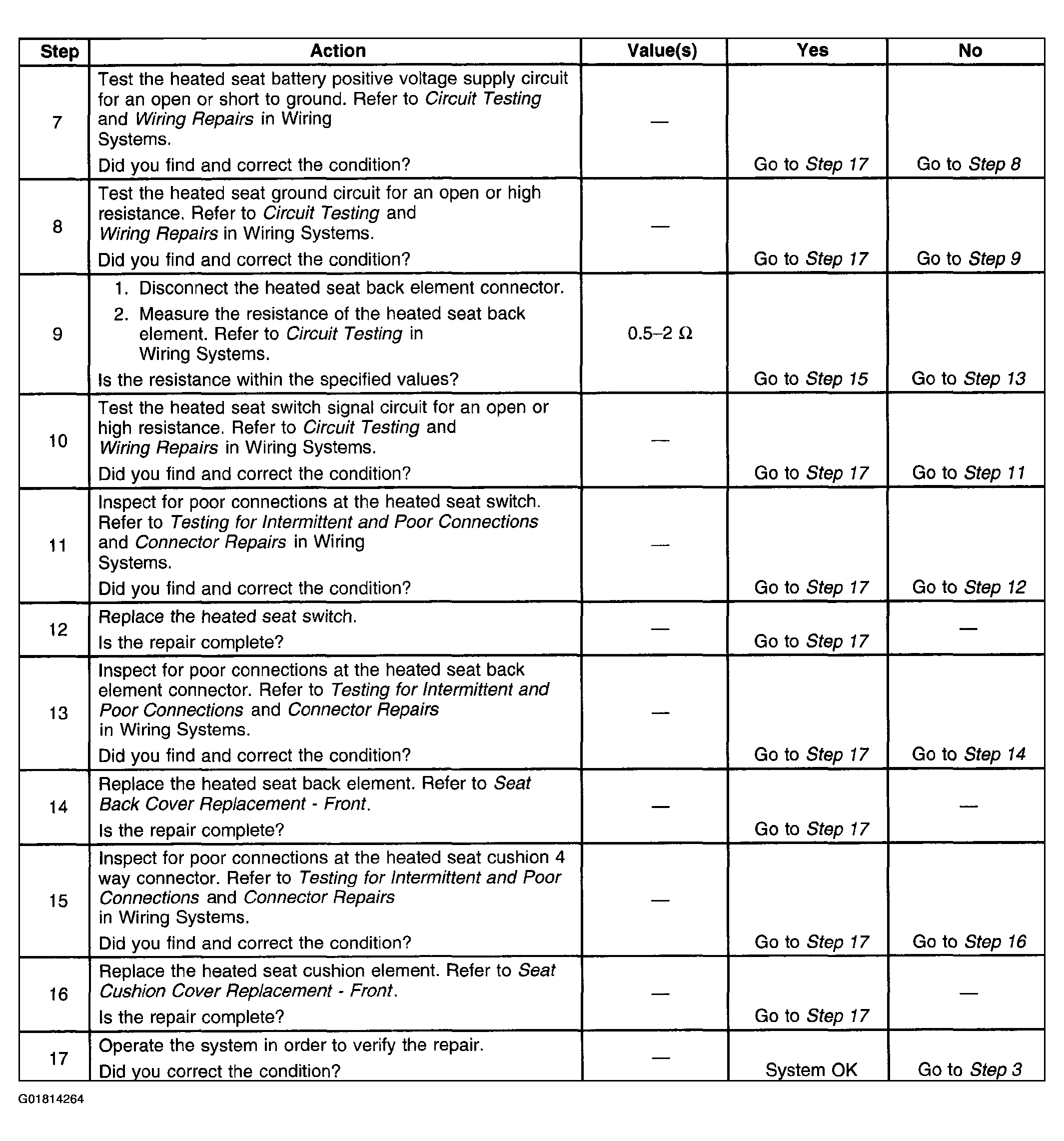

Fig 2: Heated Seat Inoperative (2 Of 2)
G01814264Courtesy of GENERAL MOTORS CORP.
