Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Verify that the DTC is current or history by monitoring the switch status for which the code is set.
  2. 3. Tests the memory select switch for an internal fault.

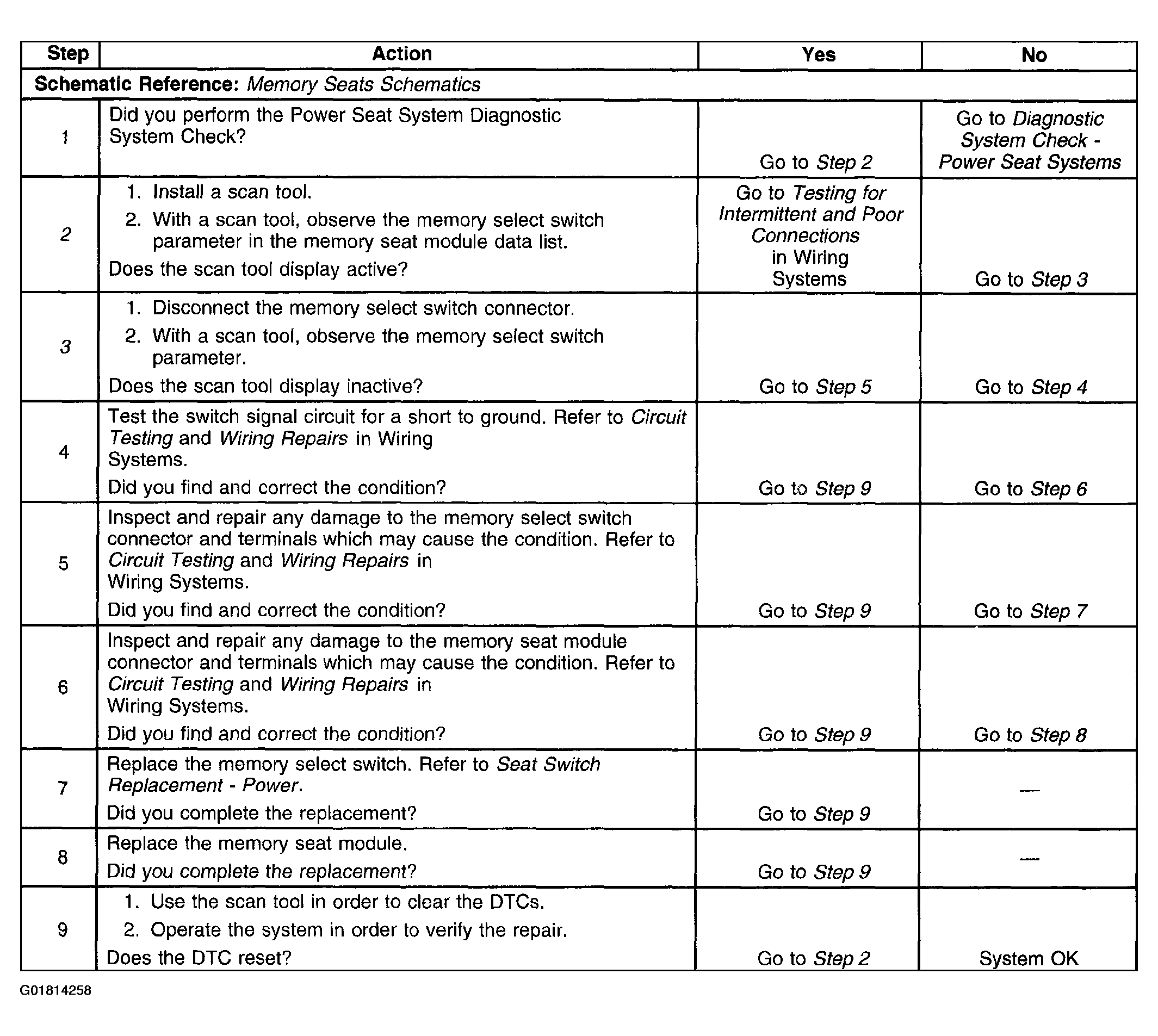

Fig 1: DTC B2755 Or B2760
G01814258Courtesy of GENERAL MOTORS CORP.
