DTC B1770, B1775, B1780, B1785, B1790, B1805, or B2415: Adjuster Motor Or Circuits

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

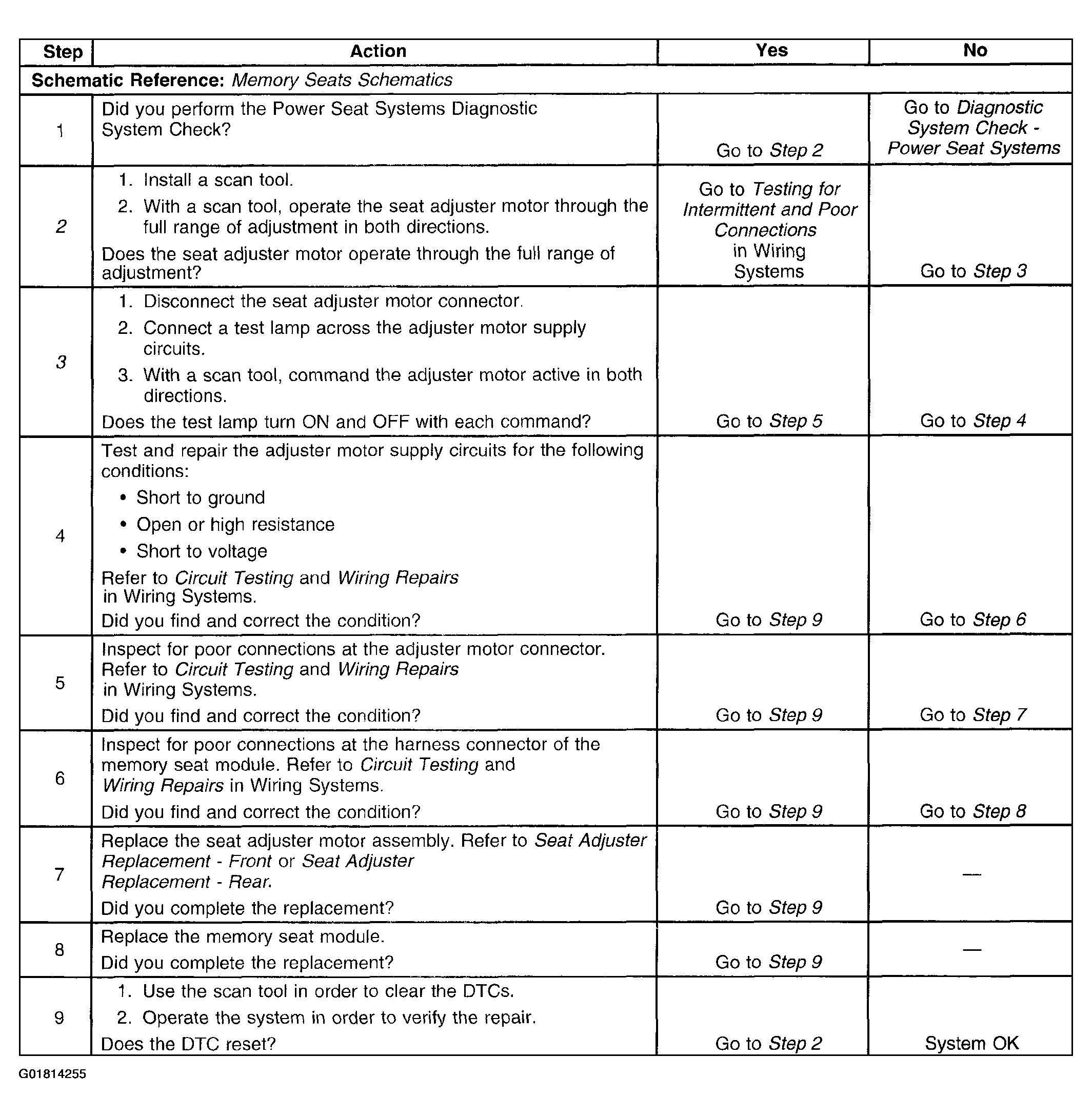

Fig 1: DTC B1770, B1775, B1780, B1785, B1790, B1805, Or B2415
G01814255Courtesy of GENERAL MOTORS CORP.
