Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2. Verify that the DTC is current or history by monitoring the switch status for which the code is set.
  2. 3. Tests the seat adjuster switch for an internal fault.

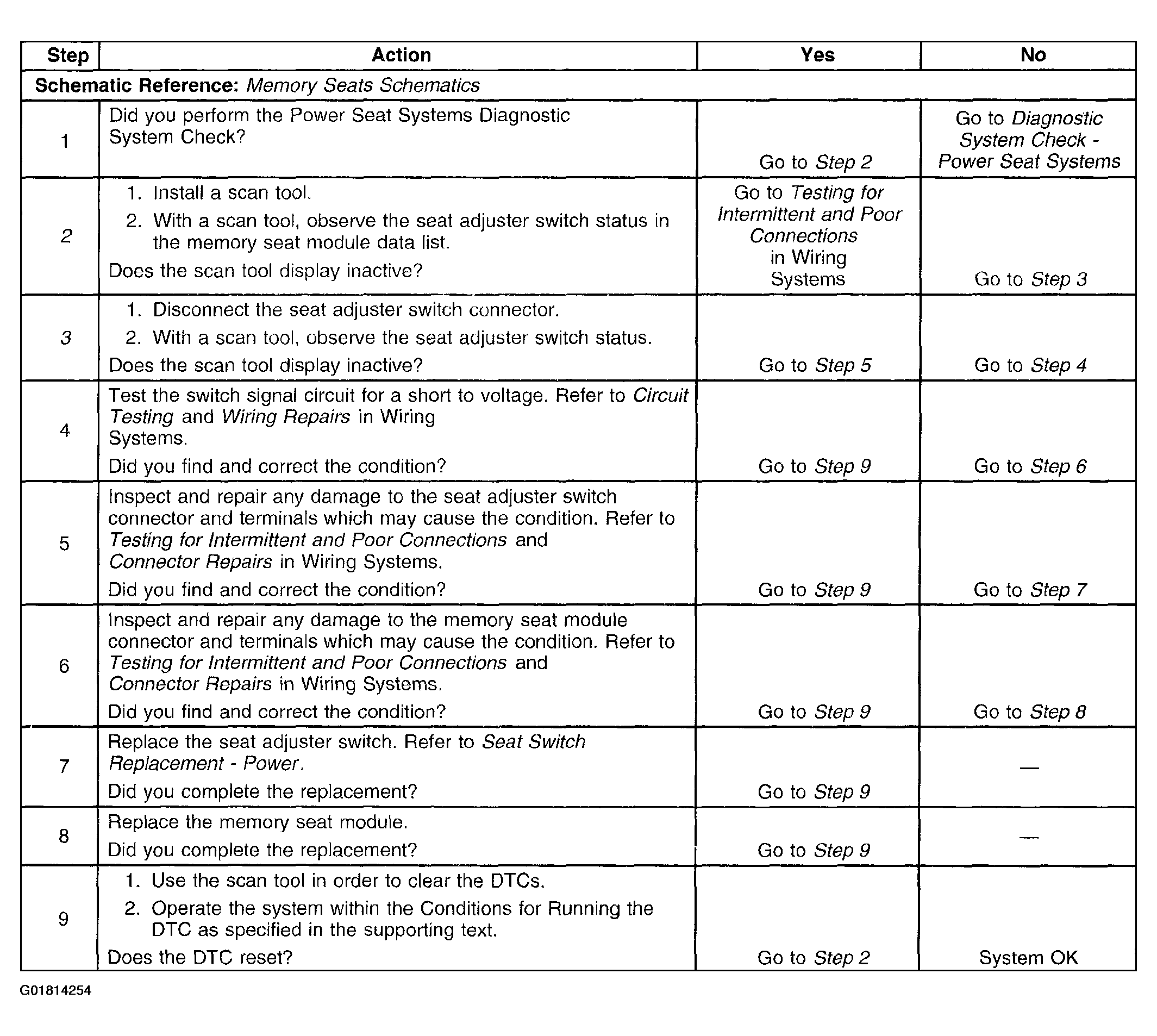

Fig 1: DTC B1735, B1740, B1745, B1750, B1755, B1760, B1815, Or B1820
G01814254Courtesy of GENERAL MOTORS CORP.
