Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Reference mark the propeller shaft at the transfer case flange.

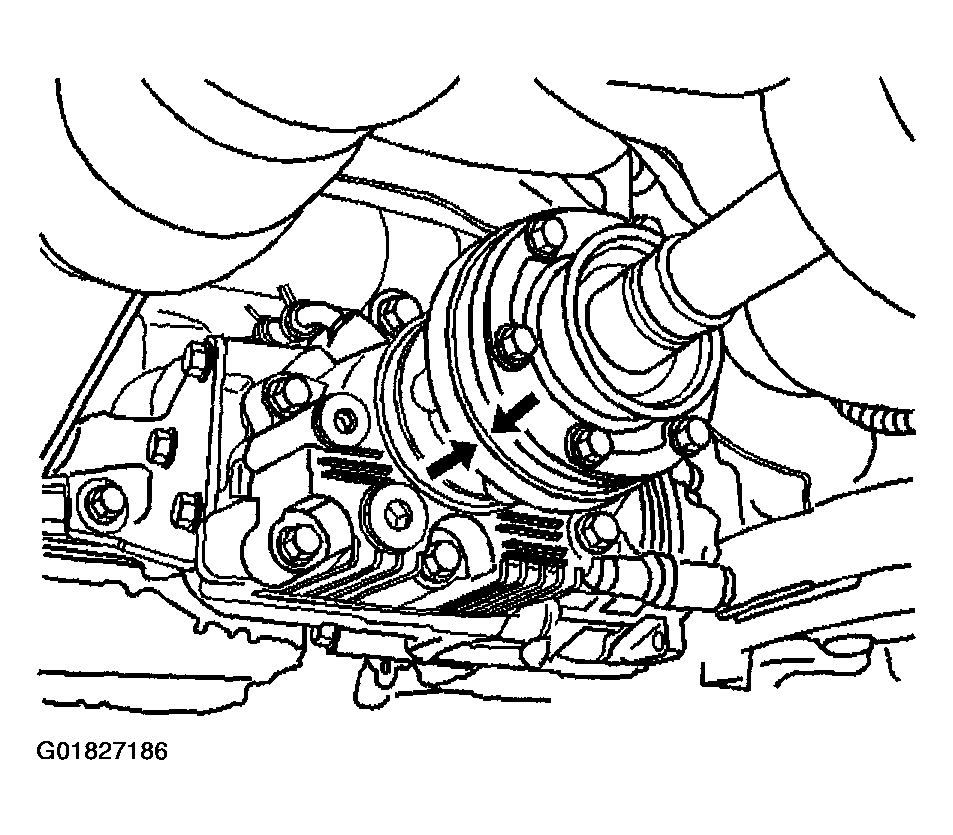

    Fig 1: Removing Propeller Shaft At Transfer Case Flange
    G01827186Courtesy of GENERAL MOTORS CORP.
  3. Remove the propeller shaft-to-transfer case flange bolts.

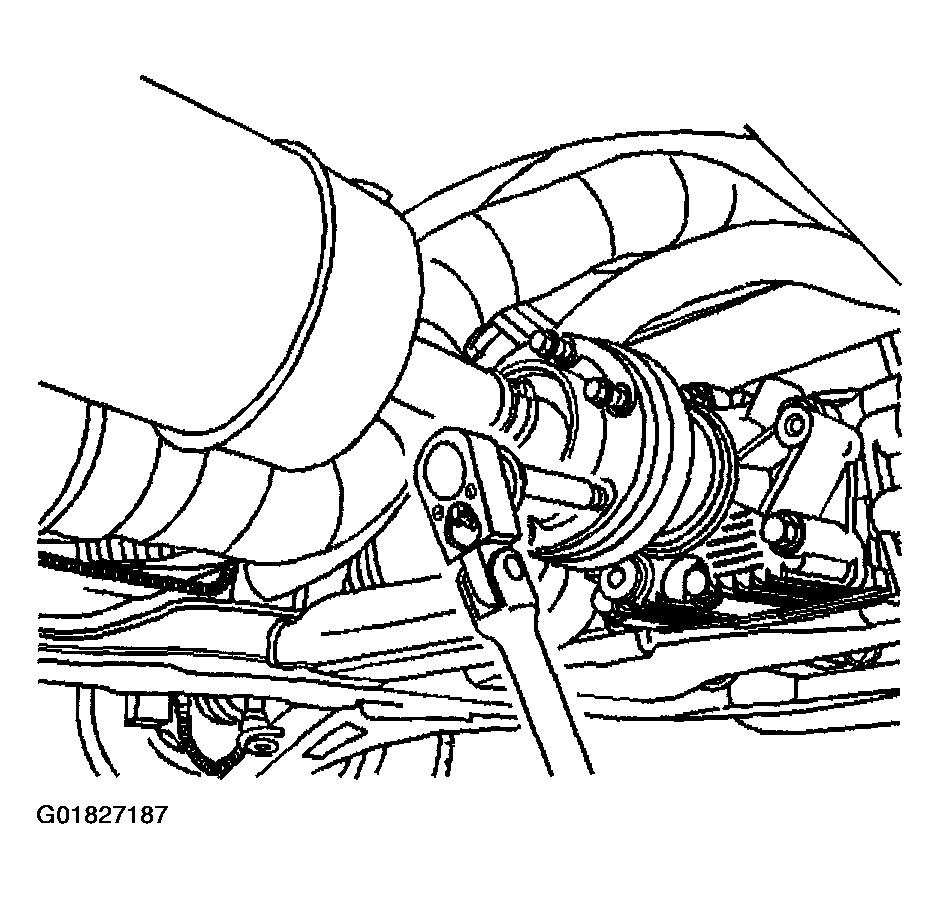

    Fig 2: Removing Propeller Shaft-To-Transfer Case Flange Bolts
    G01827187Courtesy of GENERAL MOTORS CORP.
  4. Reference mark the propeller shaft at the torque tube flange.

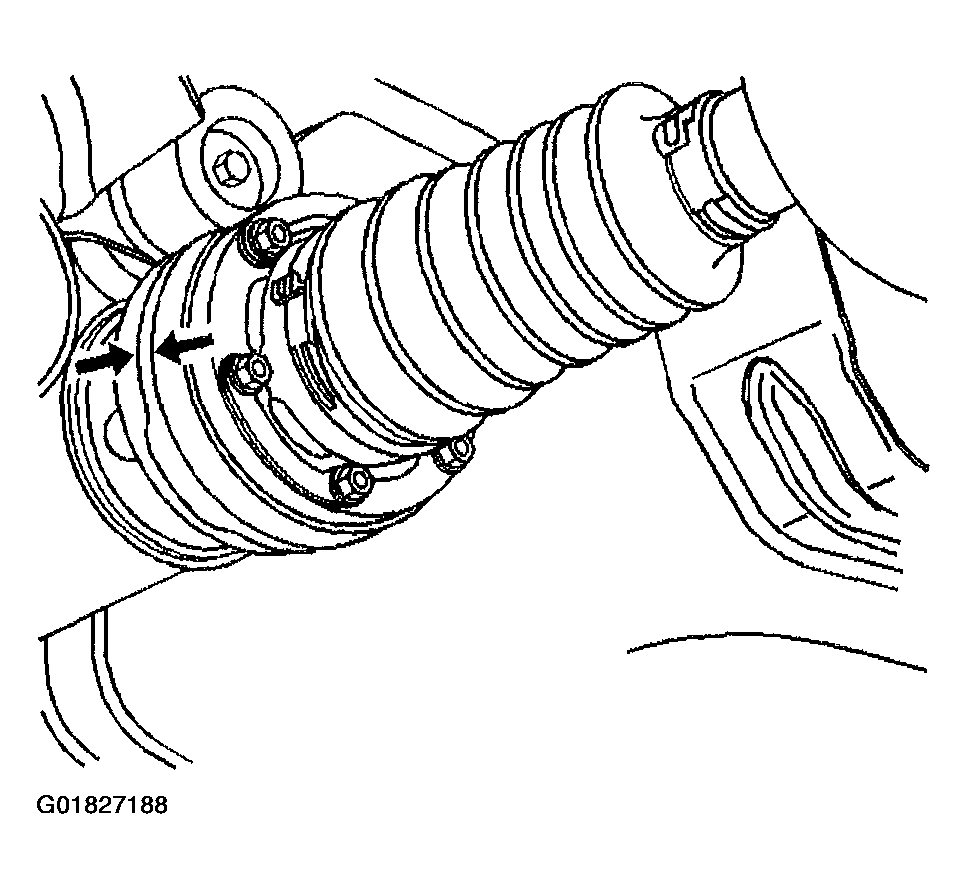

    Fig 3: Removing Propeller Shaft At Torque Tube Flange
    G01827188Courtesy of GENERAL MOTORS CORP.
  5. Remove the propeller shaft-to-torque tube flange bolts.
  6. Push the propeller shaft toward the rear of the vehicle.
  7. Remove the propeller shaft.

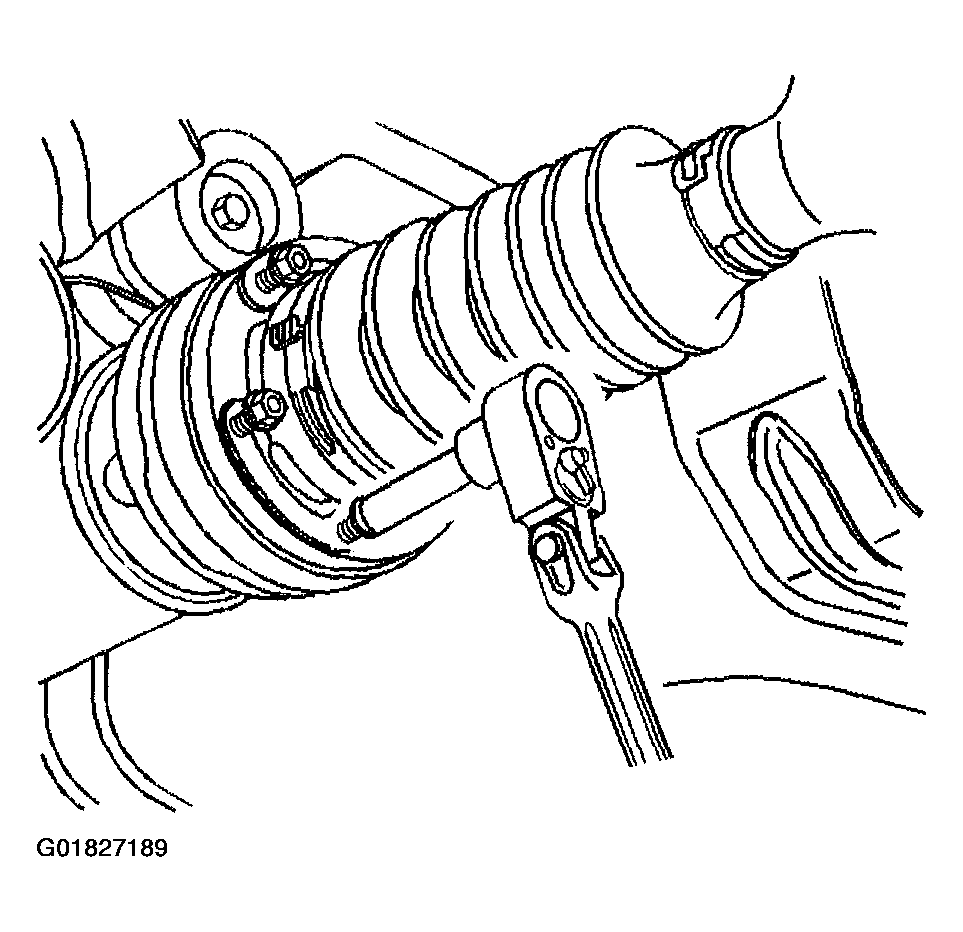

    Fig 4: Removing Propeller Shaft-To-Torque Tube Flange Bolts
    G01827189Courtesy of GENERAL MOTORS CORP.
