Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Move applicable front seat fully forward. Remove B-pillar trim. Remove Connector Position Assurance (CPA) clip. See Fig 1. Disconnect SIS connector. Remove SIS bolts. Remove SIS sensor.
  3. To install, reverse removal procedure. Tighten SIS bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

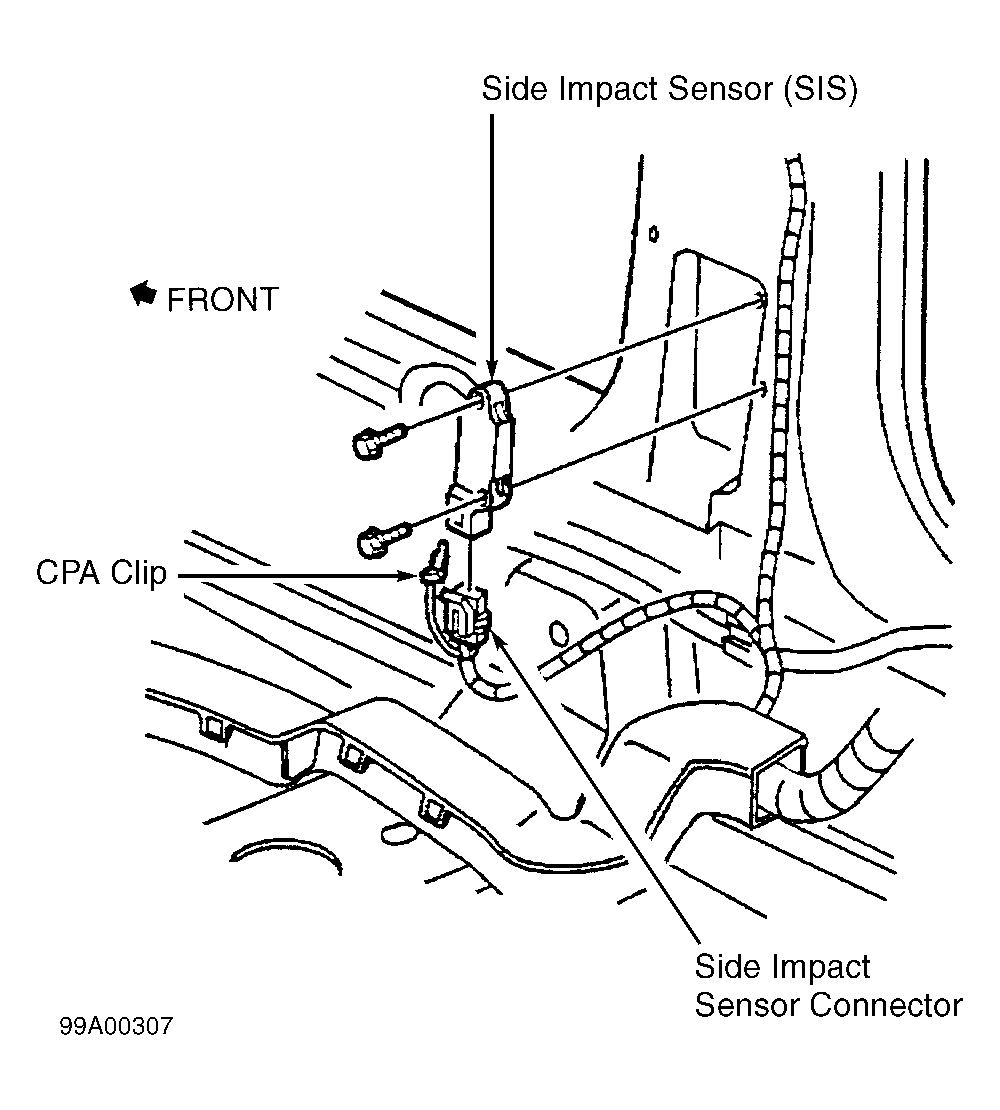

Fig 1: Identifying Side Impact Sensor (SIS)
G99A00307Courtesy of GENERAL MOTORS CORP.
