Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper IP. Refer to TRIM PAD REPLACEMENT - IP UPPER .
  2. Remove the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  3. Remove the HVAC passenger compartment air filters.
  4. Disconnect the recirculation actuator electrical connector.

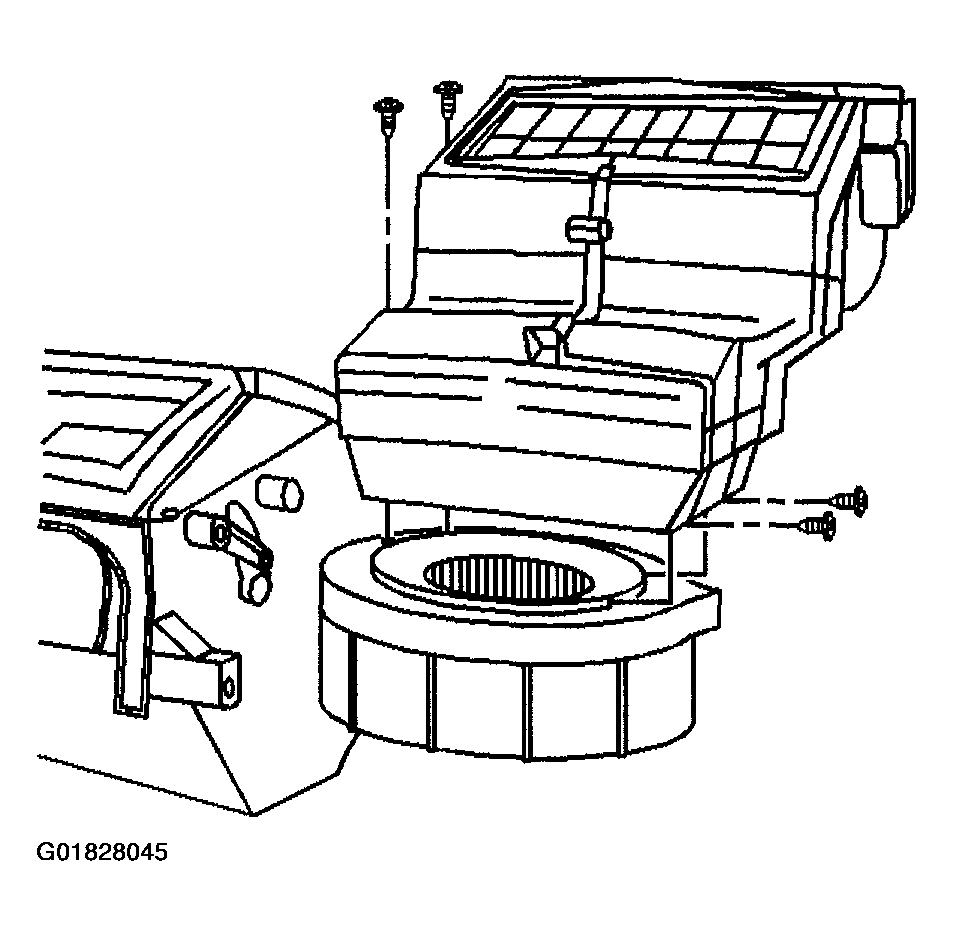

    5. Fig 1: Air Inlet Housing
    G01828045Courtesy of GENERAL MOTORS CORP.
  5. Remove the top air inlet housing retaining screws.
  6. Remove the side air inlet housing retaining screws.
  7. Remove the air inlet housing from the HVAC module assembly.

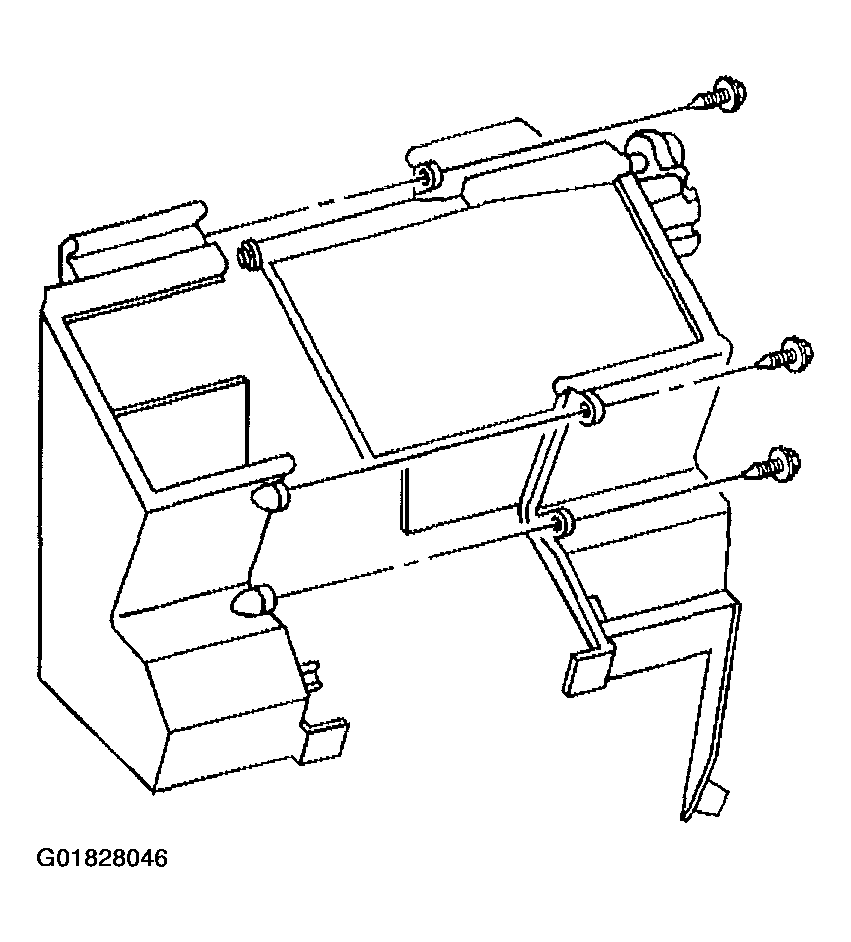

    8. Fig 2: Air Inlet Housing Halves
    G01828046Courtesy of GENERAL MOTORS CORP.
  8. Remove the screws retaining the air inlet housing halves.
  9. Separate the air inlet housing halves.
  10. Remove the recirculation door from the air inlet housing.

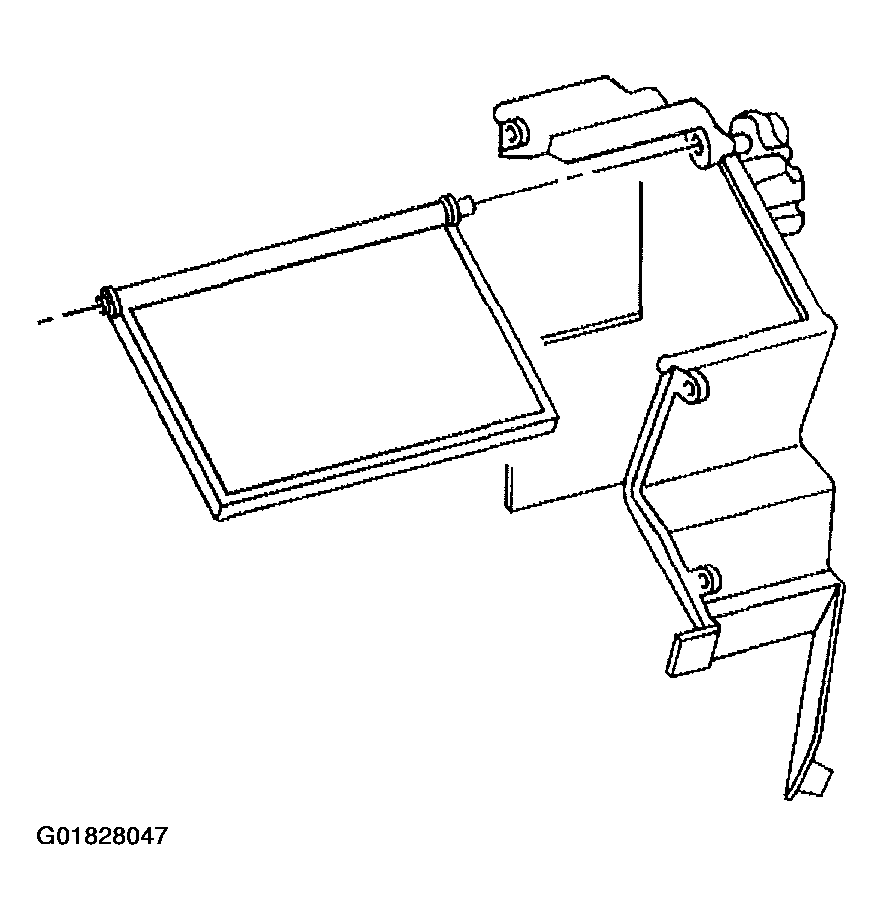

    Fig 3: Recirculation Door
    G01828047Courtesy of GENERAL MOTORS CORP.
