Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door to the air inlet housing.

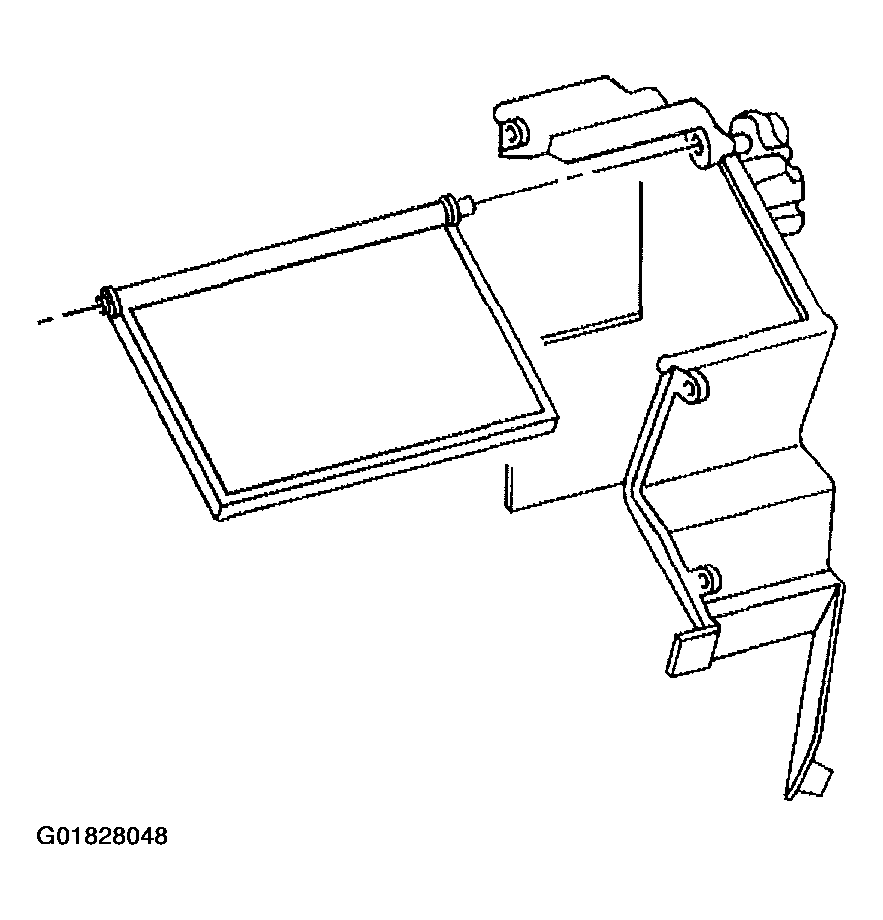

    Fig 1: Recirculation Door
    G01828048Courtesy of GENERAL MOTORS CORP.

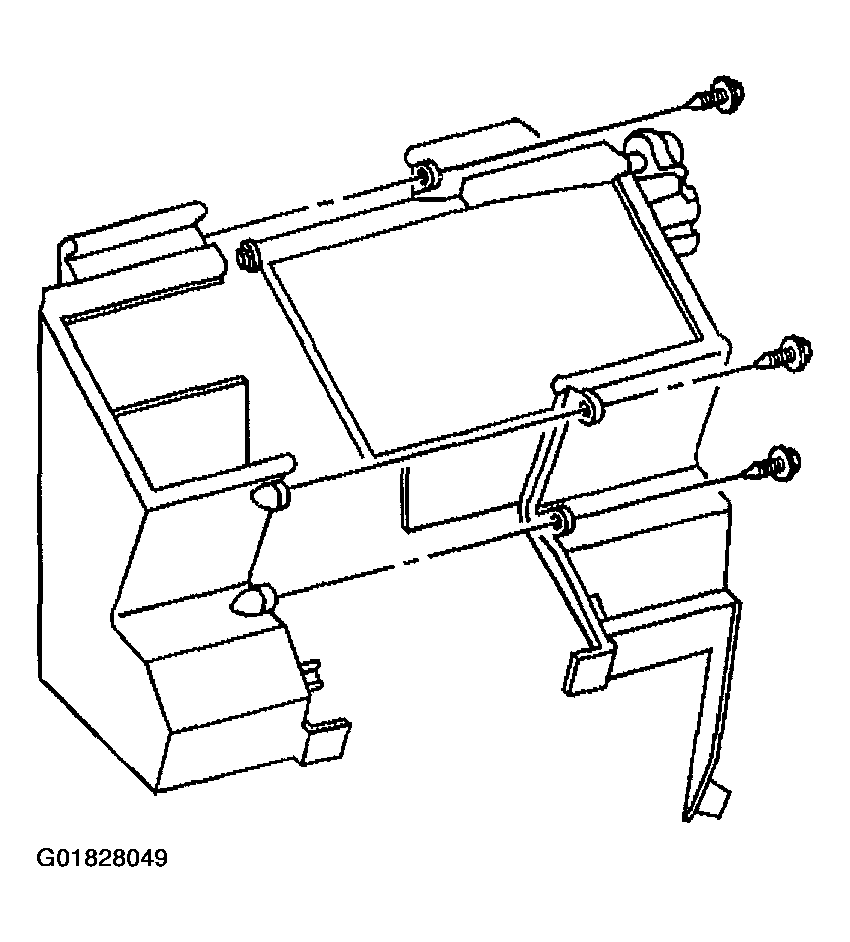

    2. Fig 2: Air Inlet Housing Halves
    G01828049Courtesy of GENERAL MOTORS CORP.
  2. Align the recirculation door with the other half of the air inlet housing.
  3. Connect the air inlet housing halves.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws retaining the air inlet housing halves.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

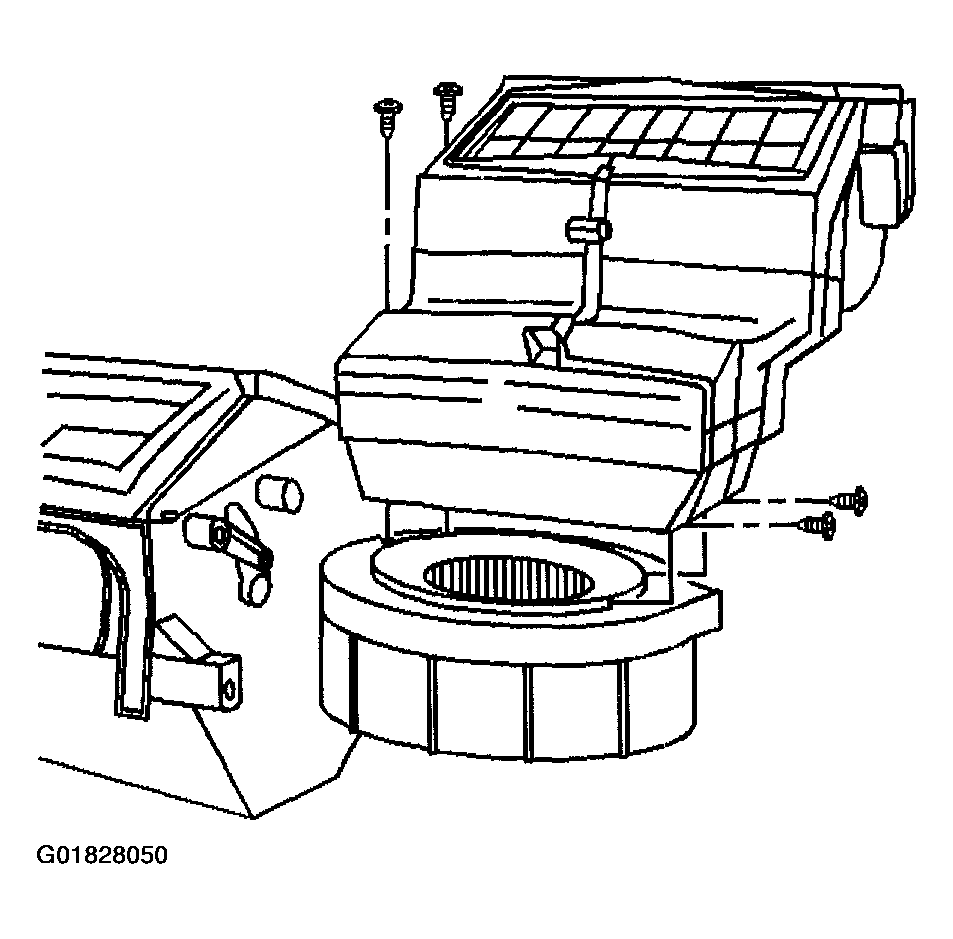

    5. Fig 3: Air Inlet Housing
    G01828050Courtesy of GENERAL MOTORS CORP.
  5. Install the air inlet housing to the HVAC module assembly.
  6. Install the air inlet housing screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  7. Connect the recirculation actuator electrical connector.
  8. Install the HVAC passenger compartment air filters.
  9. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  10. Install the upper IP. Refer to TRIM PAD REPLACEMENT - IP UPPER .
