Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

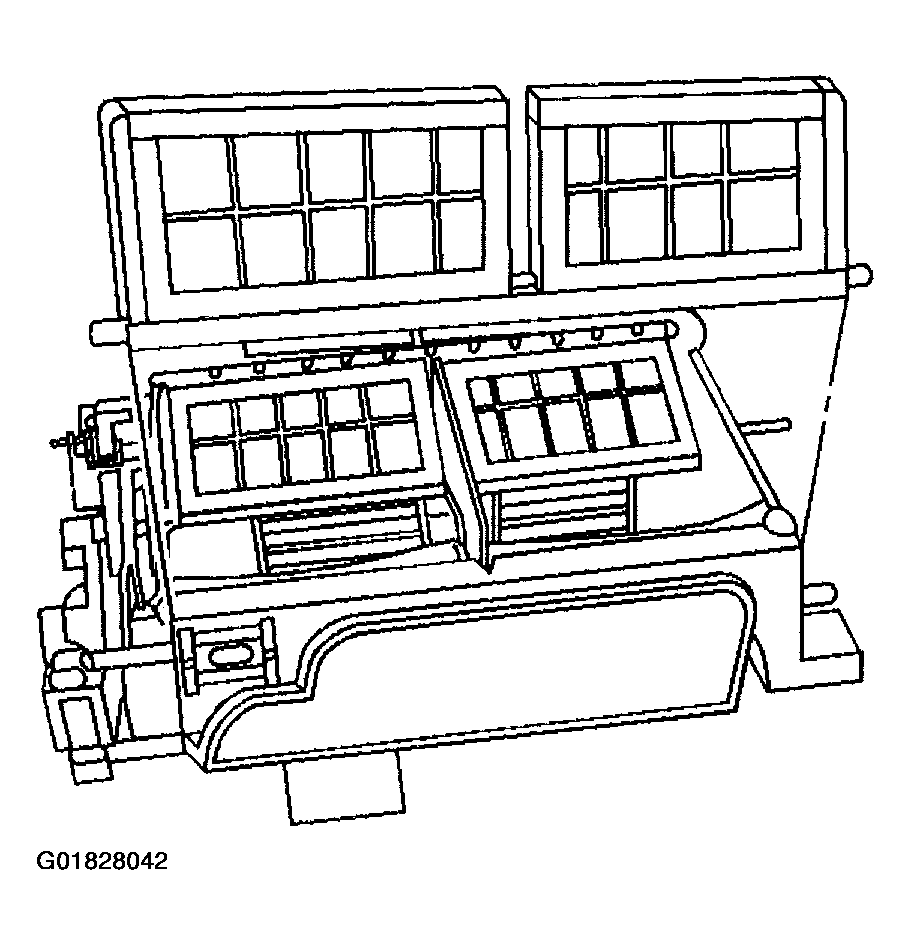

Fig 1: Mode Door

Courtesy of GENERAL MOTORS CORP.

Install the mode door levers to the mode door.
Important: Align the slot in the left mode door lever with the pin on the mode door main lever. Align the pin on the right mode door lever with the slot on the heater door lever.
Install the mode door.
Install the air distribution cover.
NOTE: Refer to FASTENER NOTICE .
Install the air distribution cover retaining screws.
Tighten

Tighten the screws to 0.9 N.m (8 lb in).
Install the air temperature door and defroster door levers.

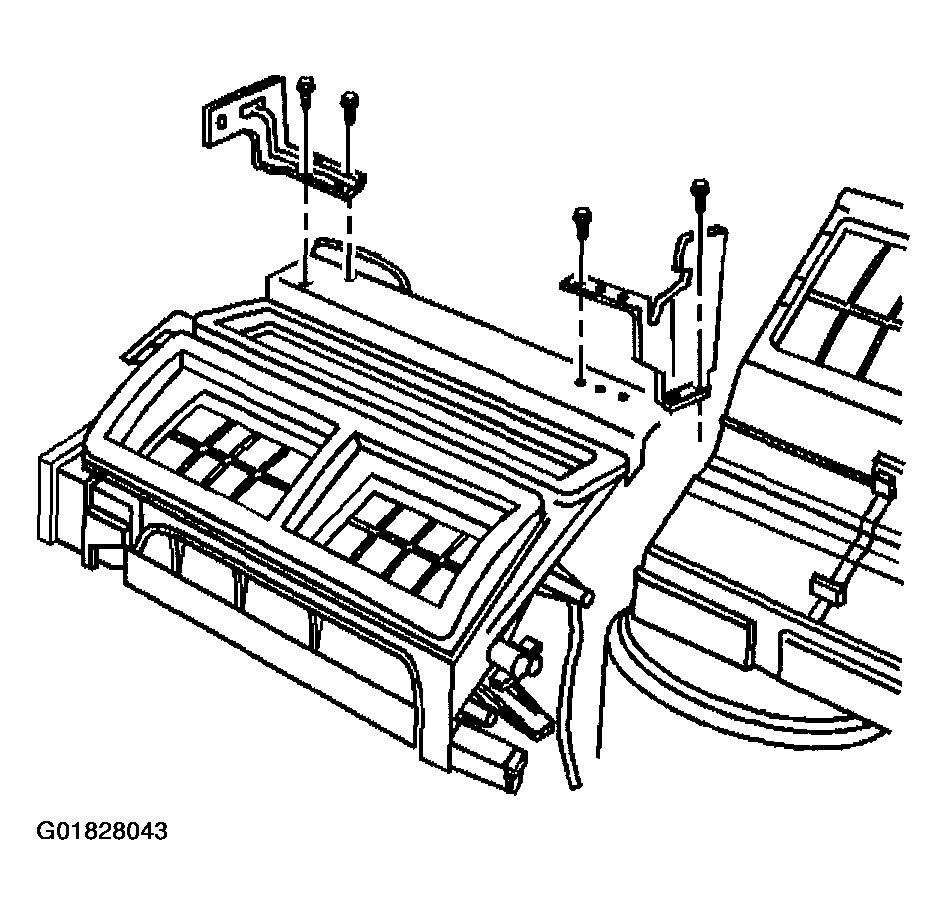

Fig 2: HVAC Module Mounting Brackets

Courtesy of GENERAL MOTORS CORP.

Install the right HVAC module mounting bracket to the HVAC module assembly.
Install the right HVAC module mounting bracket screws.
Tighten

Tighten the screws to 1.8 N.m (16 lb in).
Install the left HVAC module mounting bracket to the HVAC module assembly.
Install the left HVAC module mounting bracket screws.
Tighten

Tighten the screws to 1.8 N.m (16 lb in).

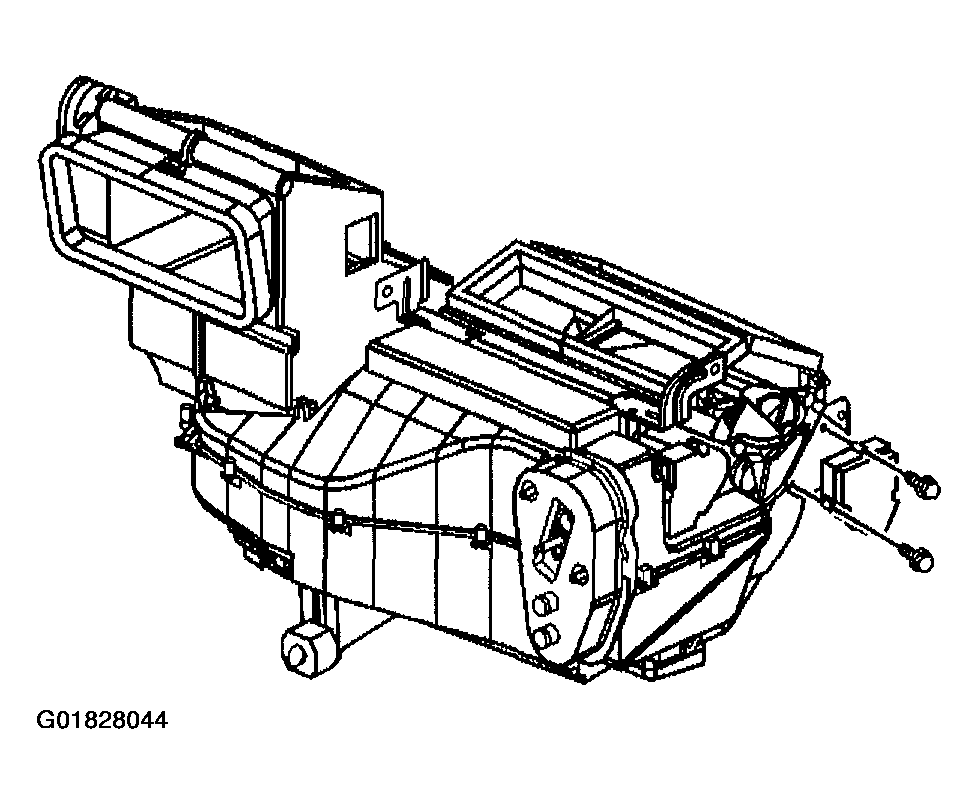

Fig 3: Mode Actuator

Courtesy of GENERAL MOTORS CORP.

Install the mode actuator.
Install the mode actuator screws.
Tighten

Tighten the screws to 0.9 N.m (8 lb in).
Connect the mode actuator electrical connector.
Install the IP carrier. Refer to IP CARRIER REPLACEMENT .
If necessary, adjust the mode door linkage. Refer to Mode Linkage Adjustment .
