Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

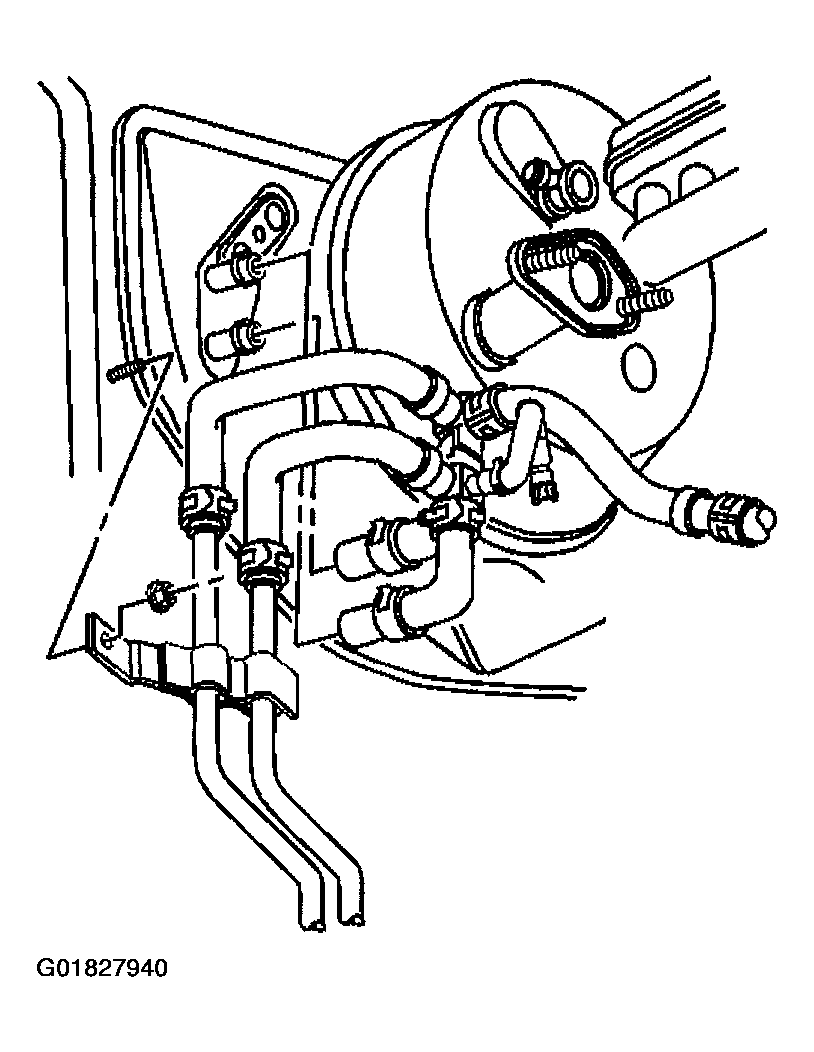

    Fig 1: Heater Hoses At Heater Core
    G01827940Courtesy of GENERAL MOTORS CORP.
  1. Install the outlet heater hose.
  2. Connect the outlet heater hose to the auxiliary heater outlet line.
  3. Reposition the outlet heater hose clamp at the auxiliary heater outlet line using the J 38185.
  4. Connect the outlet heater hose to the heater core.
  5. Reposition the outlet heater hose clamp at the heater core using the J 38185.
    6. Fig 2: Heater Hoses
    G01827941Courtesy of GENERAL MOTORS CORP.
  6. Connect the outlet heater hose (3) to the outlet pipe (4).
  7. Install the transmission fluid filler tube. Refer to FILLER TUBE AND SEAL REPLACEMENT .
  8. Connect the throttle and cruise control cables to the TBI mounting bracket.
  9. Install the air cleaner cover and intake tube. Refer to Air Cleaner Intake Duct Replacement on page 6-786  in Engine Controls - 3.4L.
  10. Connect the vacuum hose to the brake booster.
  11. Install the left wiper arm linkage.
    NOTE: Refer to FASTENER NOTICE .
  12. Install the left wiper arm linkage nuts.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  13. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
