Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

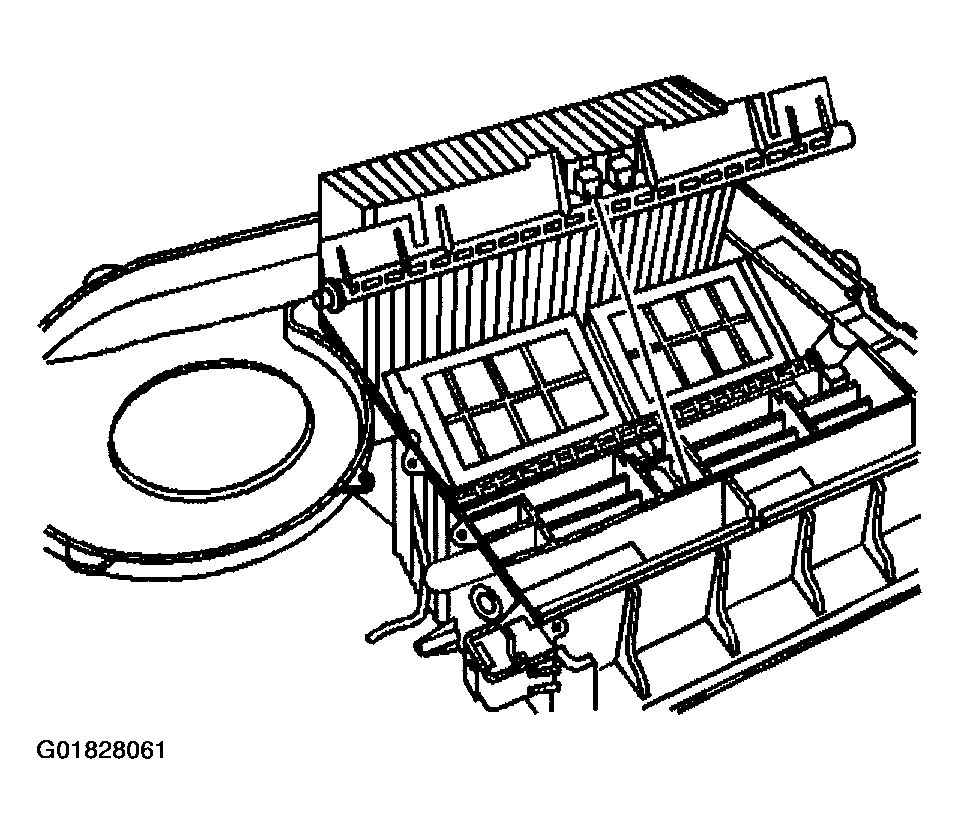

    Fig 1: Heater Door
    G01828061Courtesy of GENERAL MOTORS CORP.
  1. Install the heater door.

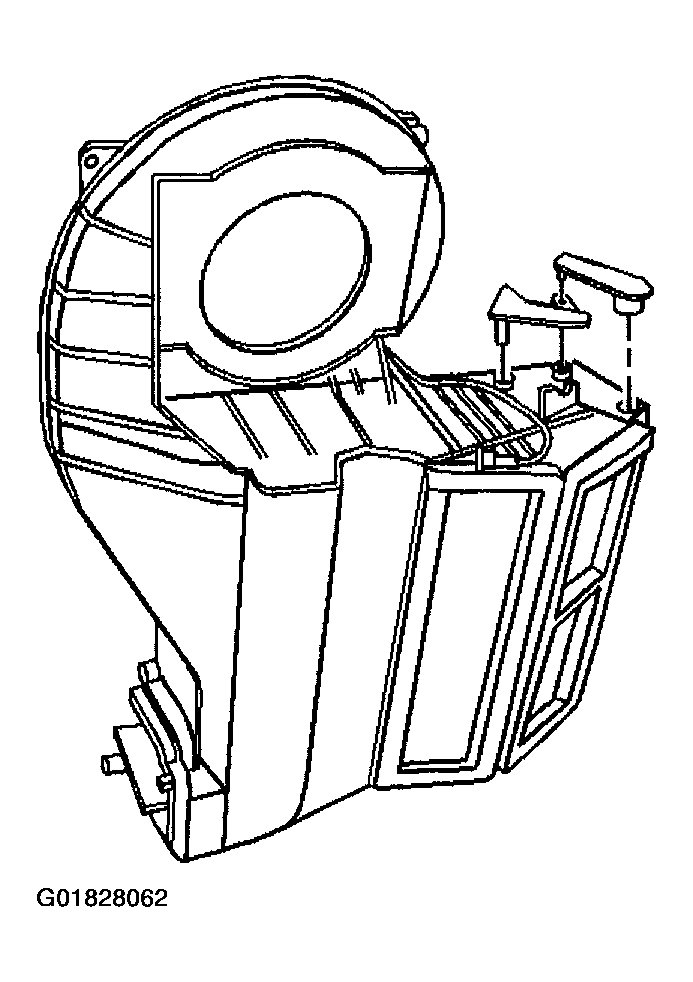

    2. Fig 2: Right-Hand Mode Door Lever
    G01828062Courtesy of GENERAL MOTORS CORP.
  2. Install the heater door lever.

    Important:  Align the slot in the heater door lever with the pin on the mode door lever.

  3. Install the right-hand mode door lever.
    4. Fig 3: HVAC Module Halves
    G01828063Courtesy of GENERAL MOTORS CORP.
  4. Align and install the upper HVAC module case to the lower HVAC module case.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the HVAC module lower mounting screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  6. Install the lower HVAC module assembly screw.

    Tighten

    Tighten the screw to 0.9 N.m (8 lb in).

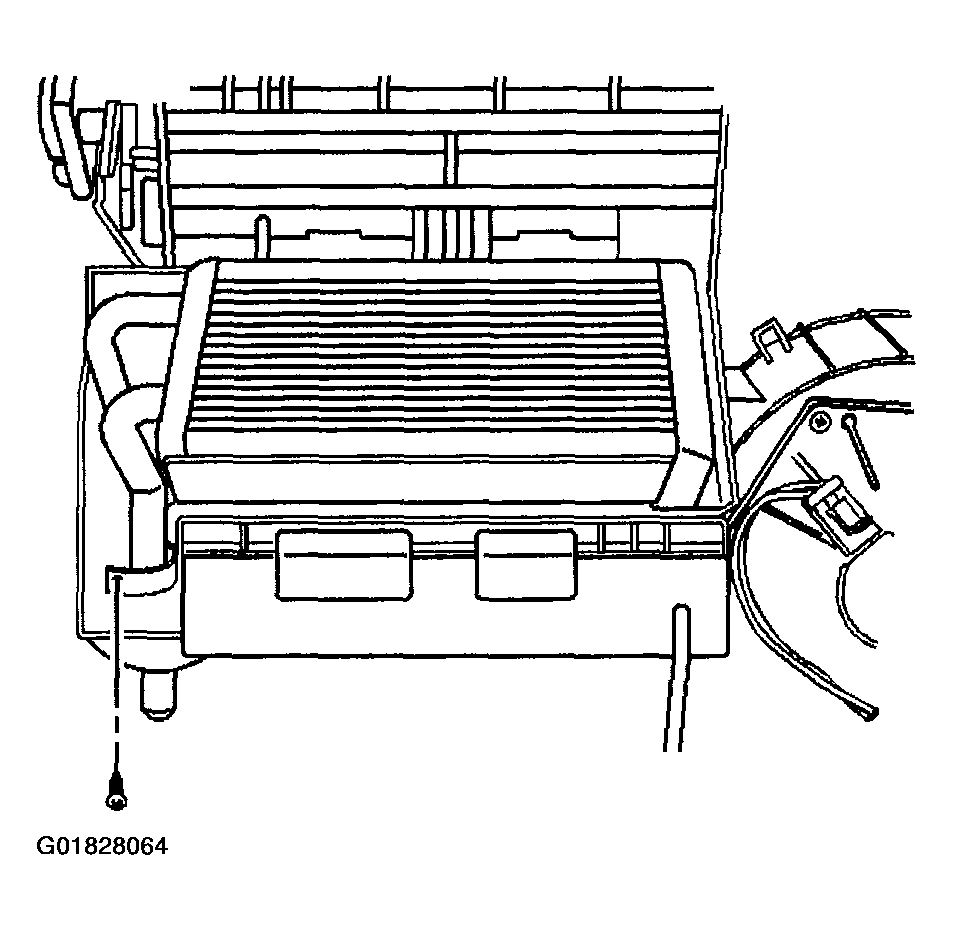

    7. Fig 4: Heater Core
    G01828064Courtesy of GENERAL MOTORS CORP.
  7. Install the heater core.
  8. Install the heater core pipe screw.

    Tighten

    Tighten the screw to 0.9 N.m (8 lb in).

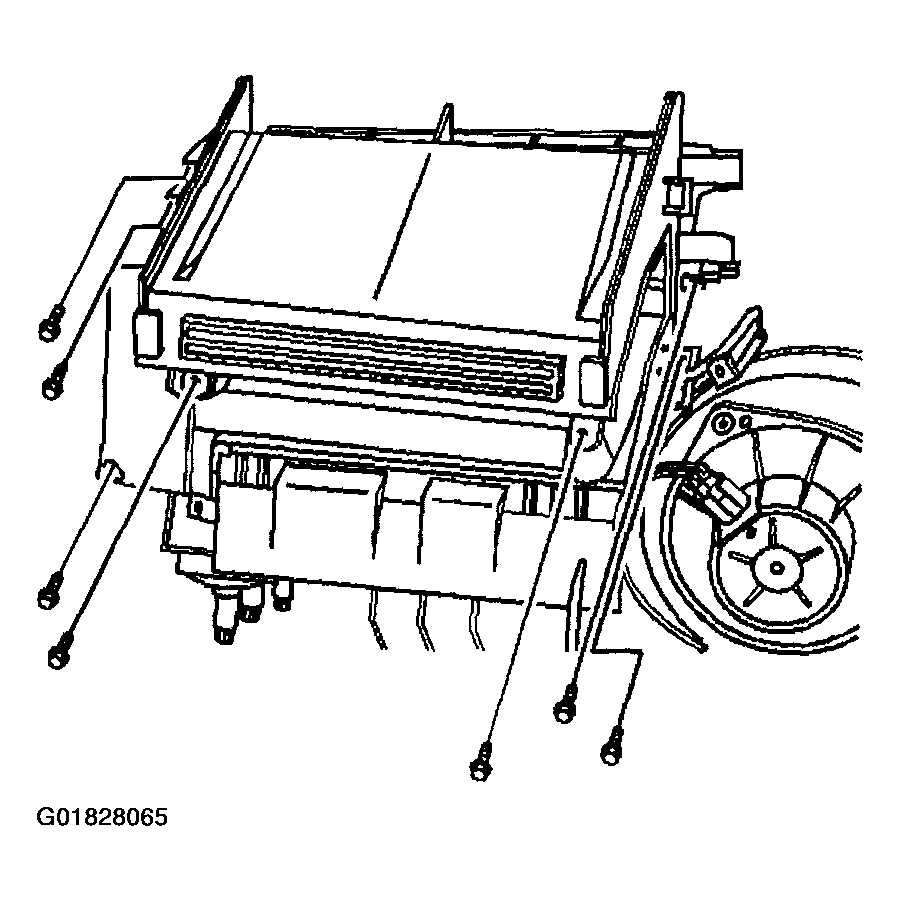

    9. Fig 5: Heater Core Cover
    G01828065Courtesy of GENERAL MOTORS CORP.
  9. Install the heater core cover.
  10. Install the heater core cover screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

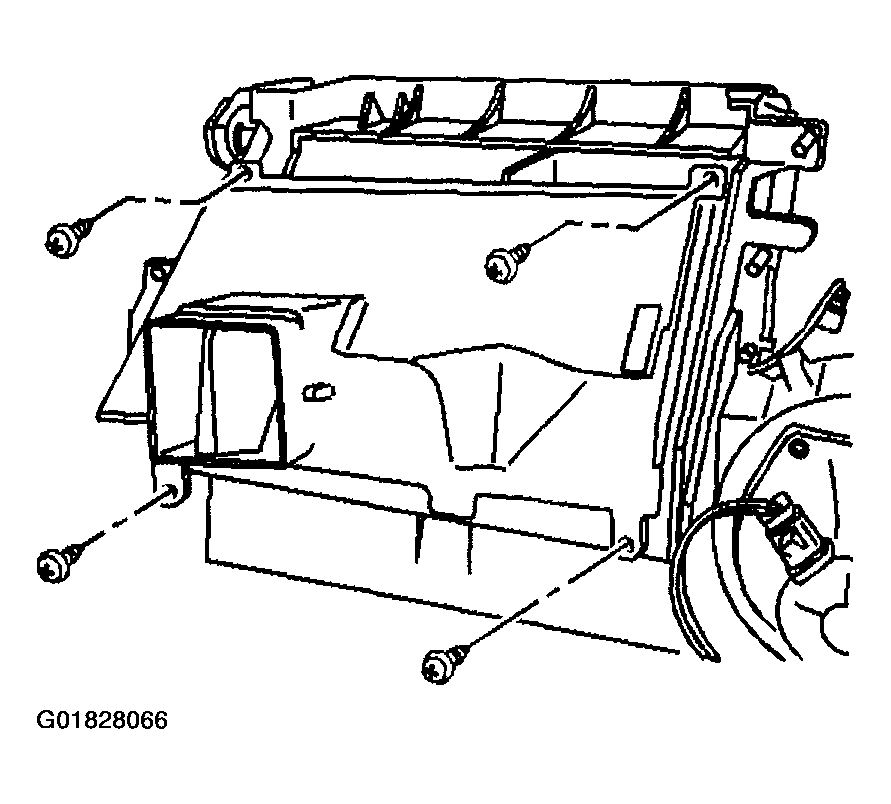

    11. Fig 6: Heater Outlet Duct
    G01828066Courtesy of GENERAL MOTORS CORP.
  11. Install the heater outlet duct.
  12. Install the heater outlet duct retaining screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

    13. Fig 7: HVAC Module Assembly To Dash Panel Sound Barrier Seal
    G01828067Courtesy of GENERAL MOTORS CORP.
  13. Install the HVAC module assembly to dash panel sound barrier seal.
  14. Install the HVAC module upper retaining screw.

    Tighten

    Tighten the screw to 0.9 N.m (8 lb in).

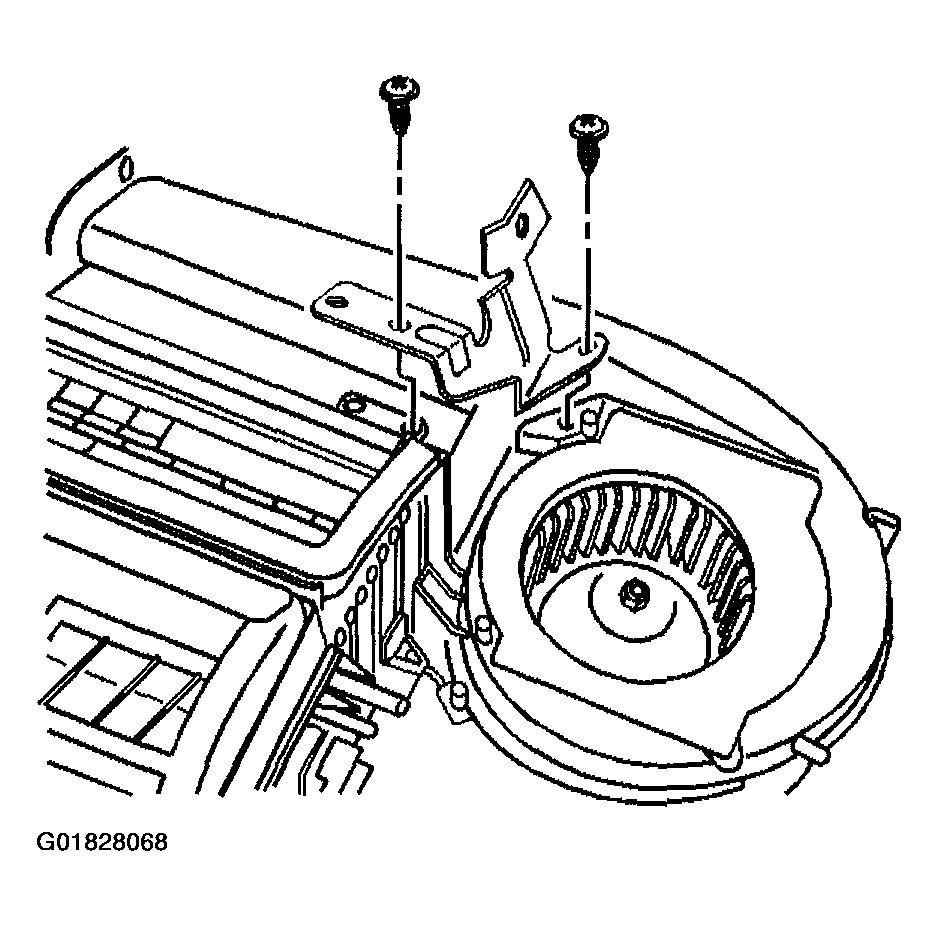

    15. Fig 8: HVAC Module Assembly Mounting Bracket
    G01828068Courtesy of GENERAL MOTORS CORP.
  15. Install the right HVAC module mounting bracket to the HVAC module assembly.
  16. Install the right HVAC module mounting bracket screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

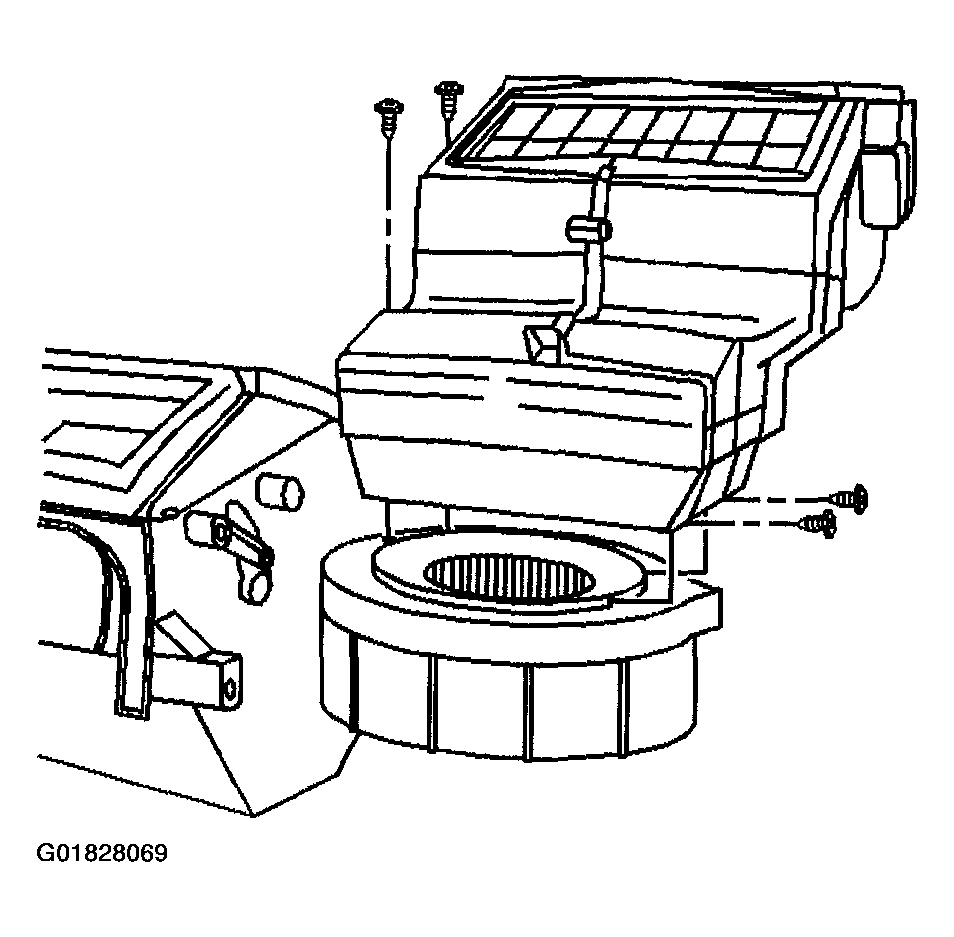

    17. Fig 9: Air Inlet Housing
    G01828069Courtesy of GENERAL MOTORS CORP.
  17. Install the air inlet housing.
  18. Install the air inlet housing retaining screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

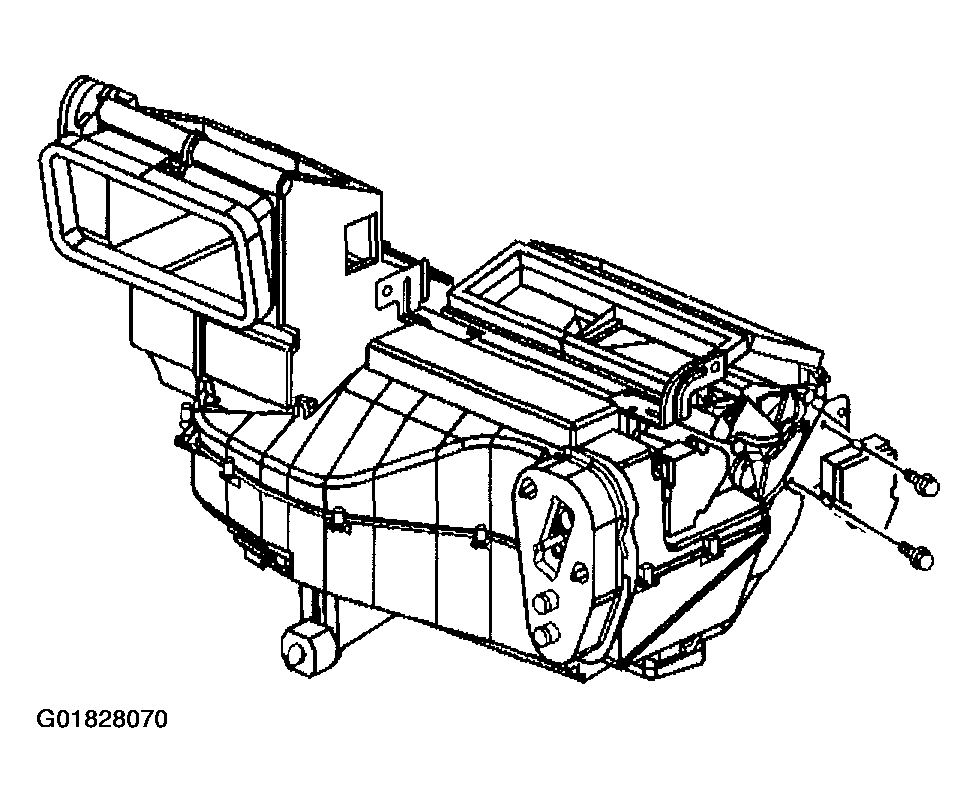

    19. Fig 10: Mode Actuator
    G01828070Courtesy of GENERAL MOTORS CORP.
  19. Install the mode actuator.
  20. Install the mode actuator screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  21. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
  22. If necessary, adjust the mode door linkage. Refer to Mode Linkage Adjustment .
