Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator core. Refer to Evaporator Core Replacement .

    Important:  Carefully remove the evaporator temperature sensor using needle nose pliers.

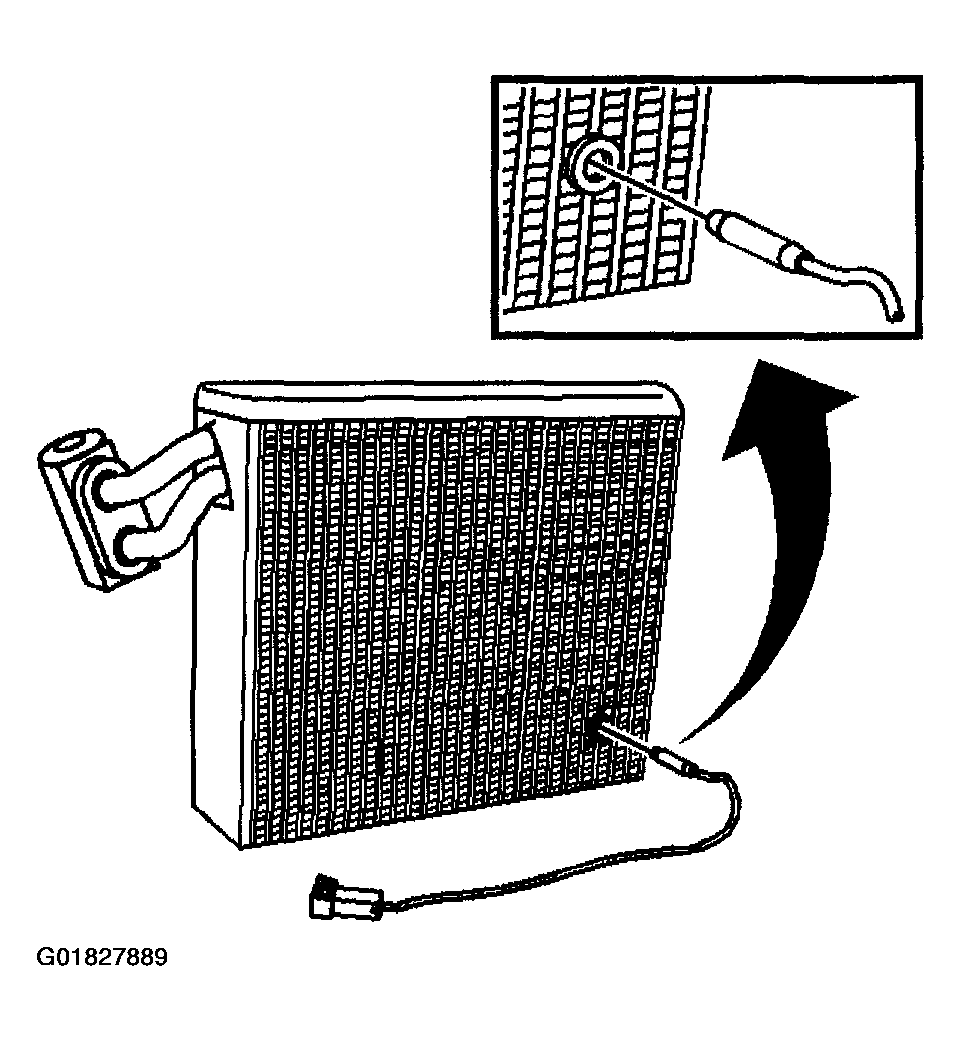

    2. Fig 1: Evaporator Temperature Sensor
    G01827889Courtesy of GENERAL MOTORS CORP.
  2. Remove the evaporator temperature sensor from the evaporator core.
