Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

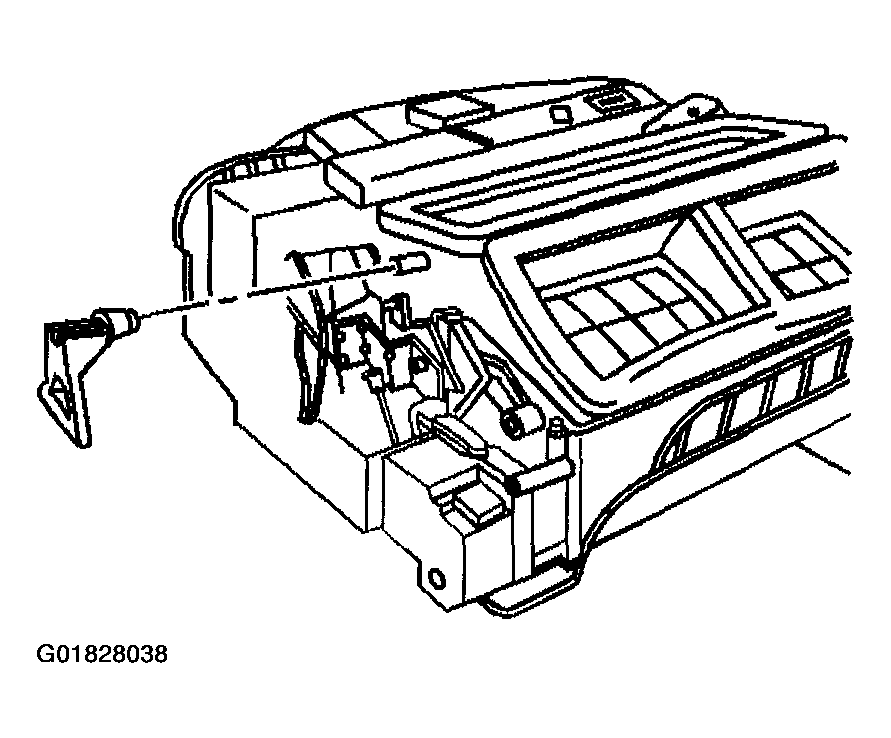

    Fig 1: Defroster Door
    G01828038Courtesy of GENERAL MOTORS CORP.
  1. Install the defroster door.

    Important:  Align the slot in the defroster door lever with the pin on the mode door main lever.

  2. Install the defroster door lever.
  3. Install the IP carrier. Refer to IP CARRIER REPLACEMENT .
