Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

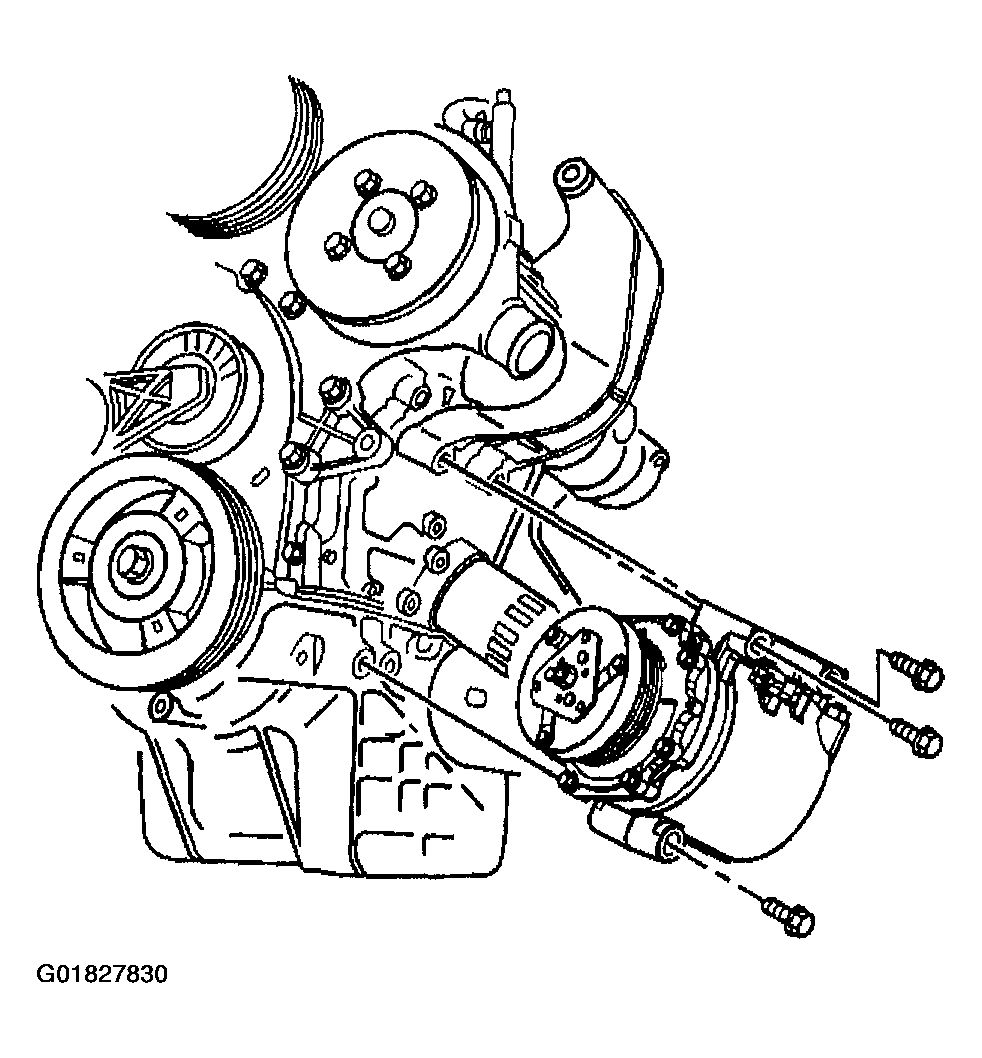

    Fig 1: Compressor
    G01827830Courtesy of GENERAL MOTORS CORP.
  1. Install the compressor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the compressor mounting bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

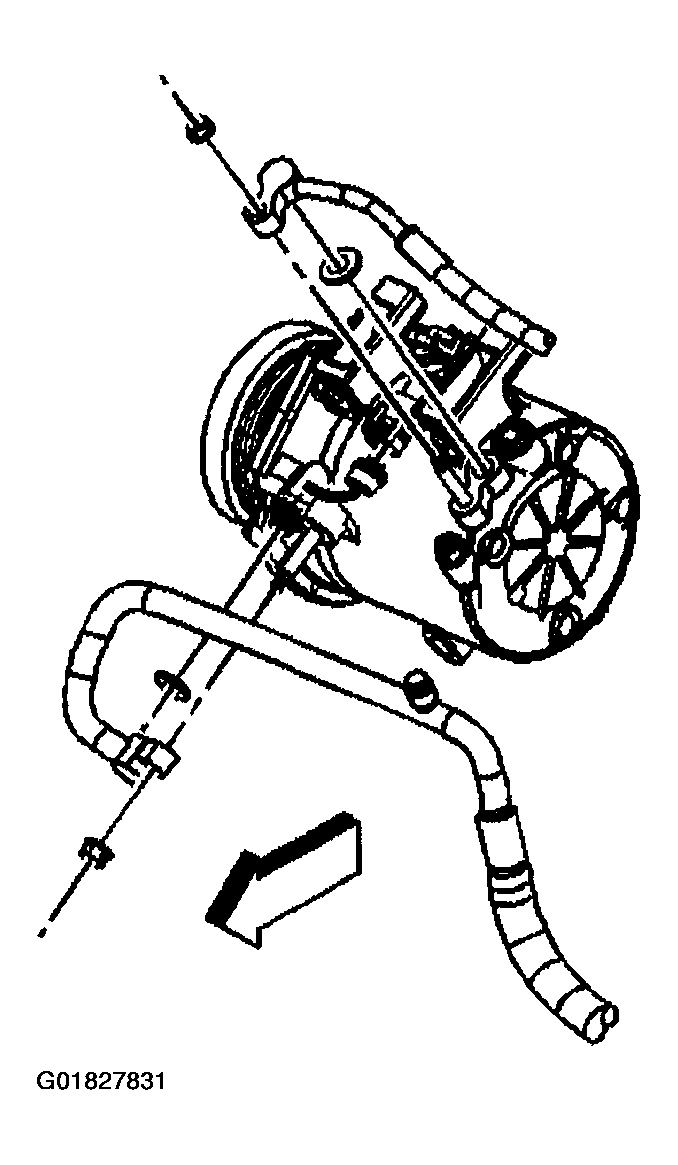

    3. Fig 2: Suction & Discharge Hoses
    G01827831Courtesy of GENERAL MOTORS CORP.
  3. Remove cap or tape from the discharge hose.
  4. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the A/C refrigerant hoses and the A/C refrigerant component.

    Important:  Flat washer type seals do not require lubrication.

  5. Install the sealing washer to the discharge hose.
  6. Connect the discharge hose to the compressor.
  7. Install the discharge hose to compressor nut.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  8. Remove cap or tape from the suction hose.
  9. Install the sealing washer to the suction hose.
  10. Connect the suction hose to the compressor.
  11. Install the suction hose to compressor nut.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

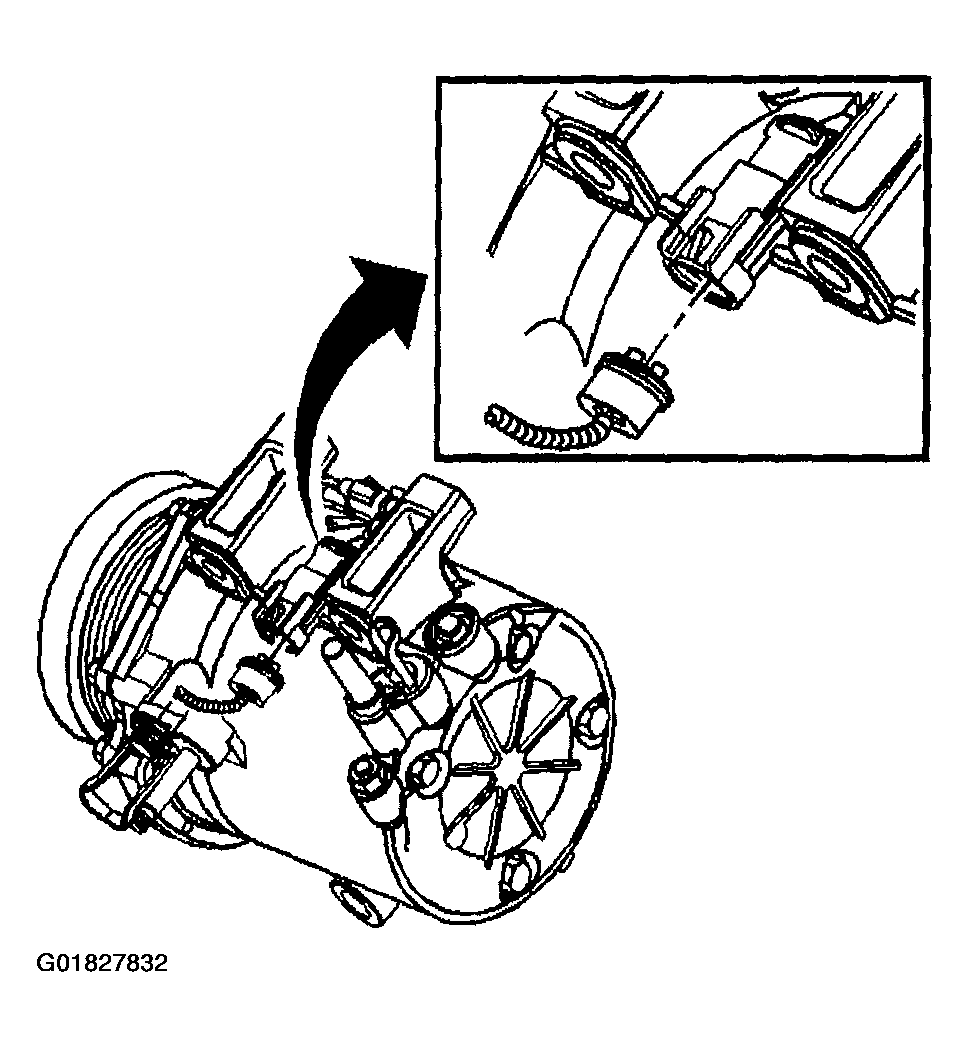

    12. Fig 3: Electrical Connectors
    G01827832Courtesy of GENERAL MOTORS CORP.
  12. Connect the electrical connector to the compressor.
  13. Connect the engine harness electrical connector.

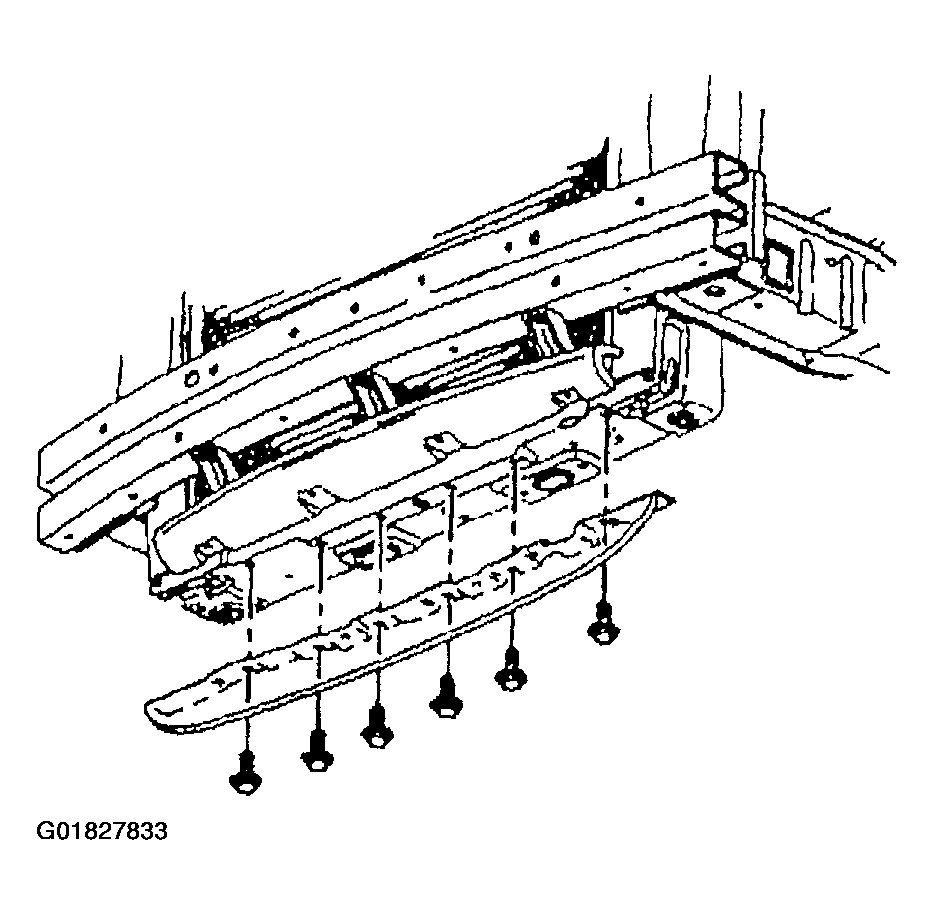

    14. Fig 4: Air Baffle
    G01827833Courtesy of GENERAL MOTORS CORP.
  14. Install the air baffle.
  15. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

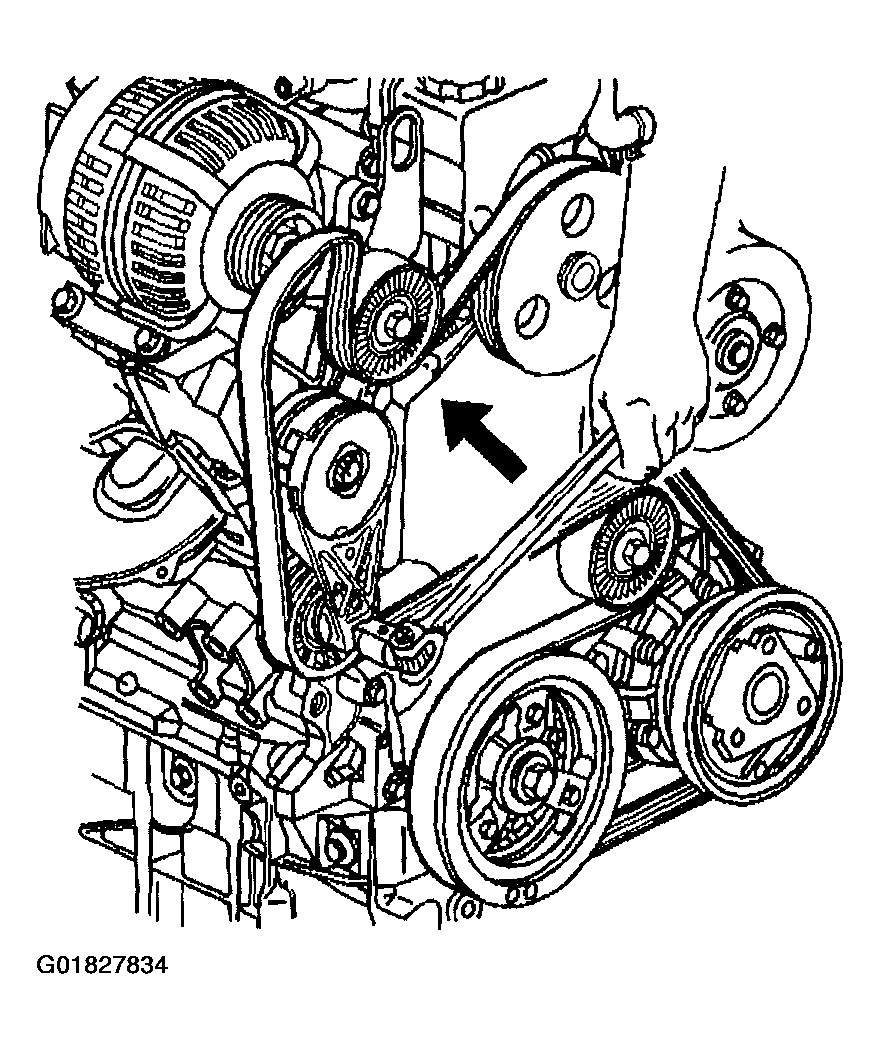

    16. Fig 5: Releasing Drive Belt Tensioner
    G01827834Courtesy of GENERAL MOTORS CORP.
  16. Release the drive belt tensioner.

    Install the drive belt on to the compressor pulley.

  17. Install the RH engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  18. Lower the vehicle.
  19. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  20. Leak test the fittings of the component using J 39400-A.
