Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

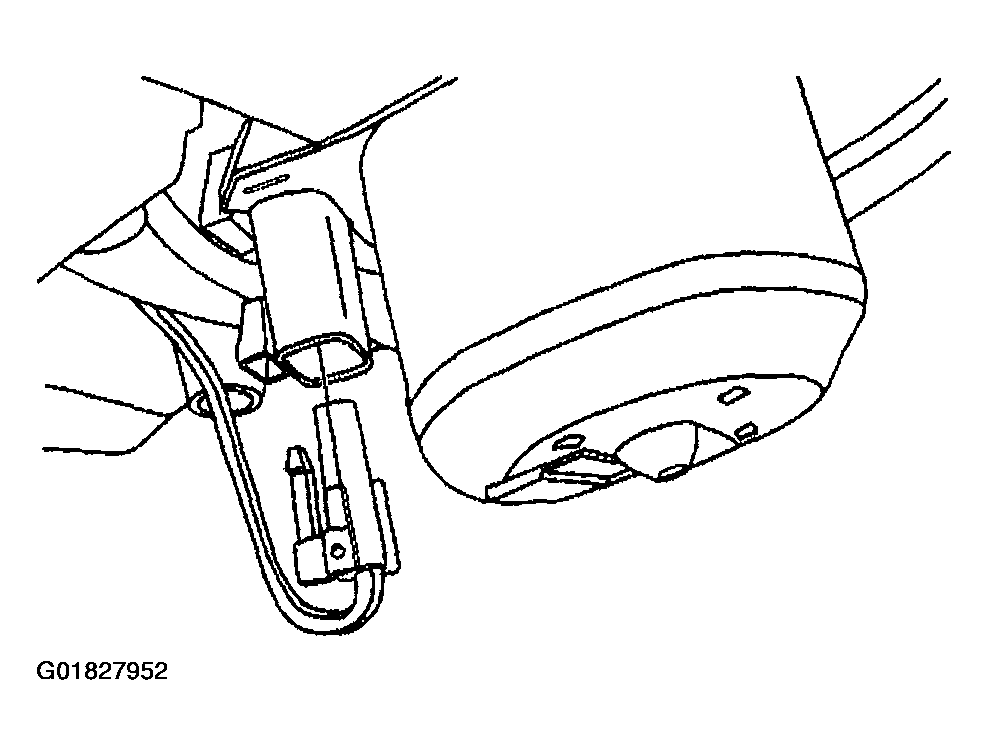

    2. Fig 1: Blower Motor Electrical Connector
    G01827952Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the blower motor.
  3. Remove the blower motor mounting screws.
  4. Remove the blower motor from the HVAC module assembly.
  5. Disconnect the electrical connector from the blower motor resistor.

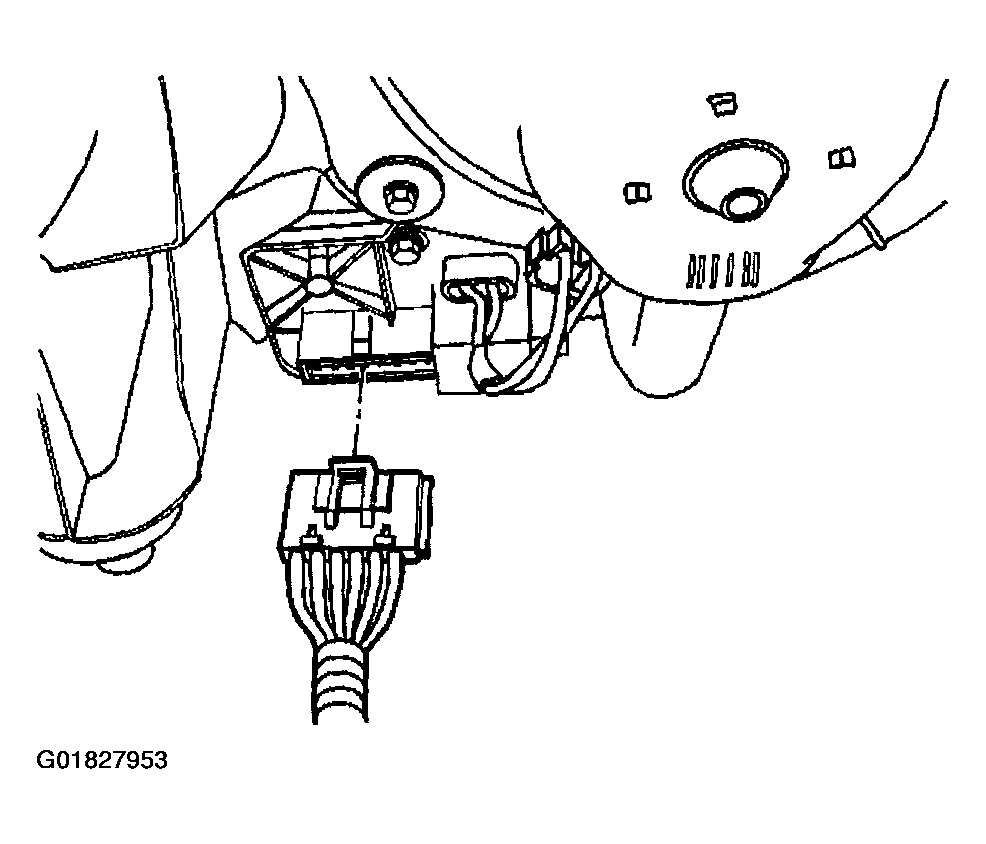

    Fig 2: Blower Motor Resistor Electrical Connector
    G01827953Courtesy of GENERAL MOTORS CORP.

    Important:  Only loosen both of the forward blower motor resistor mounting screws. The blower motor resistor mounting holes are slotted.

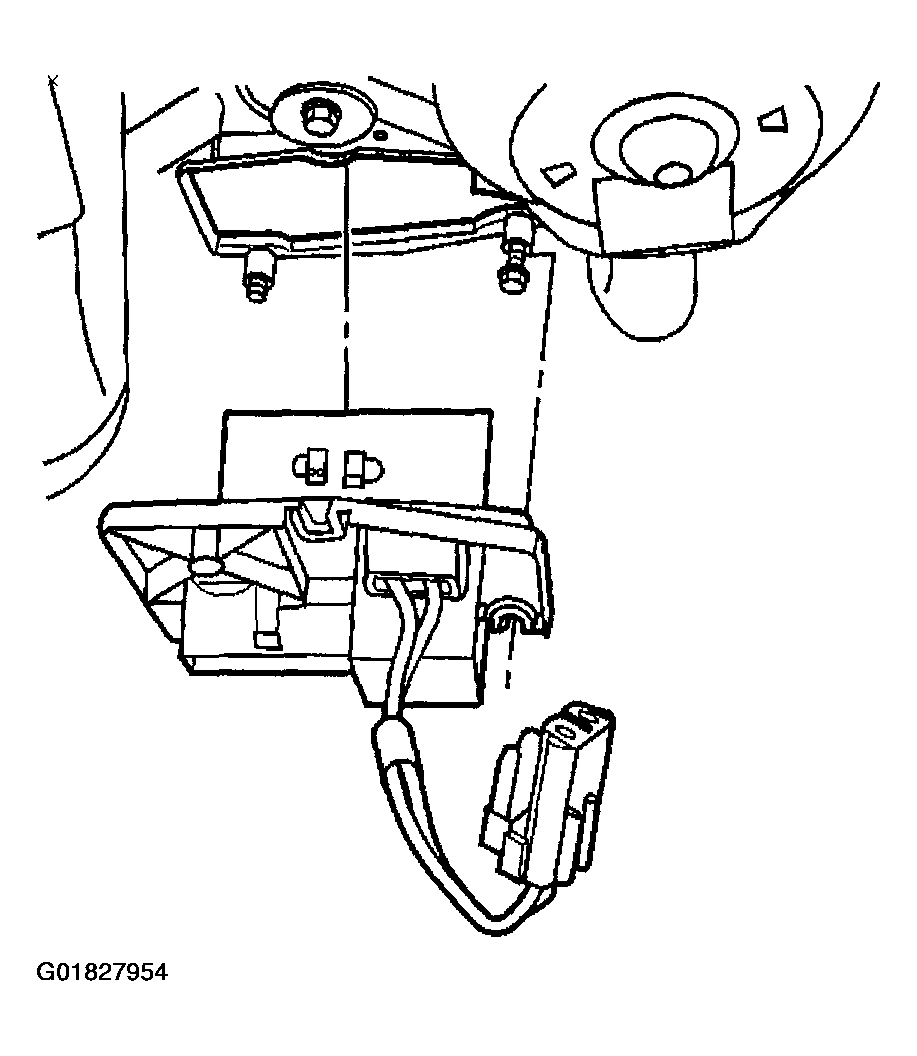

    6. Fig 3: Blower Motor Resistor
    G01827954Courtesy of GENERAL MOTORS CORP.
  6. Loosen the forward blower motor resistor mounting screws.
  7. Remove the rearward blower motor resistor mounting screw.
  8. Remove the blower motor resistor from the HVAC module assembly.
