Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

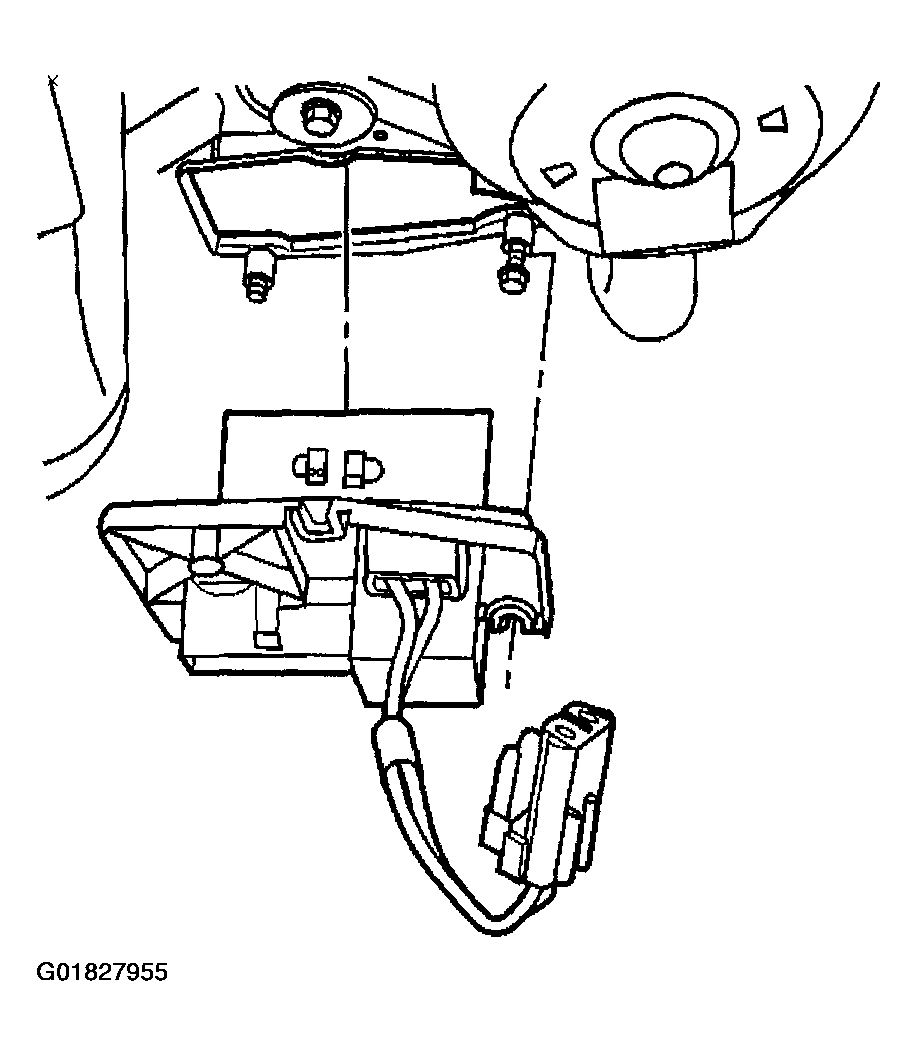

    Fig 1: Blower Motor Resistor
    G01827955Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor resistor to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rearward blower motor resistor mounting screw.

    Tighten

    Tighten all the screws to 1.8 N.m (16 lb in).

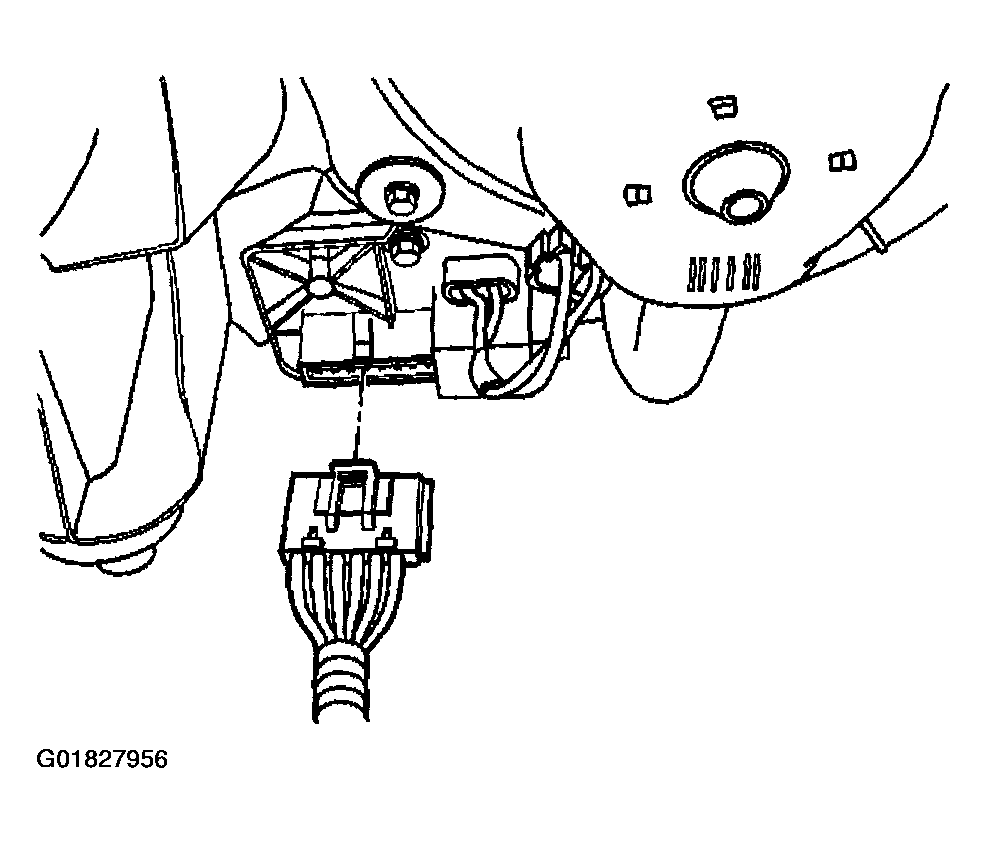

    3. Fig 2: Blower Motor Resistor Electrical Connector
    G01827956Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the blower motor resistor.
  4. Install the blower motor to the HVAC module assembly.
  5. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb ft).

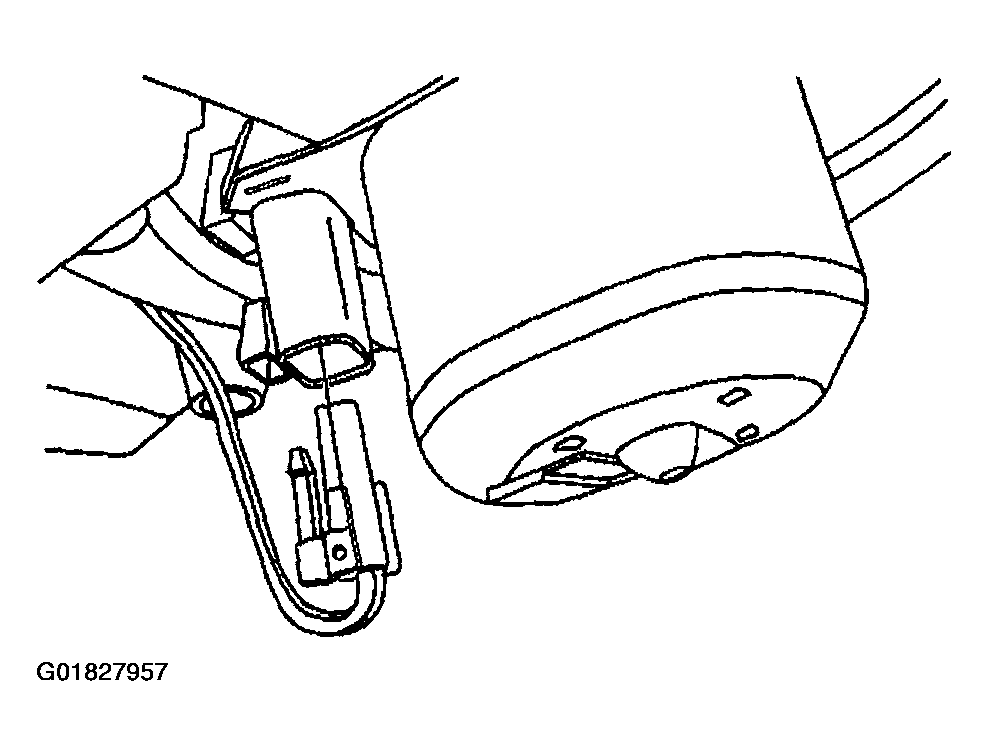

    6. Fig 3: Blower Motor Electrical Connector
    G01827957Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connector to the blower motor.
  7. Install the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
