Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory panel from the left rear quarter trim. Refer to ACCESSORY PANEL REPLACEMENT - REAR .

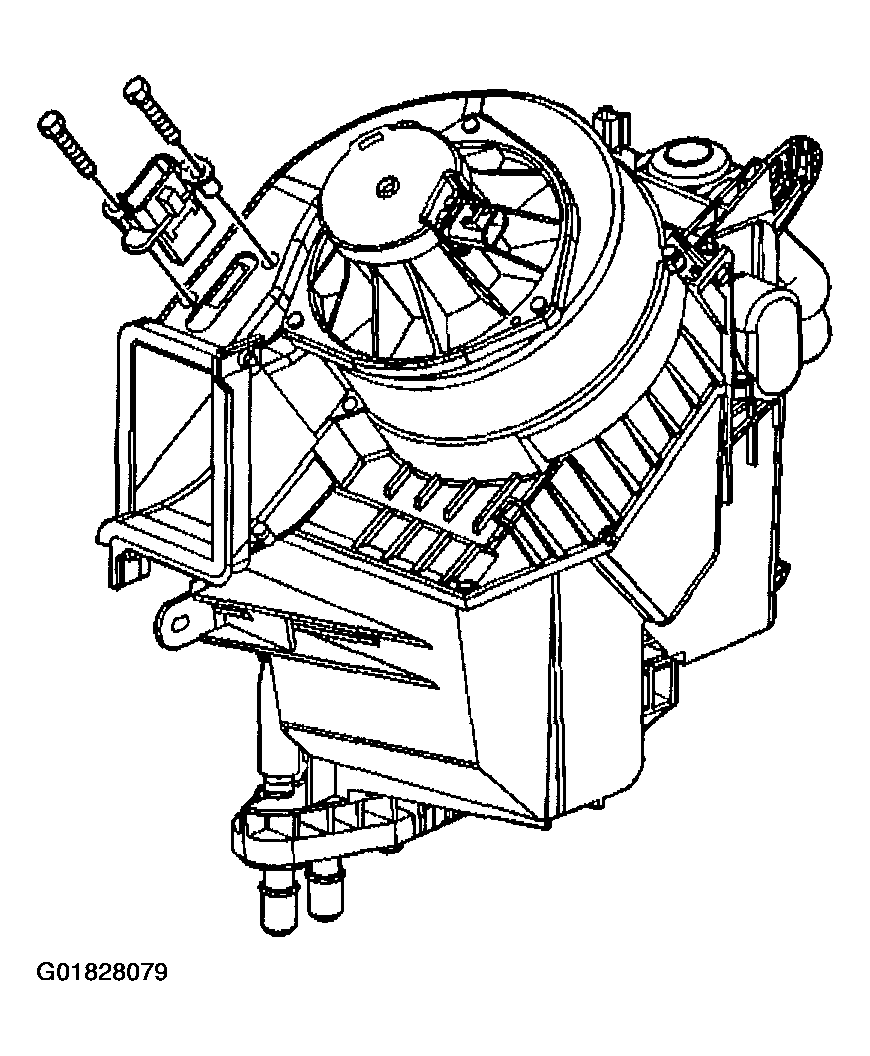

    2. Fig 1: Auxiliary Blower Motor Resistor Assembly
    G01828079Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the auxiliary blower motor resistor electrical connector.
  3. Remove the auxiliary blower motor resistor screws.
  4. Remove the auxiliary blower motor resistor from the auxiliary HVAC module assembly.
