Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

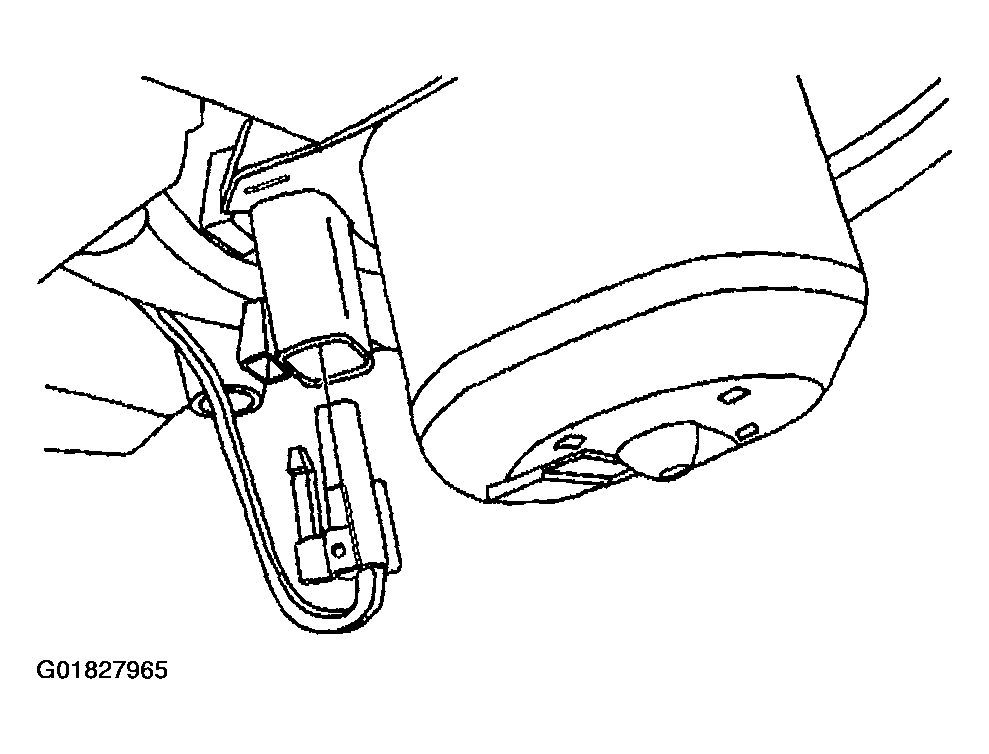

    2. Fig 1: Blower Motor Electrical Connector
    G01827965Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the blower motor electrical connector.
  3. Remove the blower motor mounting screws.

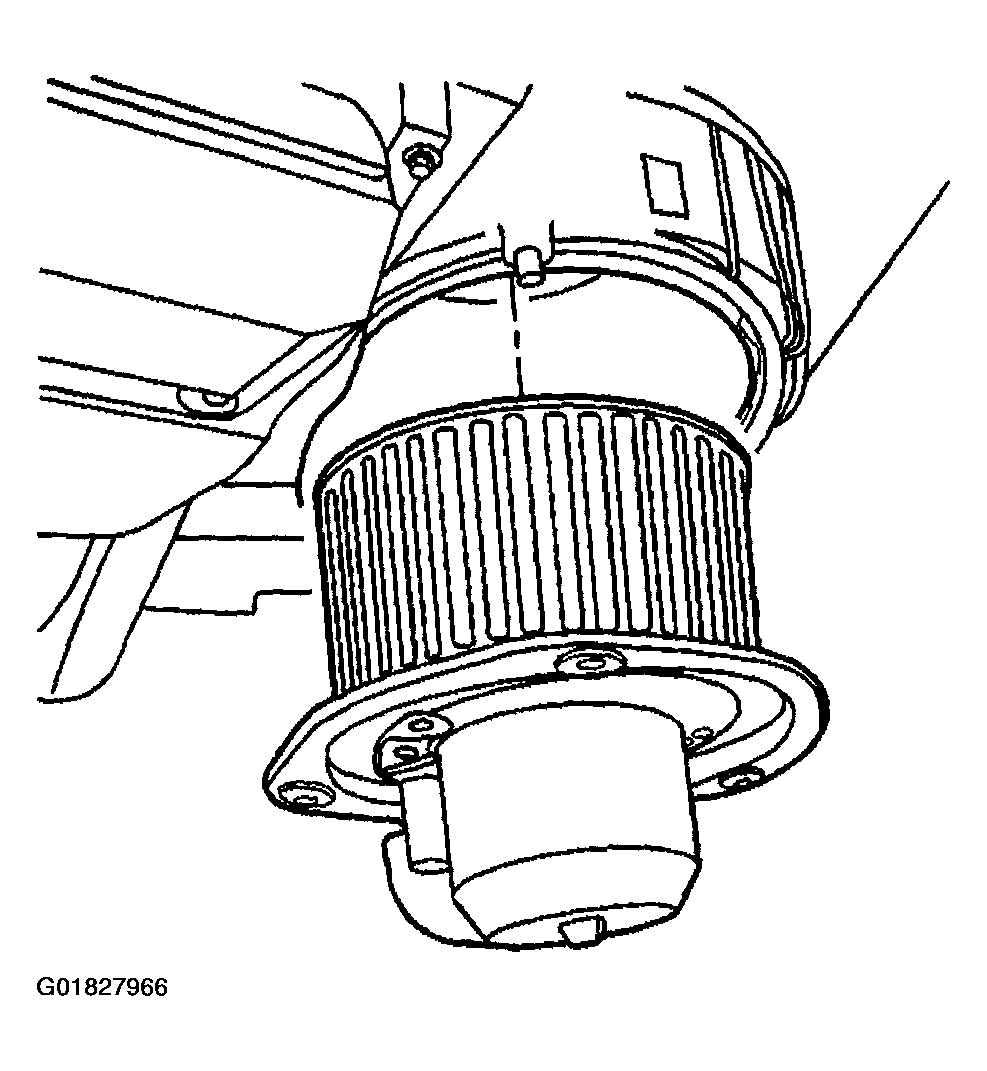

    4. Fig 2: Blower Motor
    G01827966Courtesy of GENERAL MOTORS CORP.
  4. Remove the blower motor from the HVAC module assembly.
