Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

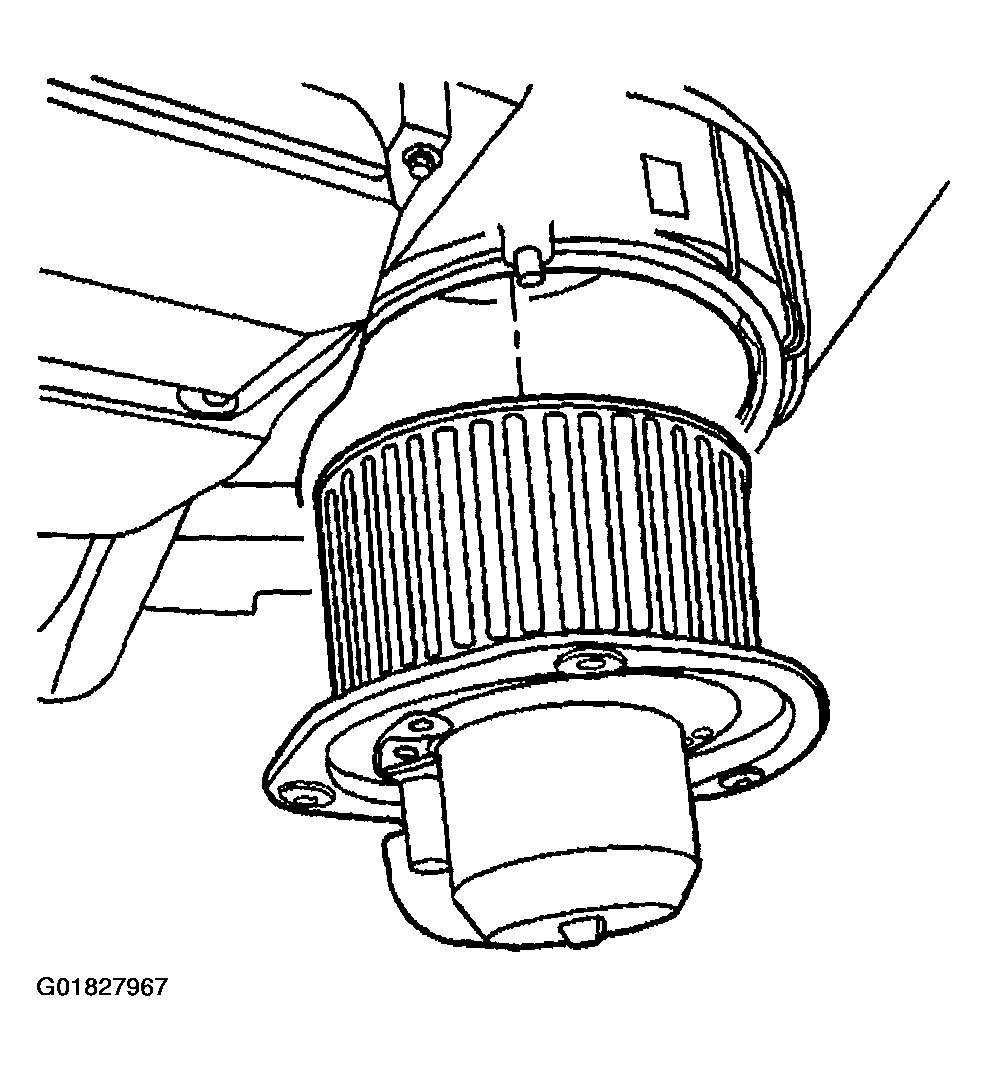

    Fig 1: Blower Motor
    G01827967Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb ft).

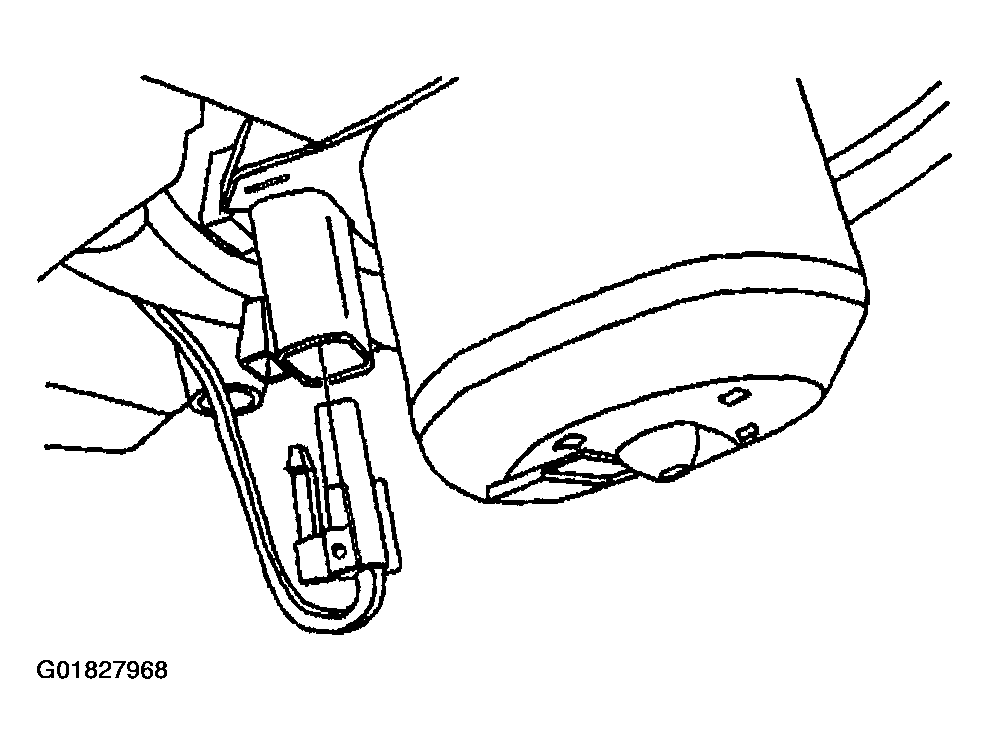

    3. Fig 2: Blower Motor Electrical Connector
    G01827968Courtesy of GENERAL MOTORS CORP.
  3. Connect the blower motor electrical connector.
  4. Install the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
