Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR .
  2. Remove the shelf carrier. Refer to SHELF CARRIER REPLACEMENT - REAR .
  3. Disconnect the auxiliary blower motor electrical connector.
  4. Disconnect the auxiliary blower motor resistor electrical connector.
  5. Disconnect the auxiliary air temperature actuator electrical connector.
  6. Remove the auxiliary blower motor mounting screws.

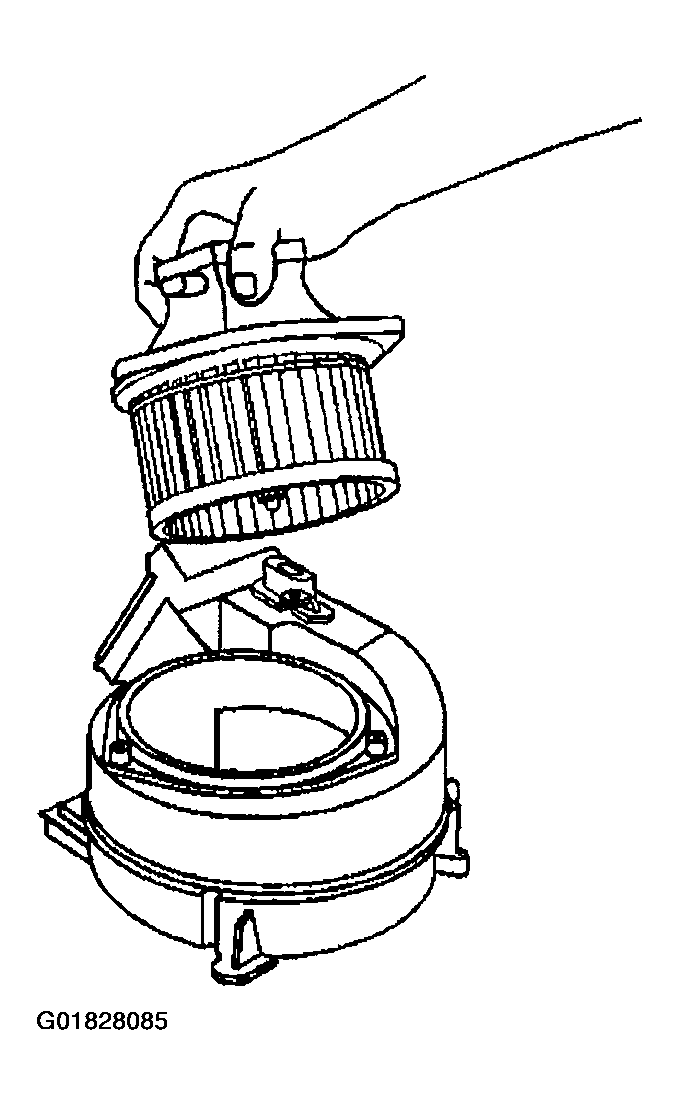

    Fig 1: Auxiliary Blower Motor
    G01828085Courtesy of GENERAL MOTORS CORP.
  7. Remove the auxiliary blower motor from the blower motor housing.
