Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

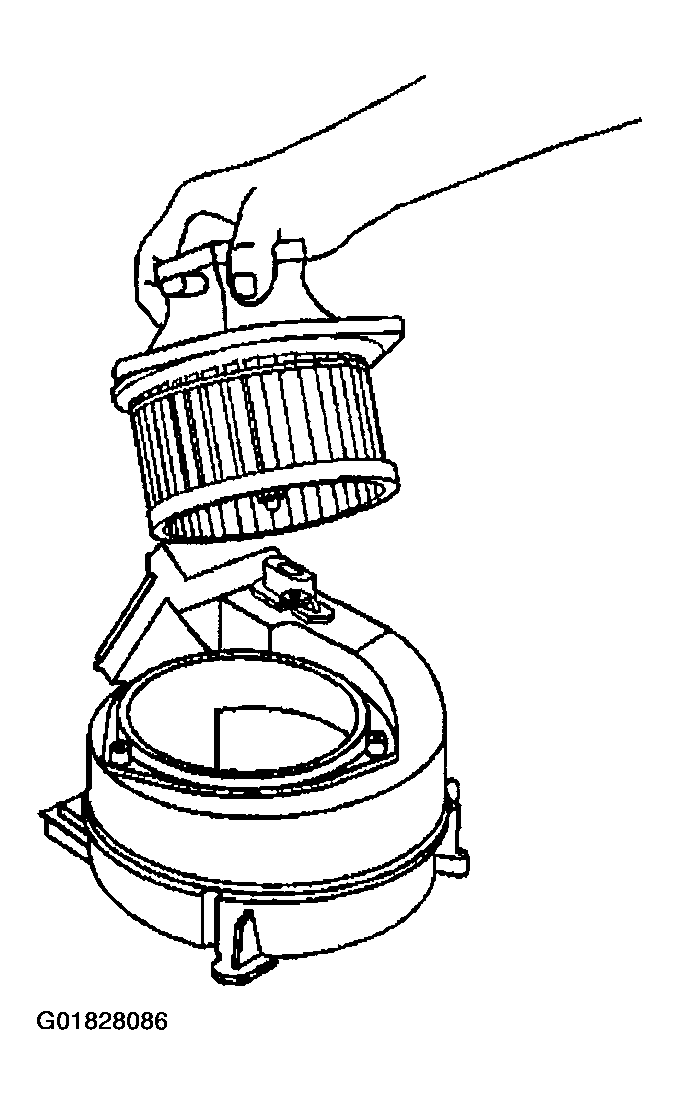

    Fig 1: Auxiliary Blower Motor
    G01828086Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary blower motor to the blower motor housing.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the auxiliary blower motor mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the auxiliary air temperature actuator electrical connector.
  4. Connect the auxiliary blower motor resistor electrical connector.
  5. Connect the auxiliary blower motor electrical connector.
  6. Install the shelf carrier. Refer to SHELF CARRIER REPLACEMENT - REAR .
  7. Install the accessory panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR .
