Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

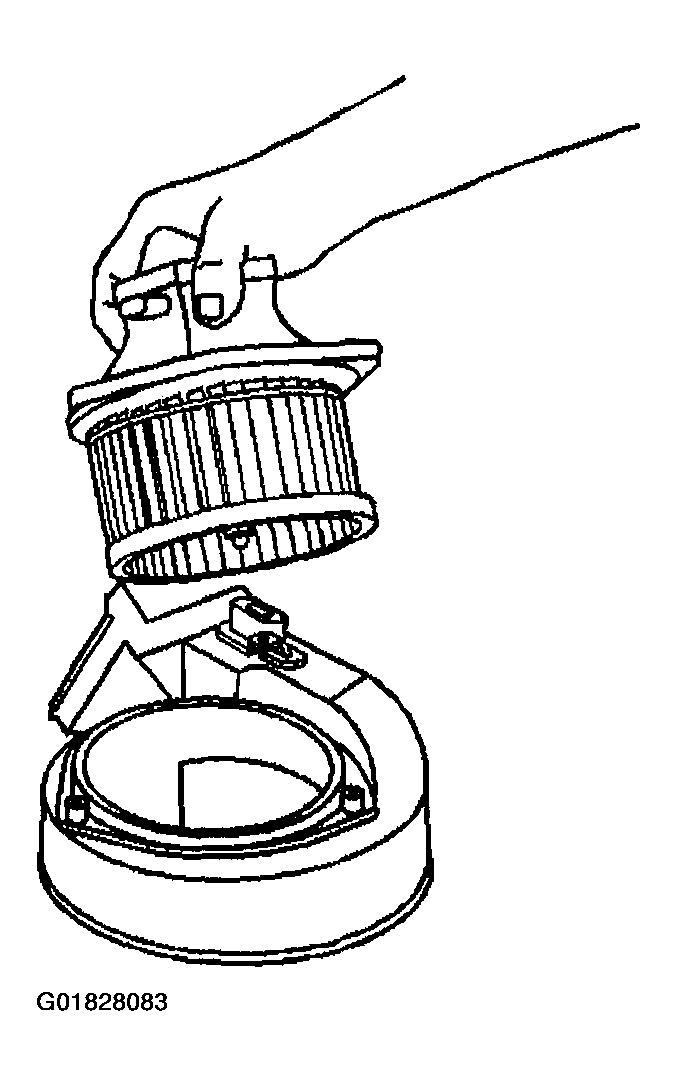

    Fig 1: Auxiliary Blower Motor
    G01828083Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary blower motor to the blower motor housing.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the auxiliary blower motor mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

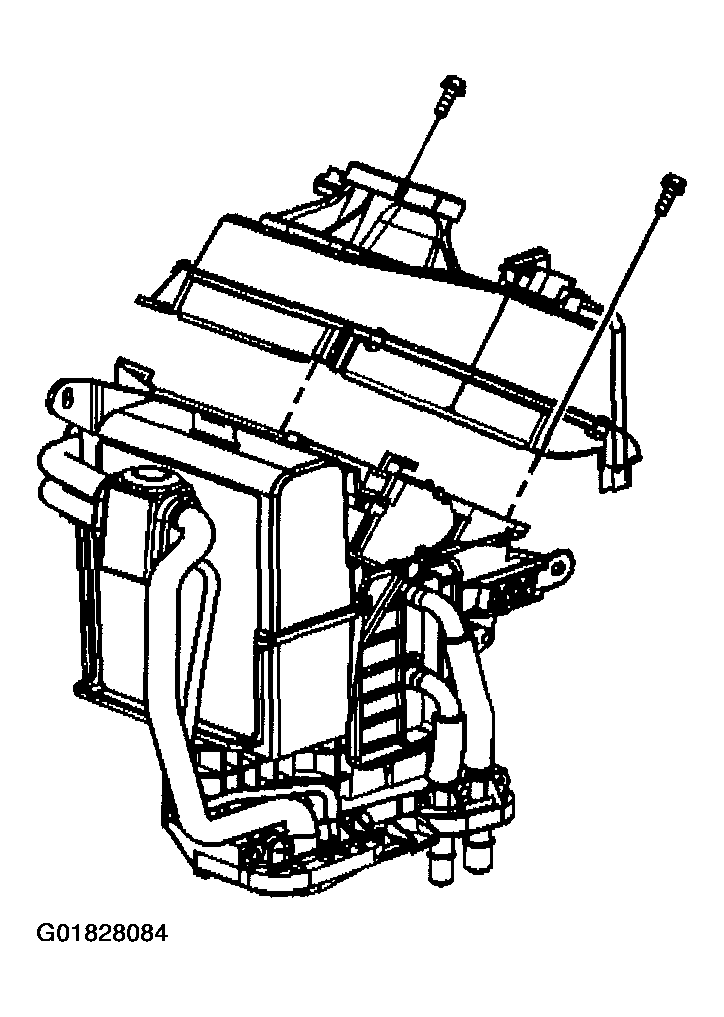

    3. Fig 2: Auxiliary Blower Motor Housing
    G01828084Courtesy of GENERAL MOTORS CORP.
  3. Install the blower motor housing to the auxiliary HVAC module assembly.

    Align the rear tabs of the blower motor housing to the HVAC module.

  4. Install the auxiliary blower motor housing screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  5. Install the lower auxiliary air distribution duct.
  6. Install the lower auxiliary air distribution retainers.
  7. Install the lower auxiliary air distribution ducts bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  8. Connect the auxiliary blower motor resistor electrical connector.
  9. Connect the auxiliary blower motor electrical connector.
  10. Install the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
