Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

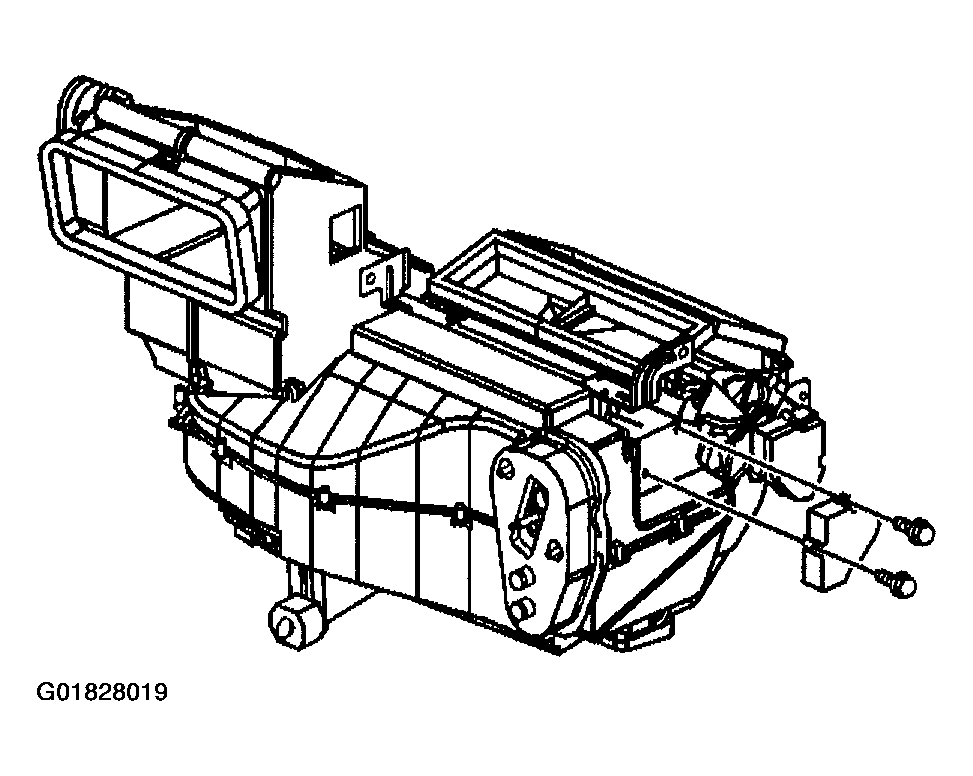

    2. Fig 1: Left Side Air Temperature Actuator
    G01828019Courtesy of GENERAL MOTORS CORP.
  2. Remove the left air temperature actuator mounting screws.
  3. Remove the left air temperature actuator.

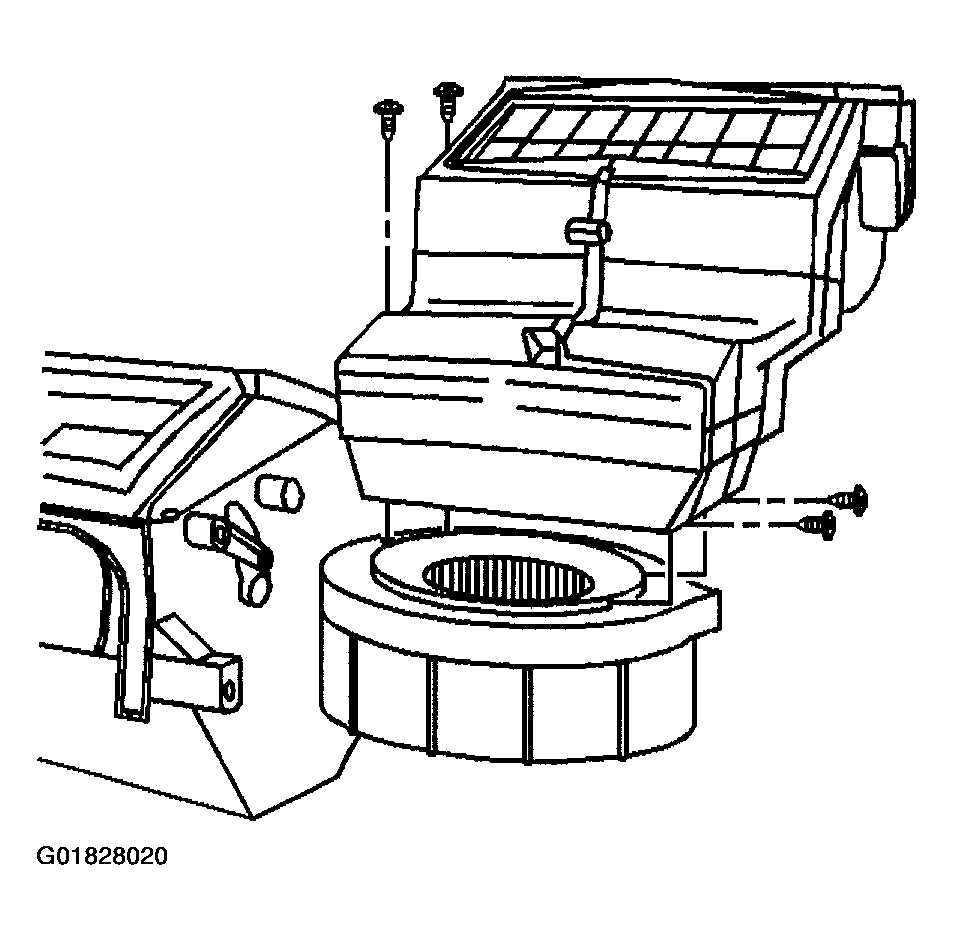

    4. Fig 2: Air Inlet Housing
    G01828020Courtesy of GENERAL MOTORS CORP.
  4. Remove the air inlet housing retaining screws.
  5. Remove the air inlet housing.
    6. Fig 3: HVAC Module Mounting Bracket
    G01828021Courtesy of GENERAL MOTORS CORP.
  6. Remove the right HVAC module mounting bracket screws.
  7. Remove the right HVAC module mounting bracket.

    Important:  The HVAC module assembly upper retaining screw is located under the right HVAC module assembly mounting bracket.

  8. Remove the HVAC module upper retaining screw.
    9. Fig 4: HVAC Module Assembly To Dash Panel Sound Barrier Seal
    G01828022Courtesy of GENERAL MOTORS CORP.
  9. Remove the HVAC module assembly to dash panel sound barrier seal.

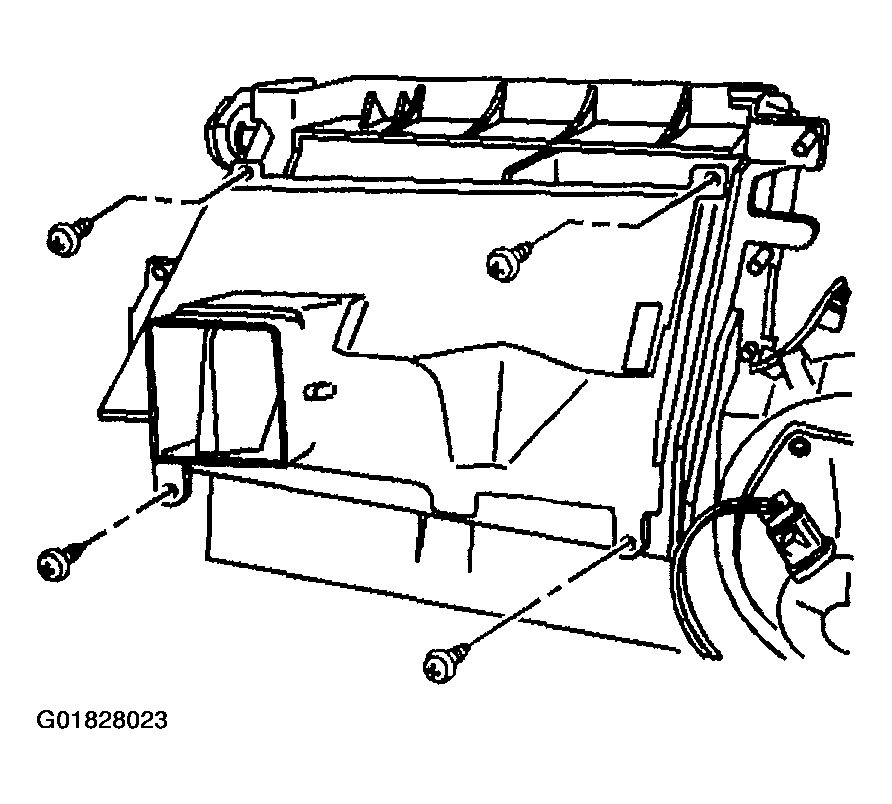

    10. Fig 5: Heater Outlet Duct
    G01828023Courtesy of GENERAL MOTORS CORP.
  10. Remove the heater outlet duct screws.
  11. Remove the heater outlet duct.

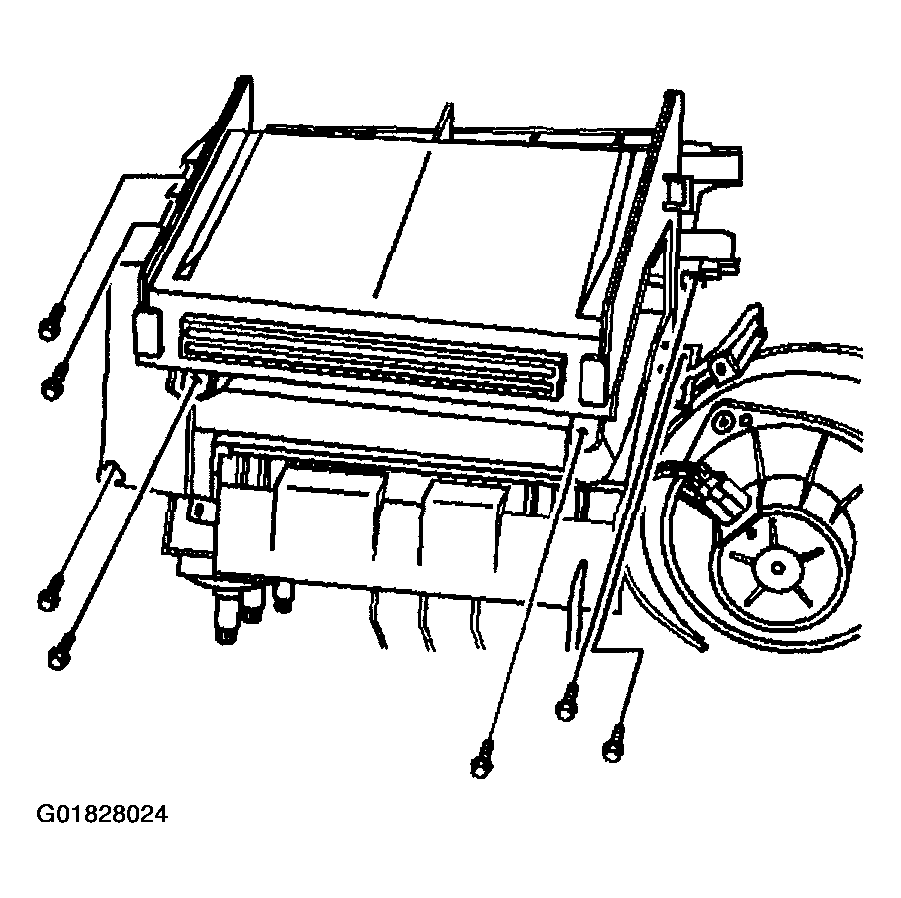

    12. Fig 6: Heater Core Cover
    G01828024Courtesy of GENERAL MOTORS CORP.
  12. Remove the heater core cover screws.
  13. Remove the heater core cover.

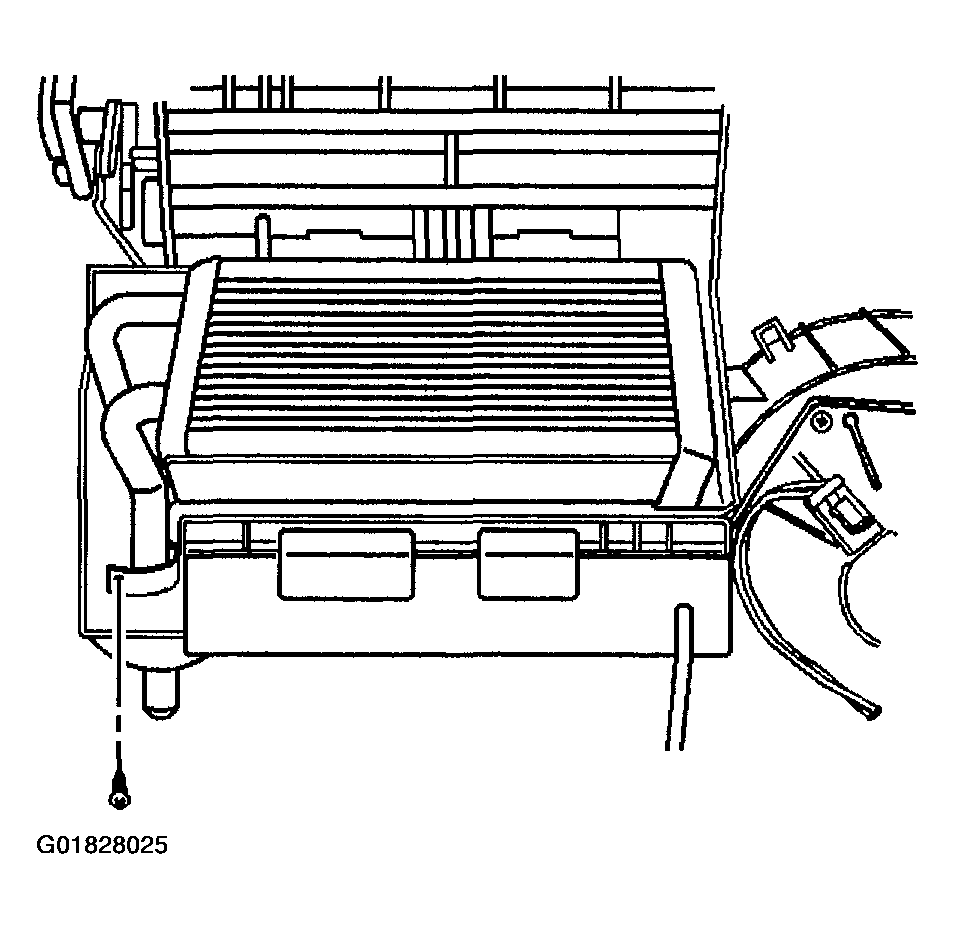

    14. Fig 7: Heater Core
    G01828025Courtesy of GENERAL MOTORS CORP.
  14. Remove the heater core pipe retaining screw.
  15. Remove the heater core.

    Important:  The lower HVAC module assembly retaining screw is located behind the heater core.

  16. Remove the lower HVAC module retaining screw.
  17. Remove the lower HVAC module screws.
    18. Fig 8: HVAC Module Case Halves
    G01828026Courtesy of GENERAL MOTORS CORP.
  18. Separate the HVAC module case halves.
  19. Remove the left air temperature door lever.

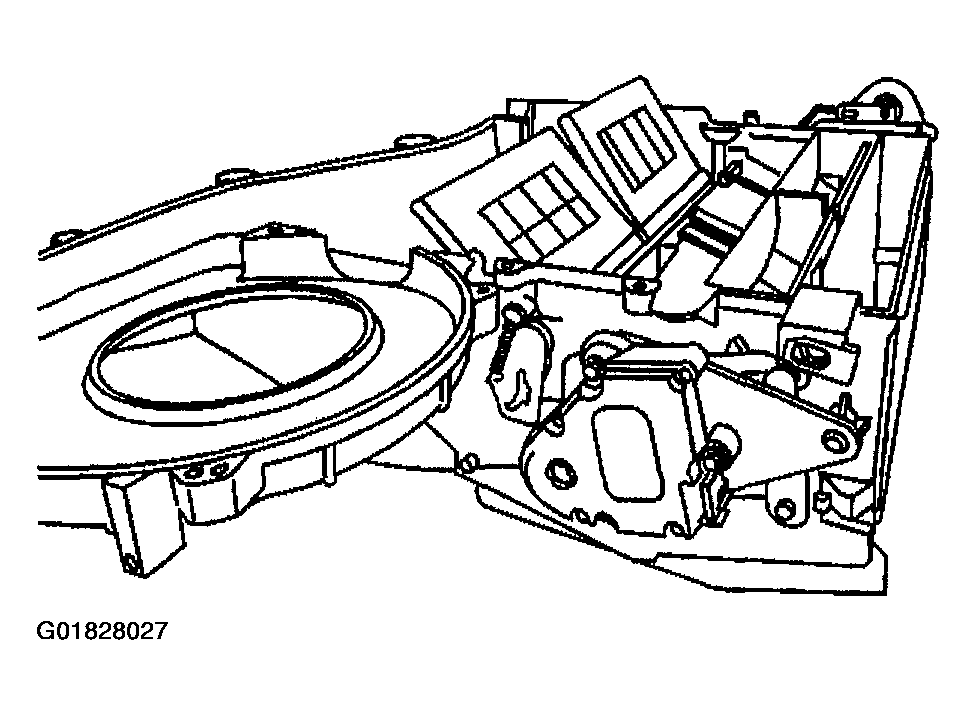

    20. Fig 9: Left Air Temperature Door
    G01828027Courtesy of GENERAL MOTORS CORP.
  20. Remove the left air temperature door.
