Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

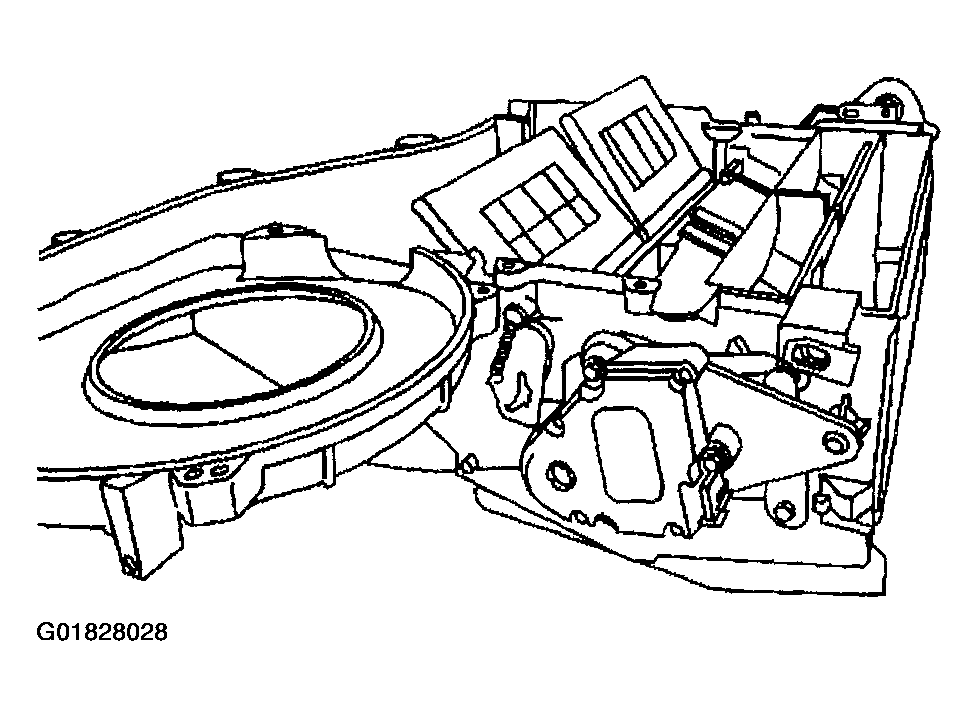

    Fig 1: Left Air Temperature Door
    G01828028Courtesy of GENERAL MOTORS CORP.
  1. Install the left air temperature door.
  2. Install the left air temperature door lever.
    3. Fig 2: HVAC Module Case Halves
    G01828029Courtesy of GENERAL MOTORS CORP.
  3. Align and install the upper module case to the lower module case.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the lower HVAC module screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  5. Install the lower HVAC module retaining screw.

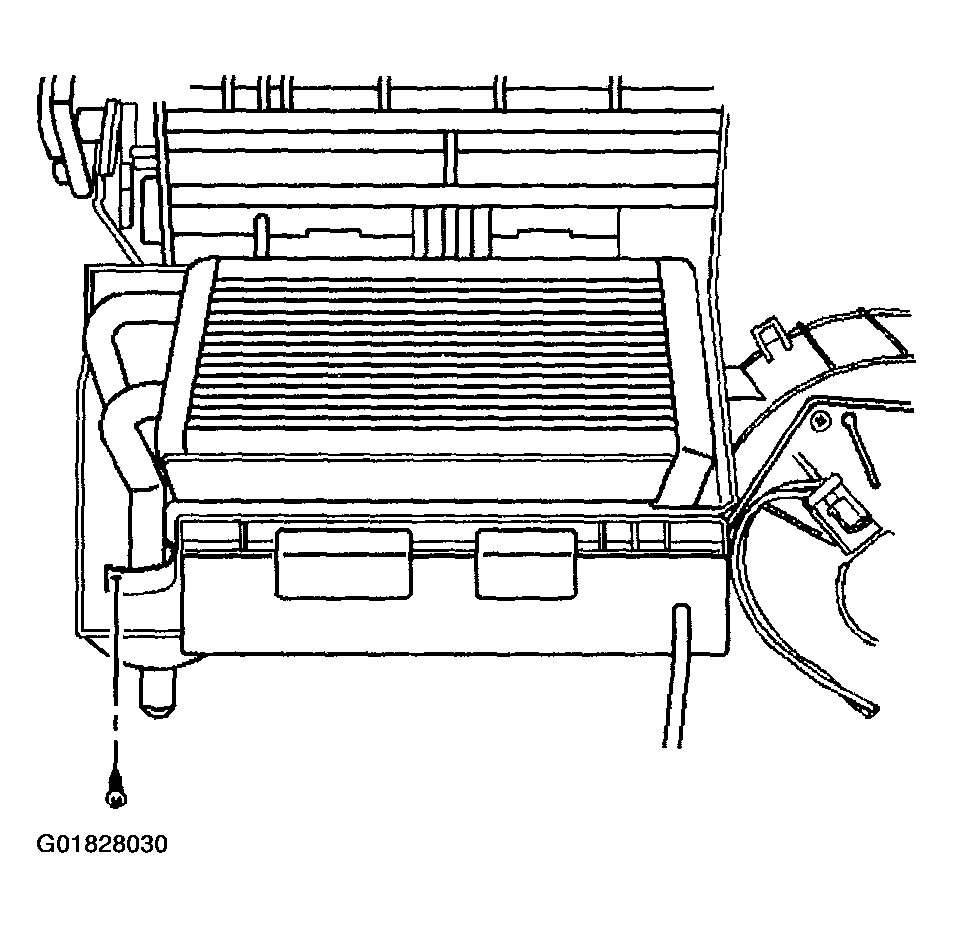

    6. Fig 3: Heater Core
    G01828030Courtesy of GENERAL MOTORS CORP.
  6. Install the heater core.
  7. Install the heater core pipe retaining screw.

    Tighten

    Tighten the screw to 0.9 N.m (8 lb in).

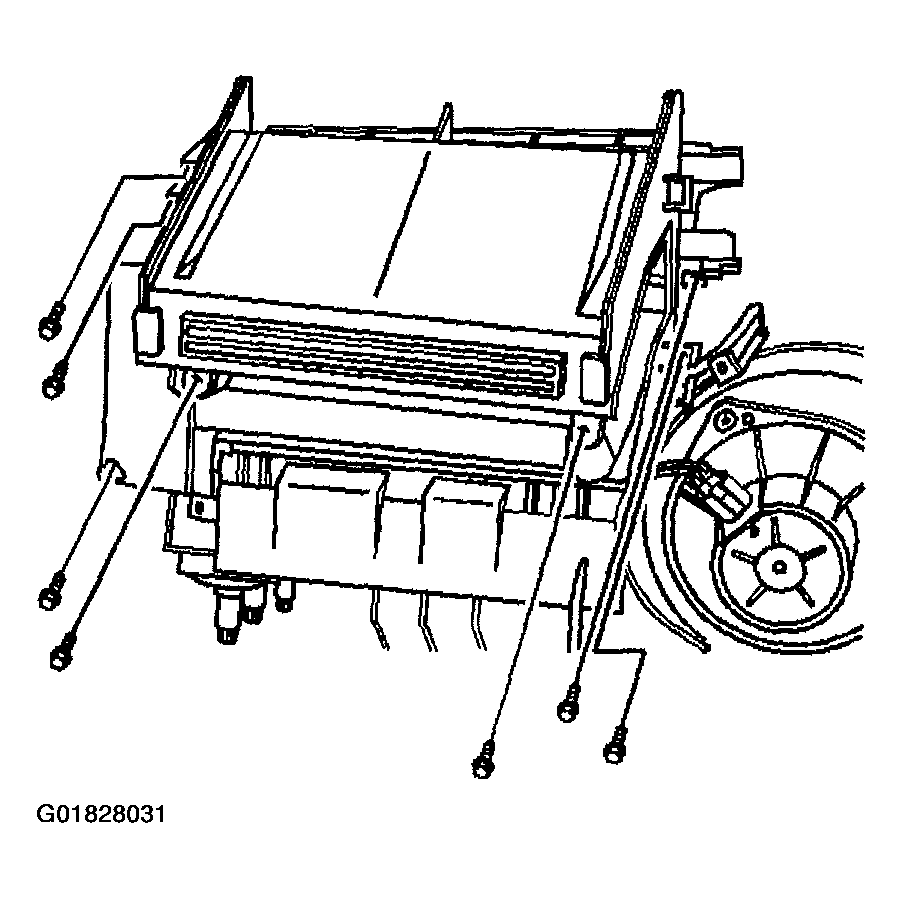

    8. Fig 4: Heater Core Cover
    G01828031Courtesy of GENERAL MOTORS CORP.
  8. Install the heater core cover.
  9. Install the heater core cover screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

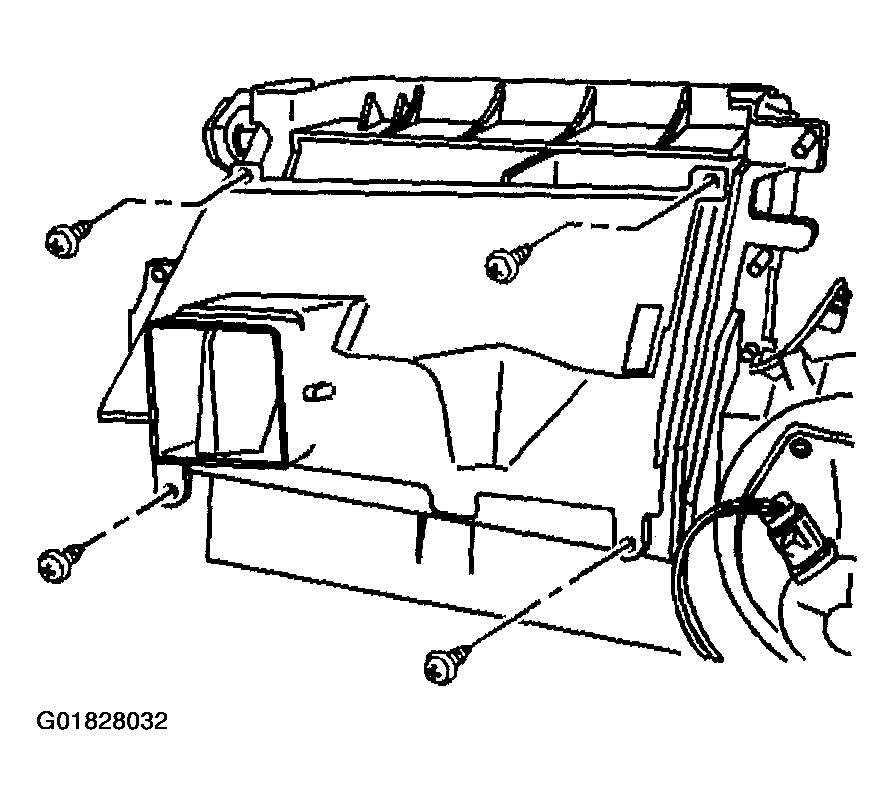

    10. Fig 5: Heater Outlet Duct
    G01828032Courtesy of GENERAL MOTORS CORP.
  10. Install the heater outlet duct.
  11. Install the heater outlet duct screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  12. Install the HVAC module upper retaining screw.

    Tighten

    Tighten the screw to 0.9 N.m (8 lb in).

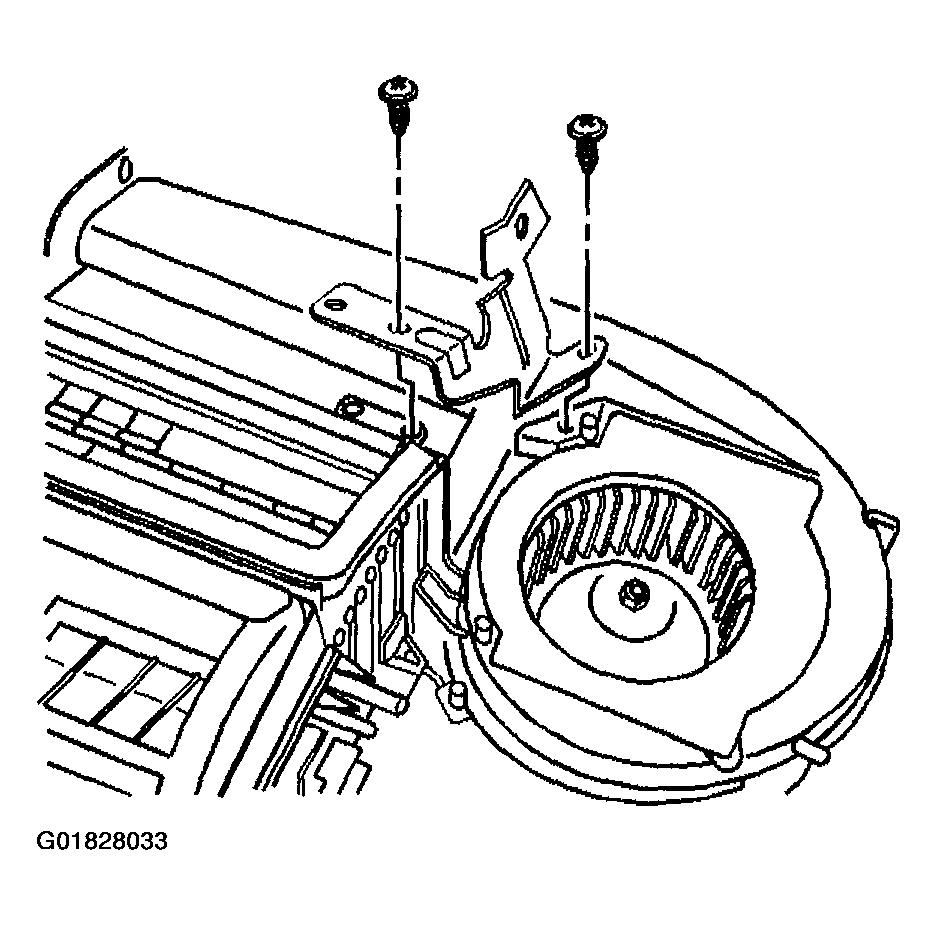

    13. Fig 6: HVAC Module Mounting Bracket
    G01828033Courtesy of GENERAL MOTORS CORP.
  13. Install the right HVAC module mounting bracket.
  14. Install the right HVAC module mounting bracket screws.

    Tighten

    Tighten the screw to 1.8 N.m (16 lb in).

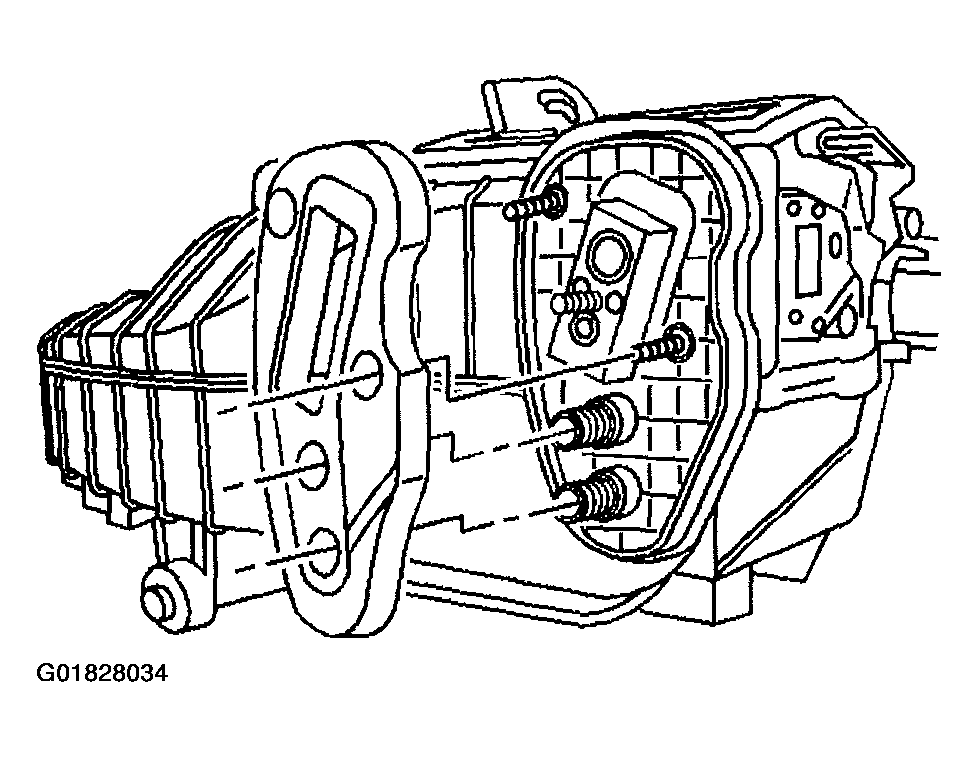

    15. Fig 7: HVAC Module Assembly To Dash Panel Sound Barrier Seal
    G01828034Courtesy of GENERAL MOTORS CORP.
  15. Install the HVAC module assembly to dash panel sound barrier seal.

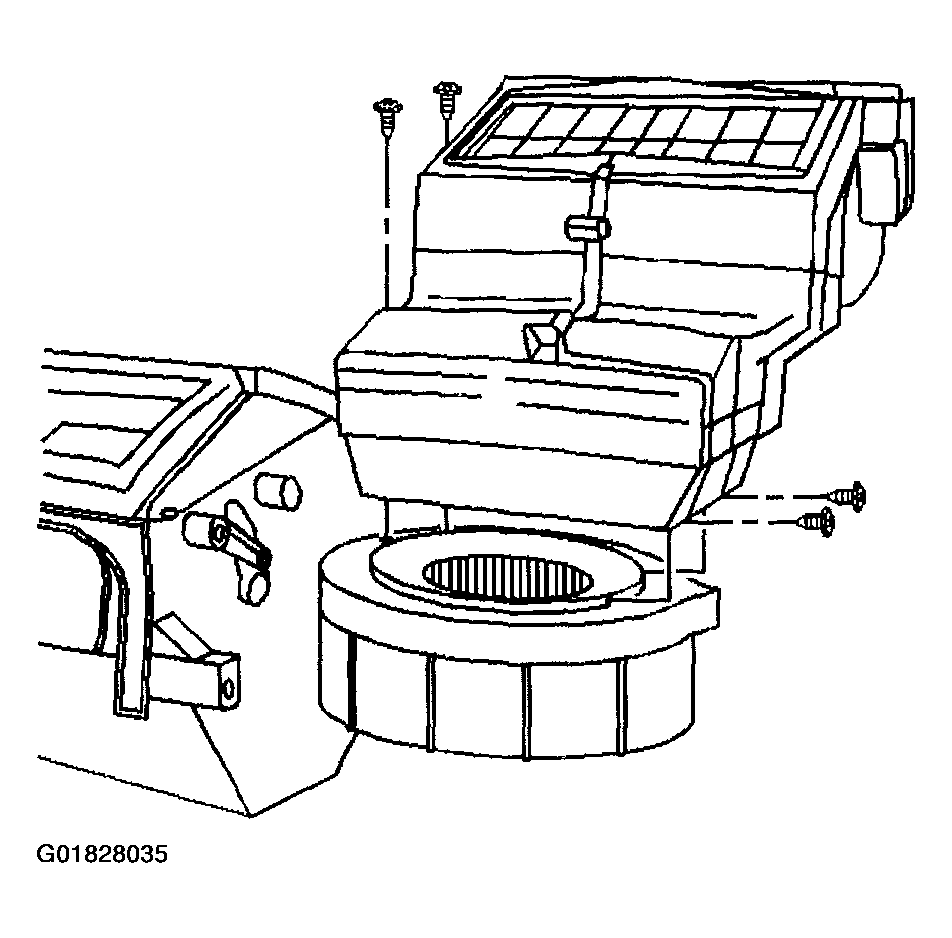

    16. Fig 8: Air Inlet Housing
    G01828035Courtesy of GENERAL MOTORS CORP.
  16. Install the air inlet housing.
  17. Install the air inlet housing screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

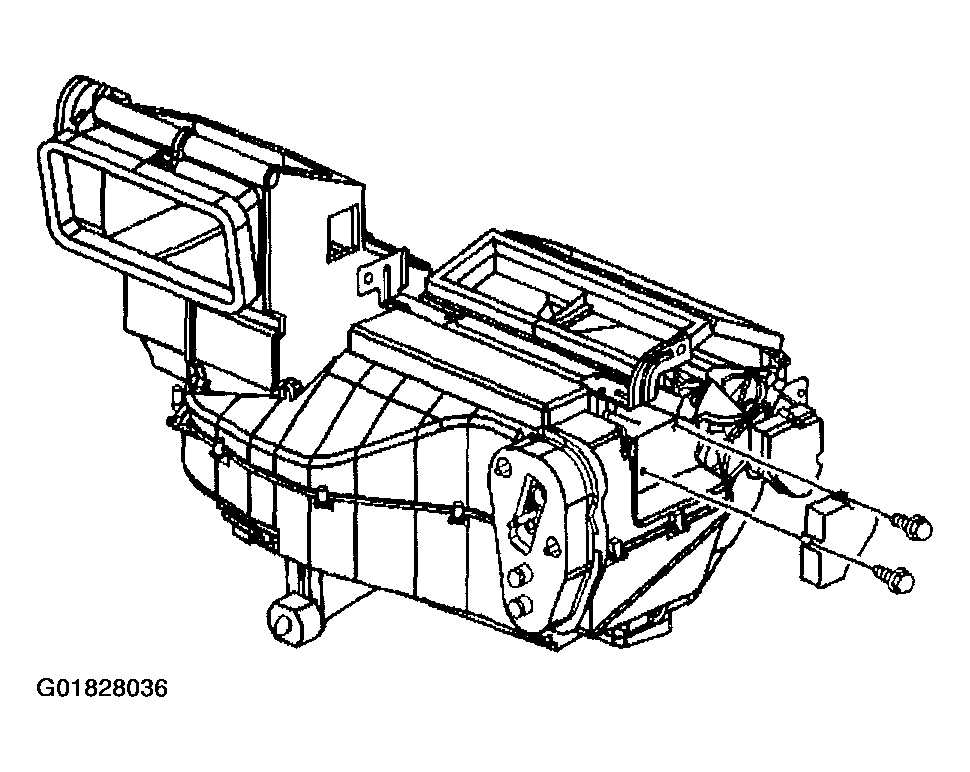

    18. Fig 9: Left Side Air Temperature Actuator
    G01828036Courtesy of GENERAL MOTORS CORP.
  18. Install the left air temperature actuator.
  19. Install the left air temperature actuator screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  20. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
