Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP assembly. Refer to IP ASSEMBLY REPLACEMENT .

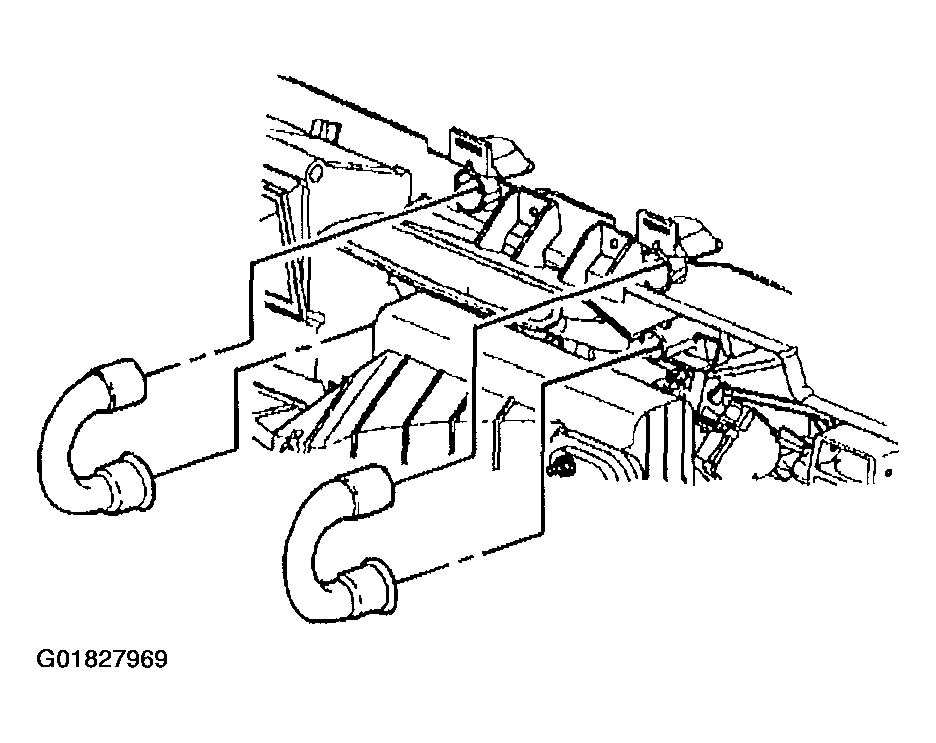

    2. Fig 1: Side Window Duct
    G01827969Courtesy of GENERAL MOTORS CORP.
  2. Pull the side window duct from the cross vehicle beam.
  3. Remove side window duct from defroster duct.
