Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

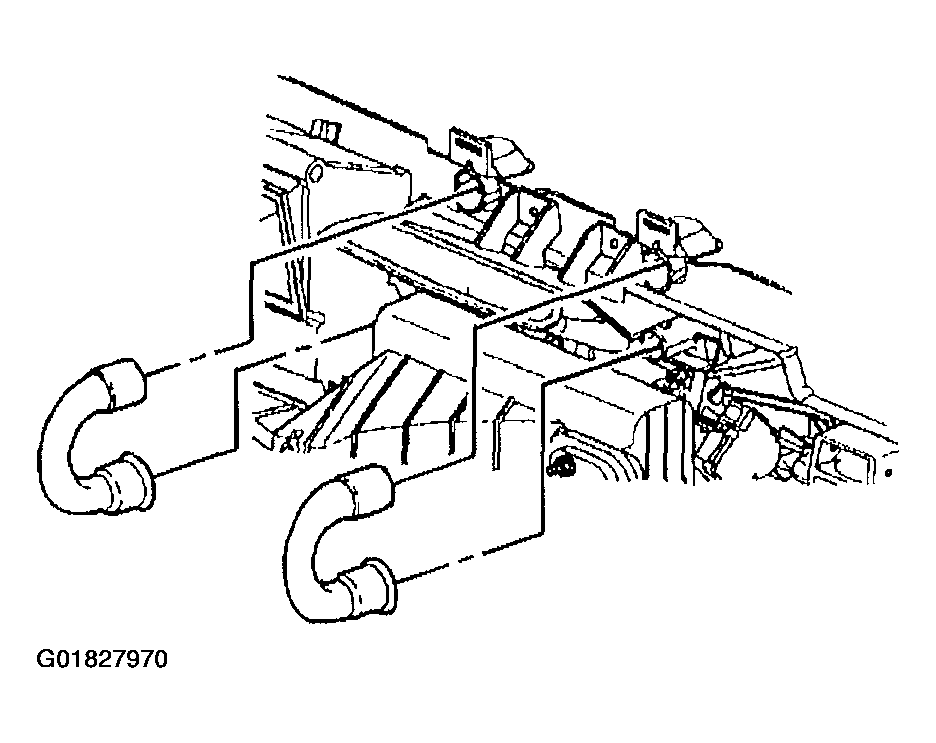

    Fig 1: Side Window Duct
    G01827970Courtesy of GENERAL MOTORS CORP.
  1. Position the side window duct to the defroster duct.
  2. Push the side window duct to snap duct into the cross vehicle beam.
  3. Install the IP assembly. Refer to IP ASSEMBLY REPLACEMENT .
