Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP assembly. Refer to IP ASSEMBLY REPLACEMENT .

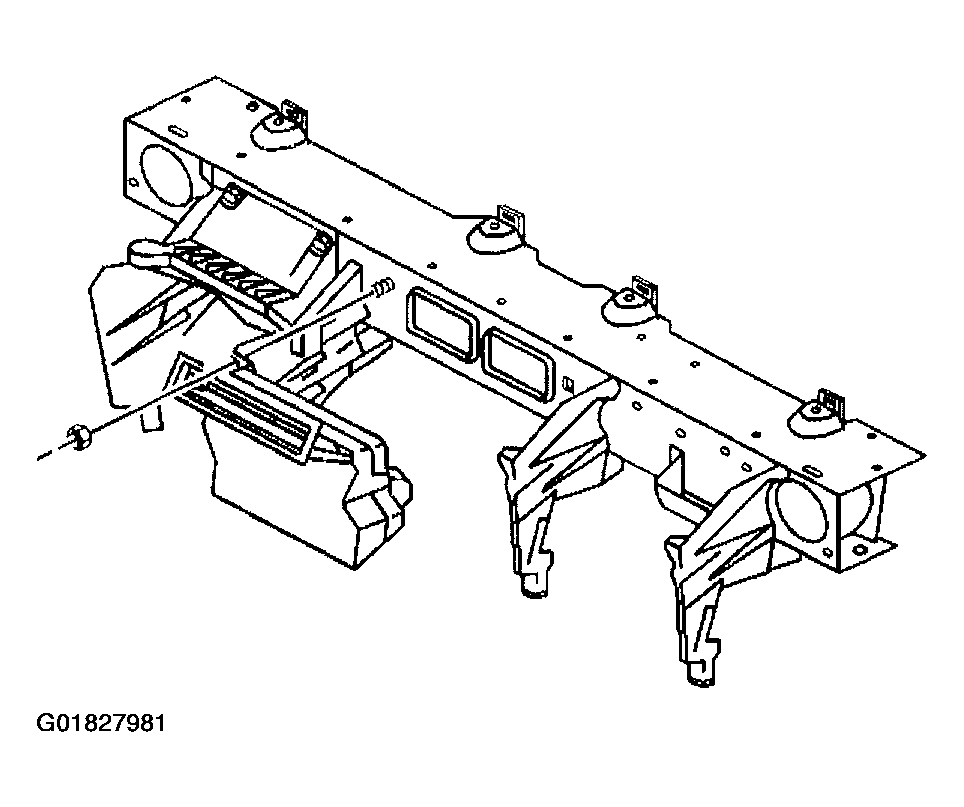

    2. Fig 1: Center Air Distribution Duct
    G01827981Courtesy of GENERAL MOTORS CORP.
  2. Remove the center air distribution duct nut.
  3. Remove the center air distribution duct from the cross vehicle beam.
