Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

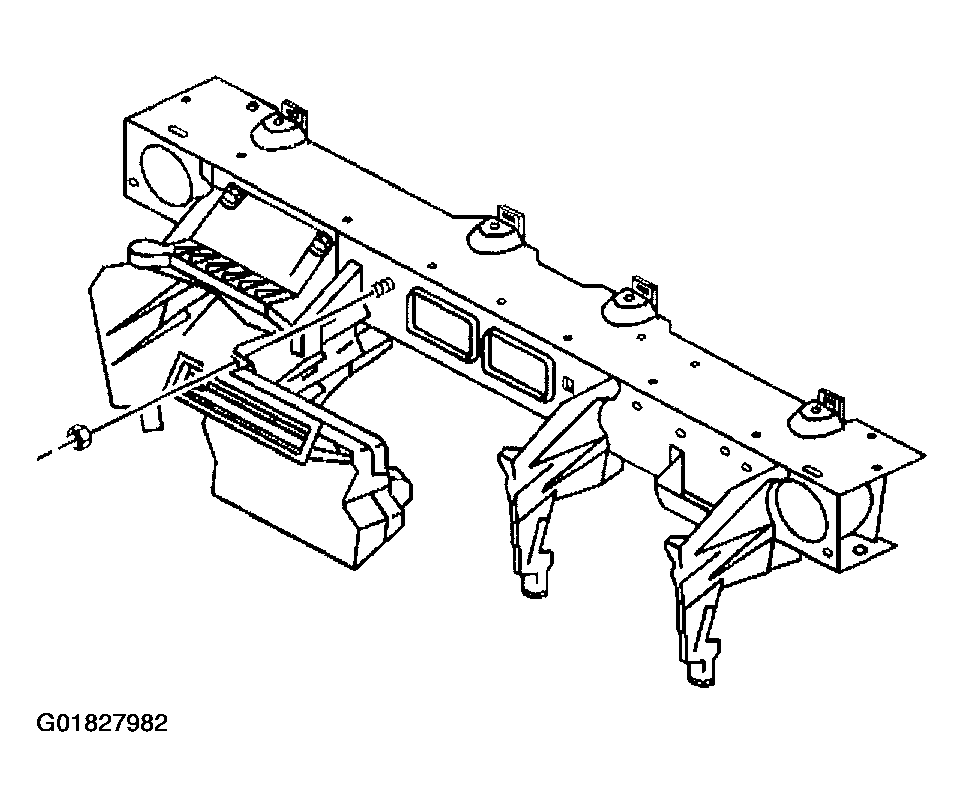

    Fig 1: Center Air Distribution Duct
    G01827982Courtesy of GENERAL MOTORS CORP.
  1. Position the center air distribution duct to the cross vehicle beam.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the center air distribution duct nut.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  3. Install the IP assembly. Refer to IP ASSEMBLY REPLACEMENT .
