Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR .
  3. Remove the console bracket. Refer to BRACKET REPLACEMENT - CONSOLE FLOOR .
  4. Reposition the front of the carpet rearward.
  5. Remove the floor duct brace.

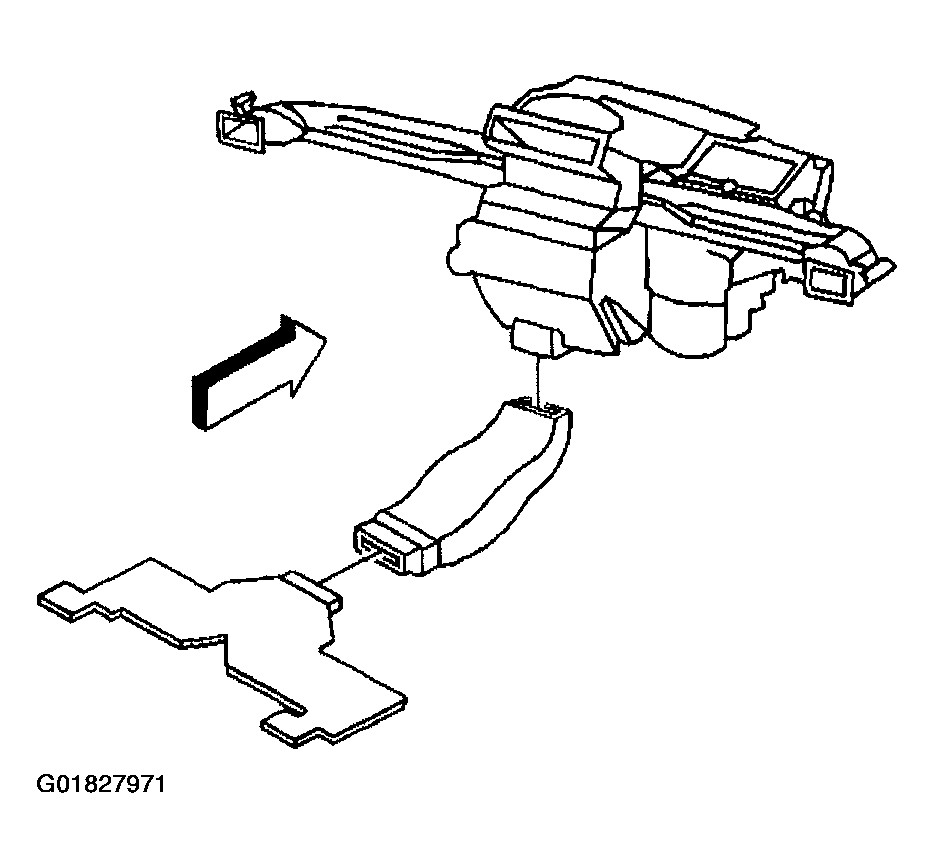

    6. Fig 1: Center Floor Duct
    G01827971Courtesy of GENERAL MOTORS CORP.
  6. Remove the floor duct from the HVAC module assembly and the lower floor duct.
  7. Unsnap the lower floor air outlet duct from the studs and the holes in the floor reinforcement.
