Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Defroster Outlet Duct
    G01827975Courtesy of GENERAL MOTORS CORP.
  1. Position the defroster outlet duct to the cross vehicle beam.
  2. Connect the lower defroster outlet duct retaining clips.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the defroster outlet duct to cross vehicle beam retaining screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

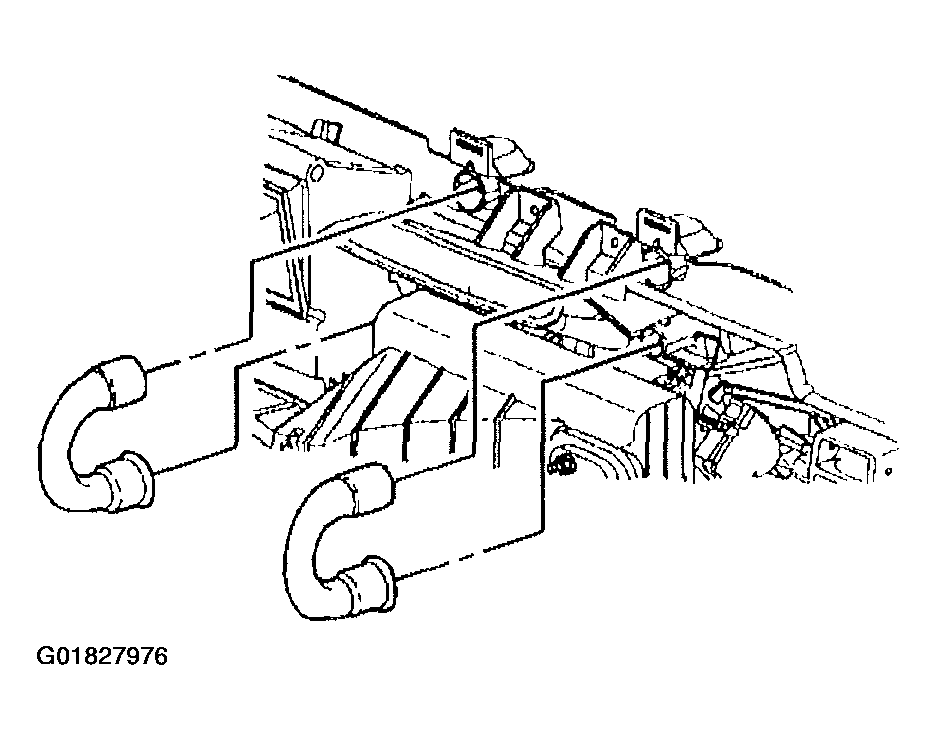

    4. Fig 2: Side Window Ducts
    G01827976Courtesy of GENERAL MOTORS CORP.
  4. Install the side window ducts to the defroster outlet duct.
  5. Install the IP carrier. Refer to IP CARRIER REPLACEMENT .
