Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

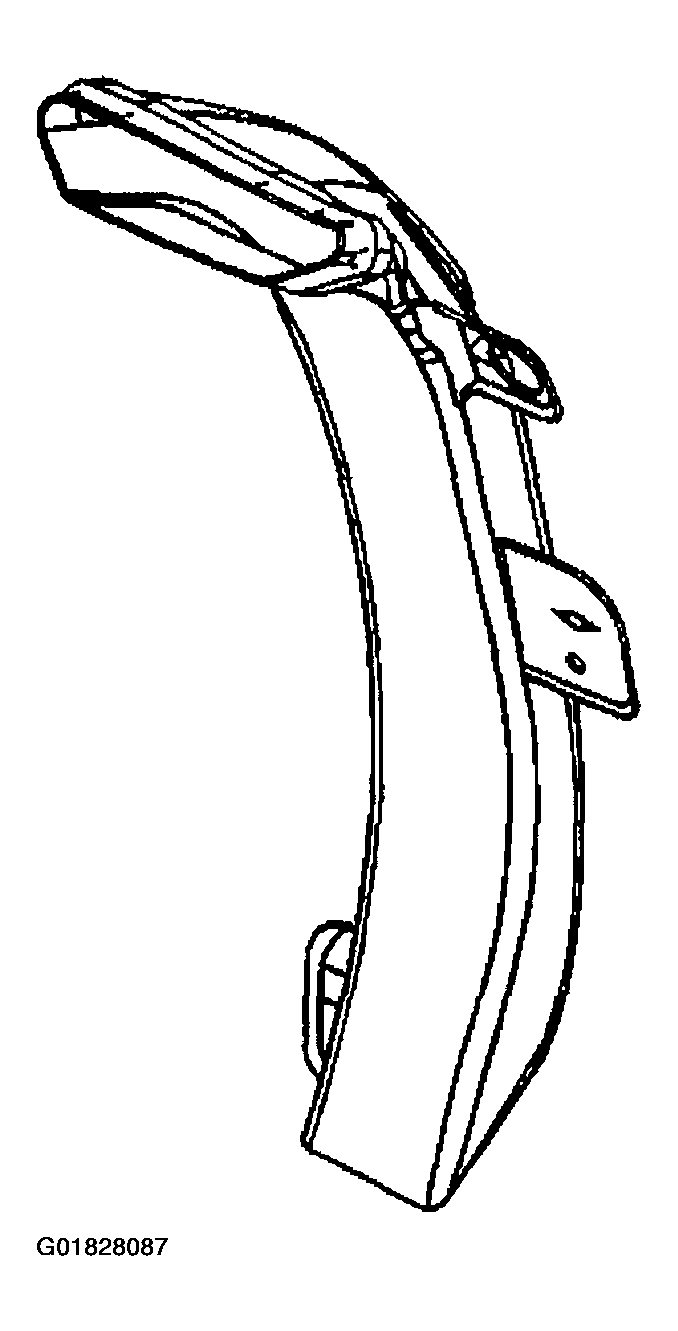

    2. Fig 1: Mid Upper Air Distribution Duct
    G01828087Courtesy of GENERAL MOTORS CORP.
  2. Remove the retainers from the mid upper air distribution duct.
  3. Remove the mid upper air distribution duct from the C-pillar.

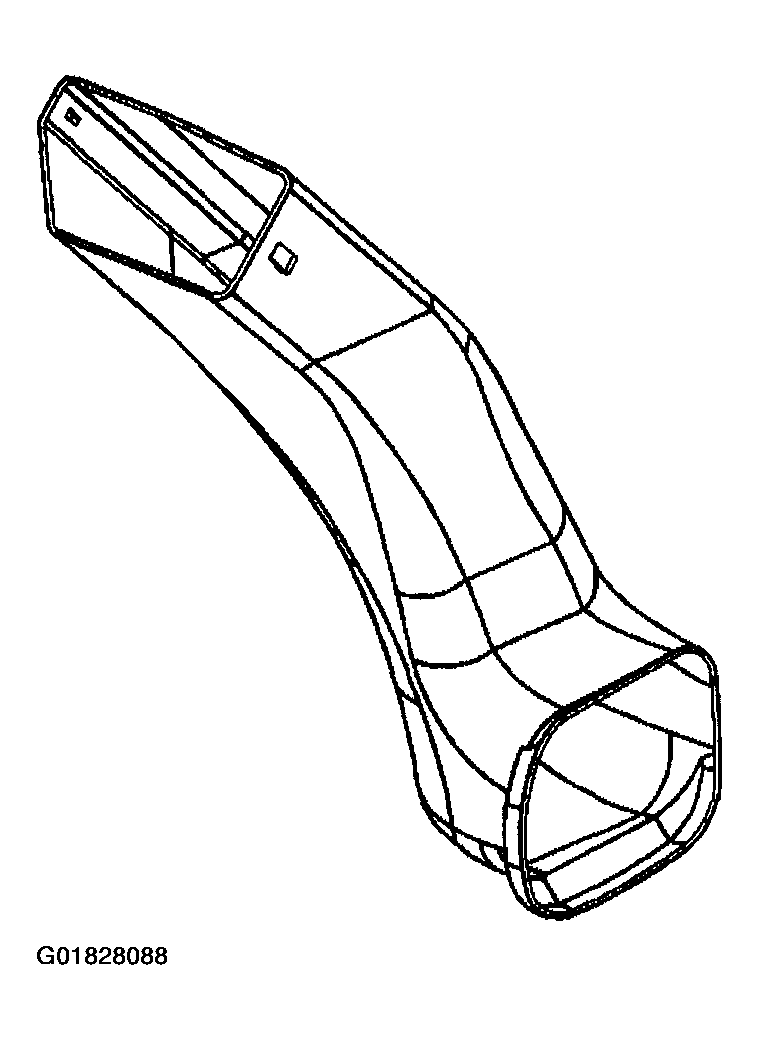

    4. Fig 2: Lower Air Distribution Duct
    G01828088Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer from the lower air distribution duct.
  5. Remove the lower air distribution duct from the C-pillar.
  6. Remove the auxiliary mode actuator. Refer to MODE ACTUATOR REPLACEMENT - AUXILIARY .

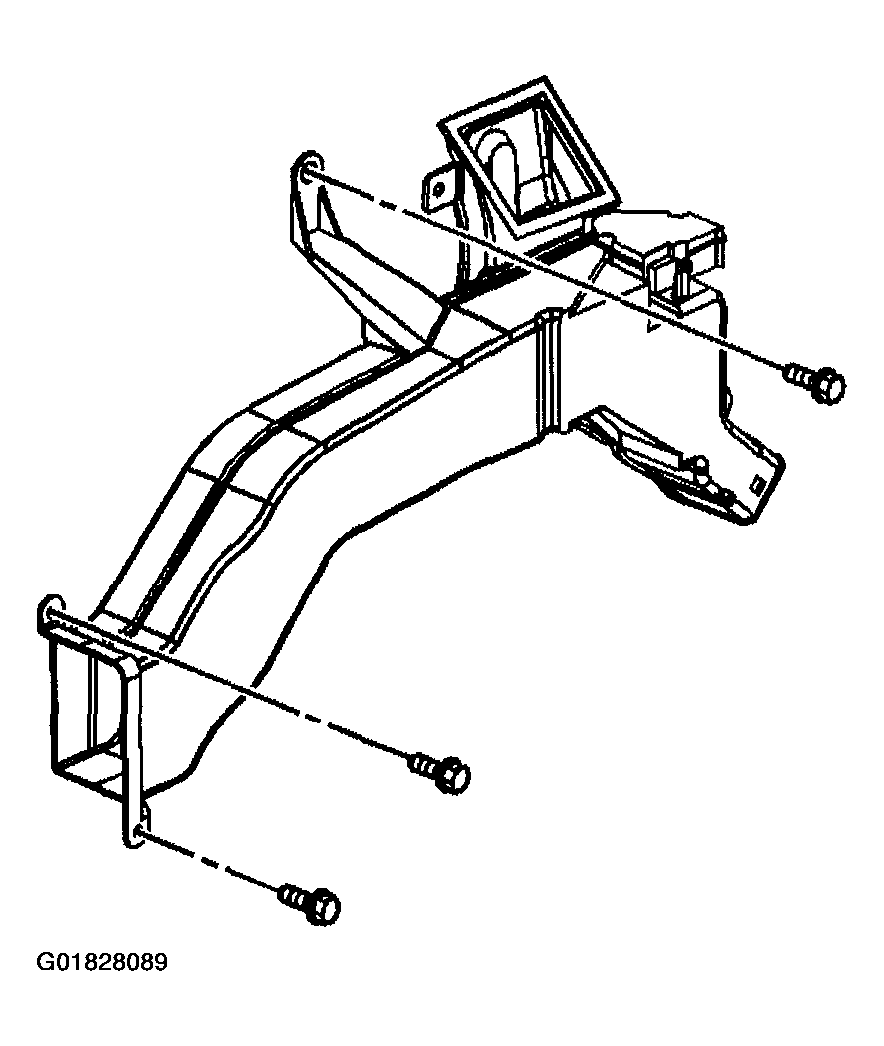

    7. Fig 3: Middle Air Distribution Duct
    G01828089Courtesy of GENERAL MOTORS CORP.
  7. Remove the retainer and bolts from the middle air distribution duct.
  8. Remove the middle air distribution duct from the auxiliary HVAC module assembly.
  9. Remove the middle air distribution duct from the rear quarter.
