Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

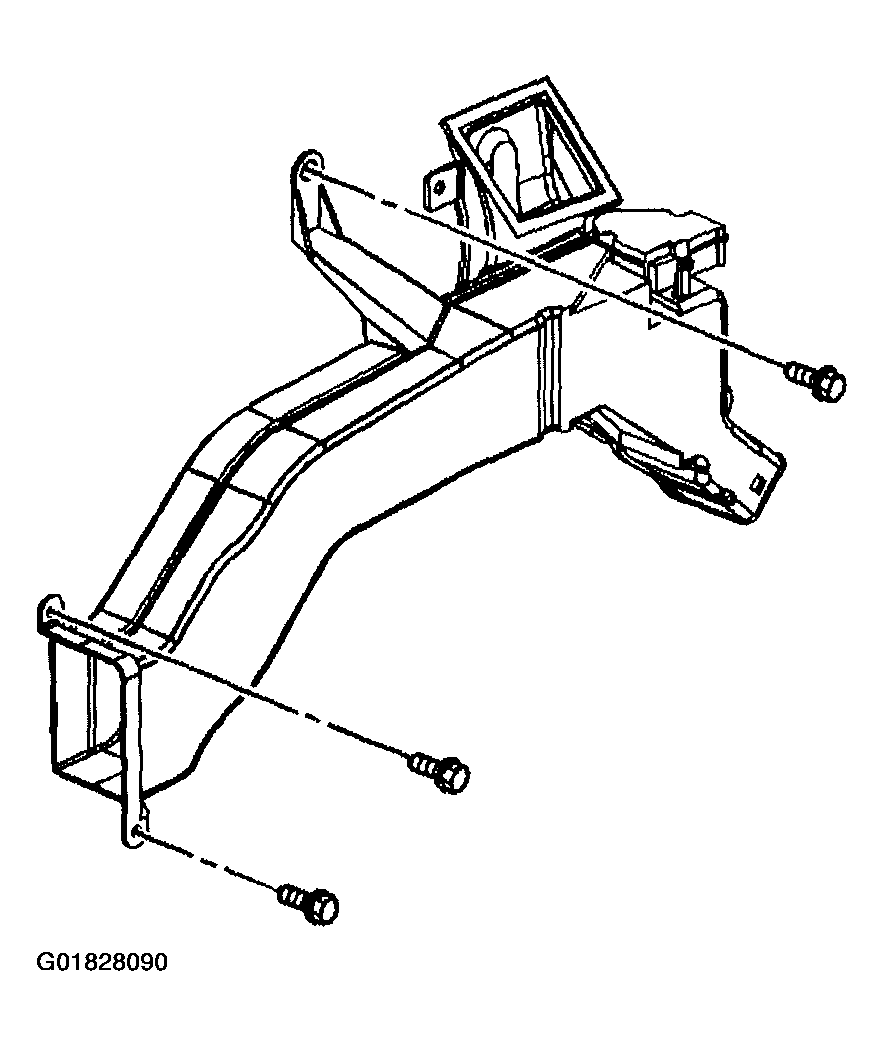

    Fig 1: Middle Air Distribution Duct
    G01828090Courtesy of GENERAL MOTORS CORP.
  1. Install the middle air distribution duct to the rear quarter.
  2. Install the middle air distribution duct to the auxiliary HVAC module assembly.
  3. Install the middle air distribution retainers.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the middle air distribution duct bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the auxiliary mode actuator. Refer to MODE ACTUATOR REPLACEMENT - AUXILIARY .

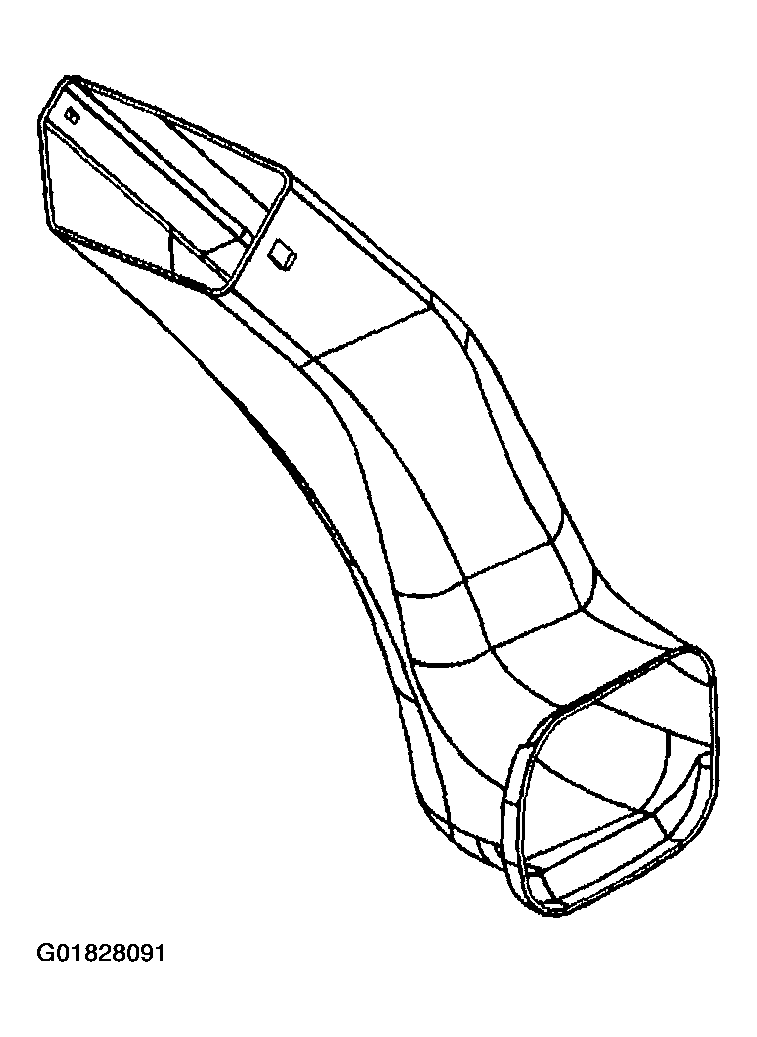

    6. Fig 2: Lower Air Distribution Duct
    G01828091Courtesy of GENERAL MOTORS CORP.
  6. Install the lower air distribution duct to the C-pillar.
  7. Install retainer to secure the lower air distribution duct.

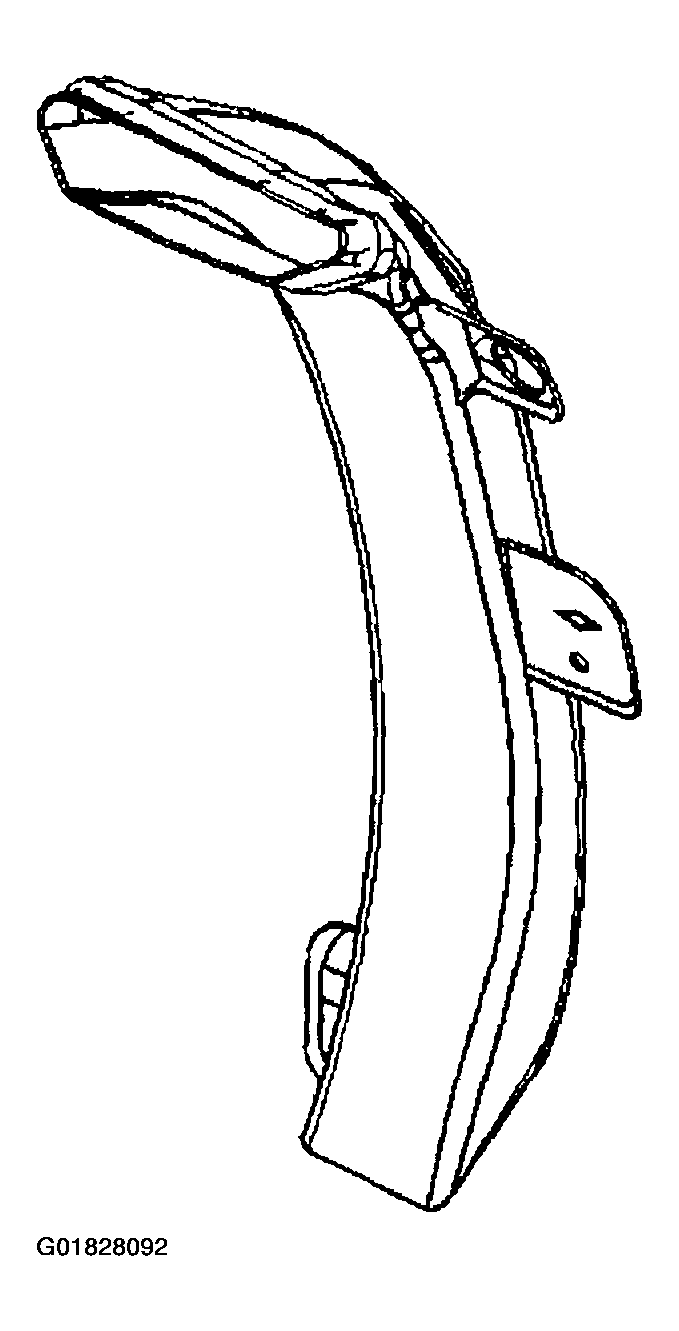

    8. Fig 3: Mid Upper Air Distribution Duct
    G01828092Courtesy of GENERAL MOTORS CORP.
  8. Install the mid upper air distribution duct to the C-pillar.
  9. Install the retaining clips to the air duct system.
  10. Install the left rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
