Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .

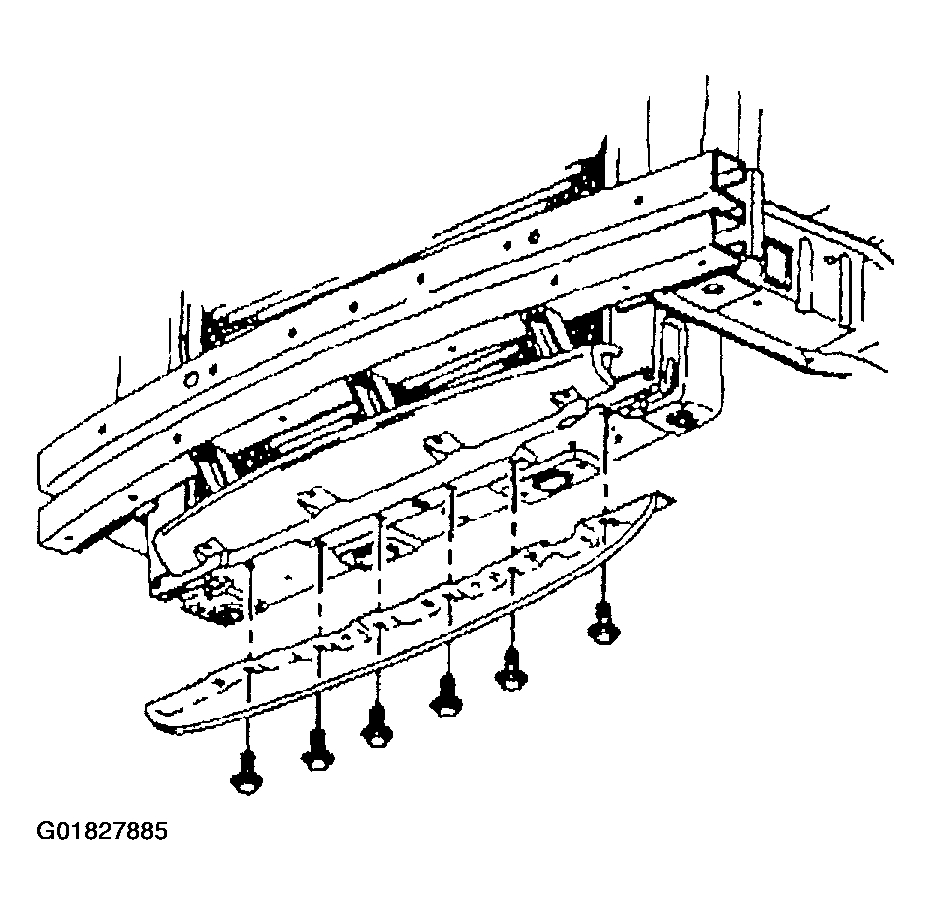

    2. Fig 1: Air Baffle
    G01827885Courtesy of GENERAL MOTORS CORP.
  2. Remove the air baffle bolts.
  3. Remove the air baffle.

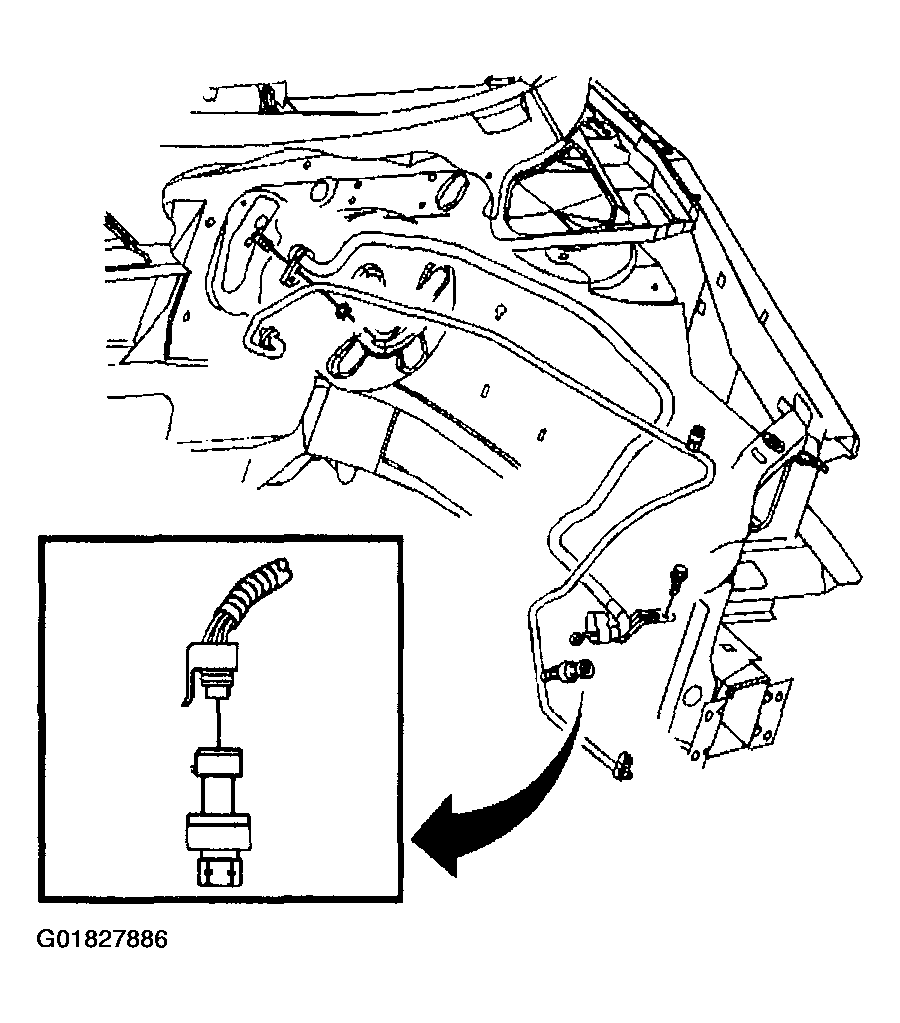

    4. Fig 2: Air Conditioning Refrigerant Pressure Sensor
    G01827886Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the A/C refrigerant pressure sensor electrical connector.
  5. Remove the A/C refrigerant pressure sensor from the evaporator inlet tube.
