Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the evaporator inlet tube fitting.

    Important:  DO NOT allow any of the mineral base 525 viscosity refrigerant oil on the O-ring seal to enter the refrigerant system.

  2. Lightly coat the O-ring seal with mineral base 525 viscosity refrigerant oil.
    NOTE: Refer to FASTENER NOTICE .

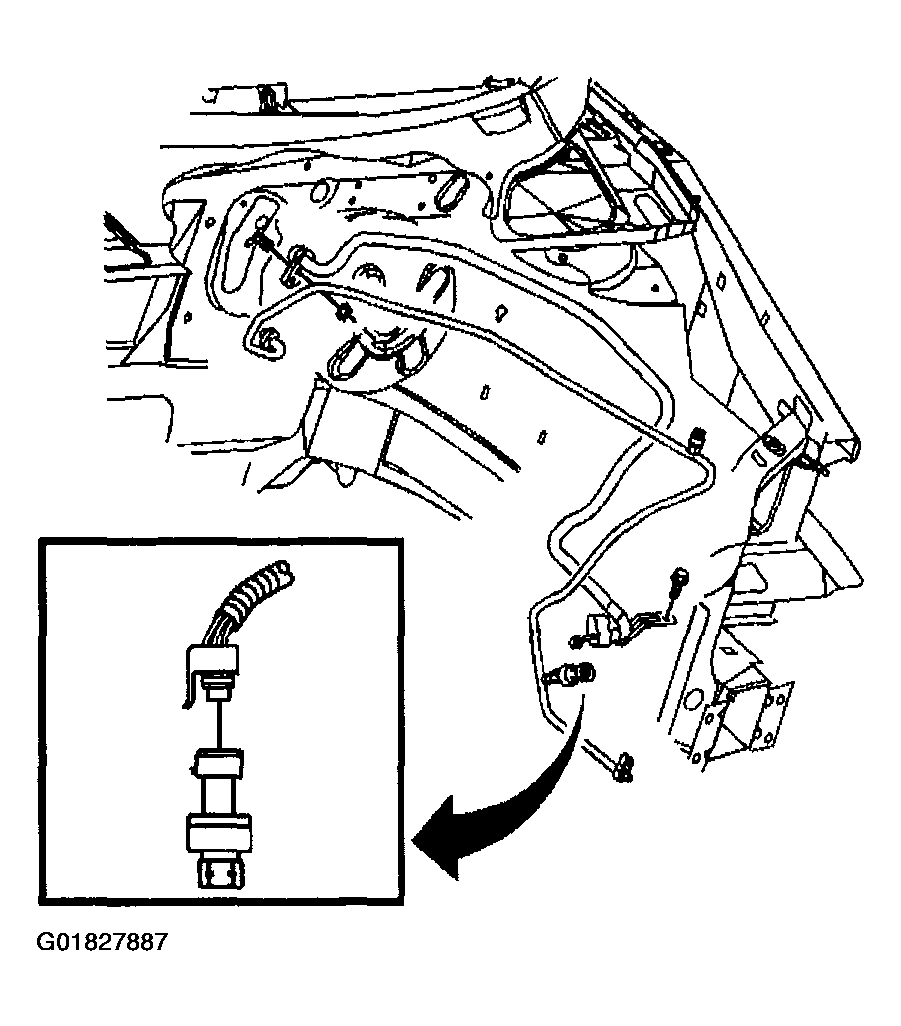

    Fig 1: Air Conditioning Refrigerant Pressure Sensor
    G01827887Courtesy of GENERAL MOTORS CORP.
  3. Install the A/C refrigerant pressure sensor to the evaporator inlet tube.

    Tighten

    Tighten the sensor to 5 N.m (44 lb in).

  4. Connect the A/C refrigerant pressure sensor electrical connector.
  5. Leak test the fittings of the component using J 39400-A.

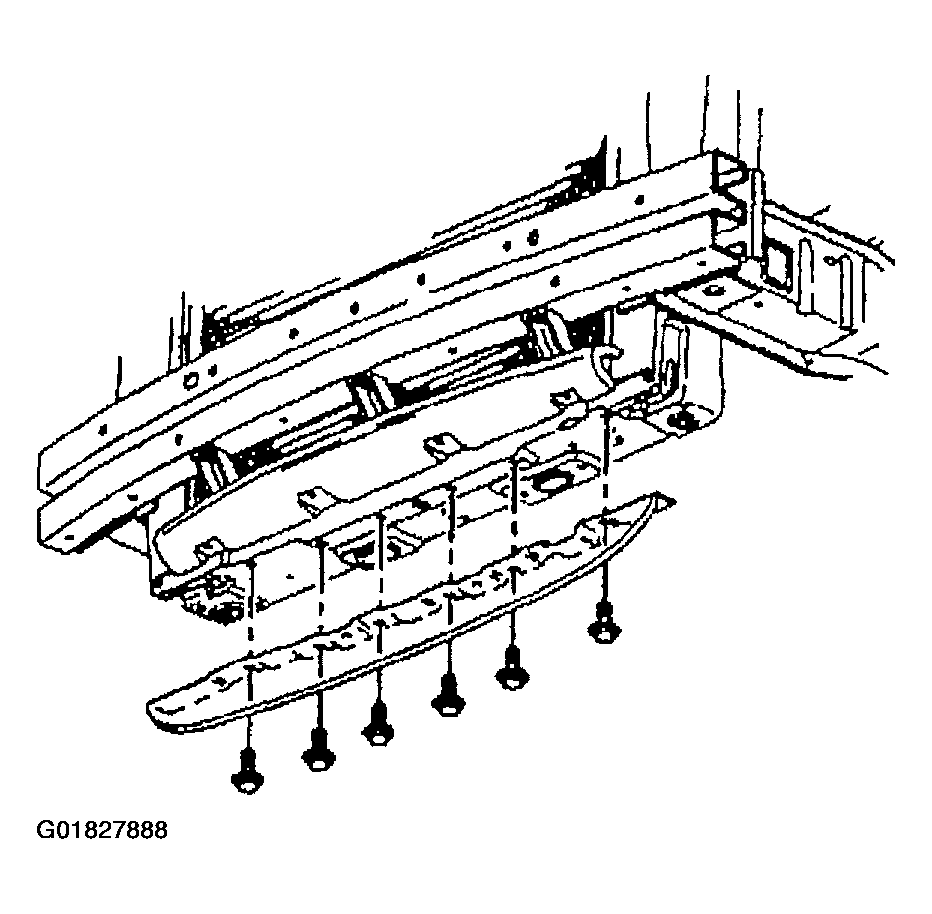

    6. Fig 2: Air Baffle
    G01827888Courtesy of GENERAL MOTORS CORP.
  6. Install the air baffle.
  7. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  8. Lower the vehicle.
