Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper IP trim pad. Refer to TRIM PAD REPLACEMENT - IP UPPER .

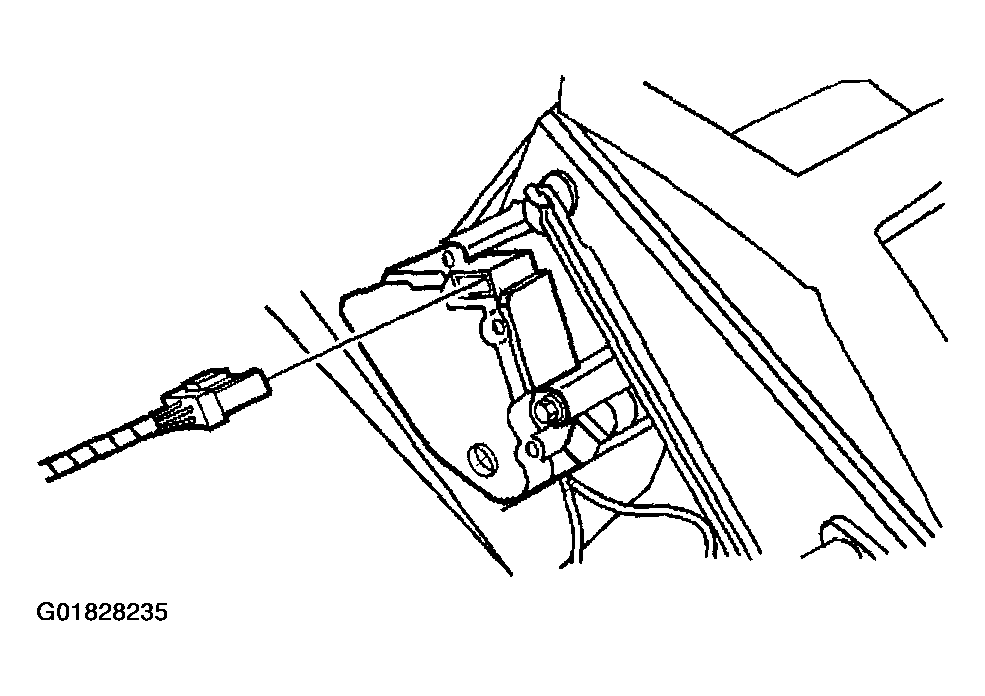

    2. Fig 1: Recirculation Actuator Electrical Connector
    G01828235Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the recirculation actuator electrical connector.

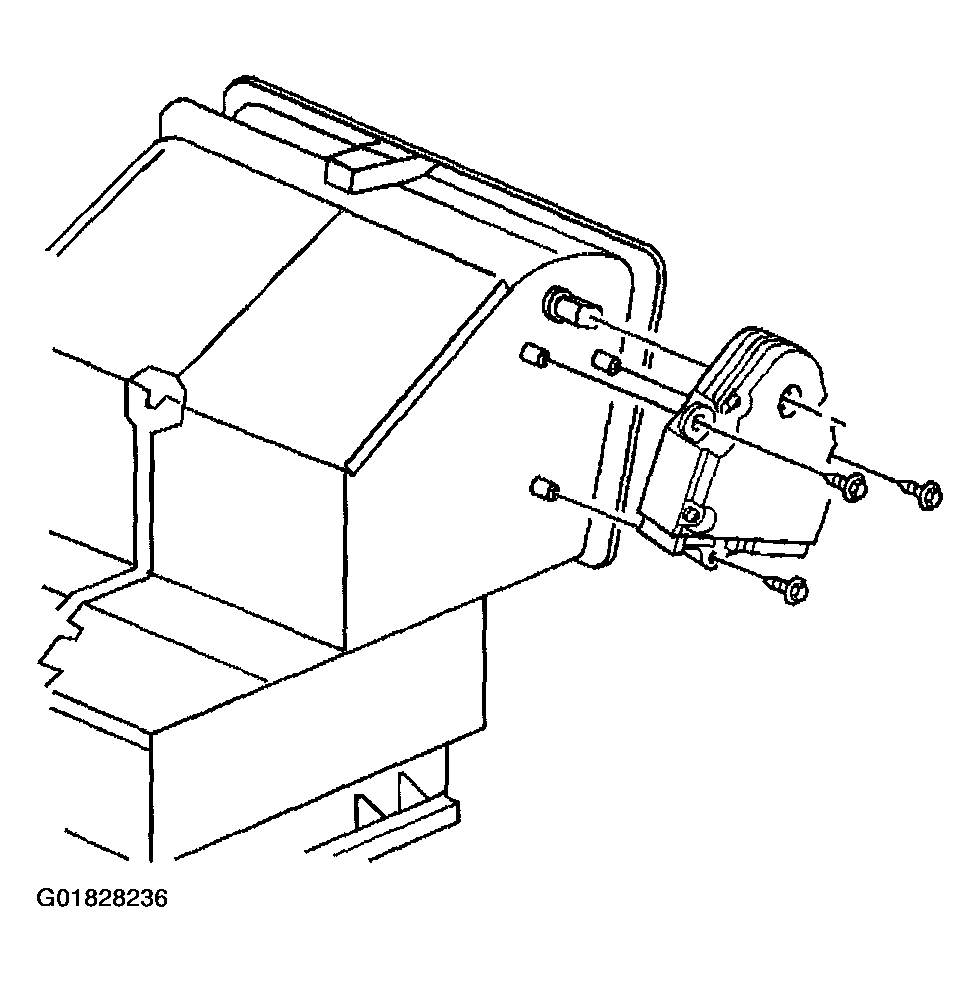

    3. Fig 2: Recirculation Actuator
    G01828236Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining screws from the recirculation actuator.
  4. Remove the recirculation actuator.
