Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

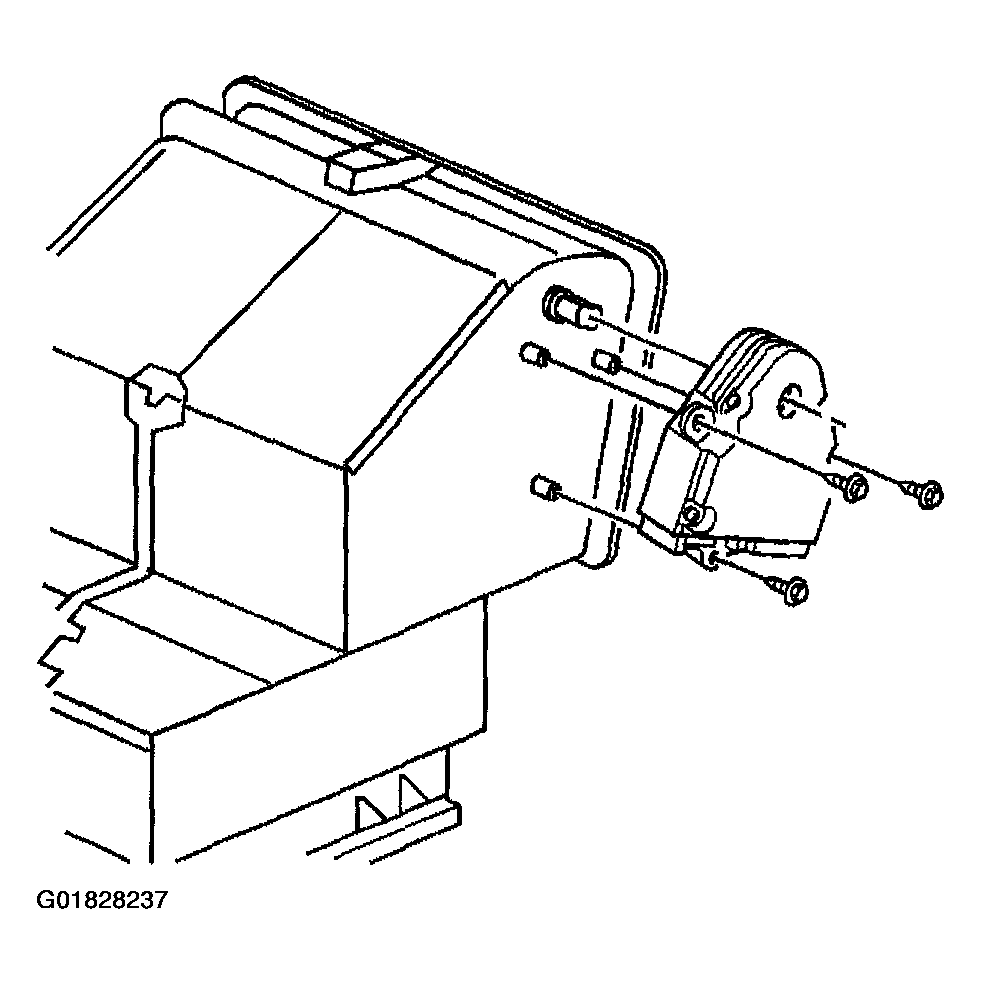

    Fig 1: Recirculation Actuator
    G01828237Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the recirculation actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

    3. Fig 2: Recirculation Actuator Electrical Connector
    G01828238Courtesy of GENERAL MOTORS CORP.
  3. Connect the recirculation actuator electrical connector.
  4. Install the upper IP trim pad. Refer to TRIM PAD REPLACEMENT - IP UPPER .
