Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster from the IP. Refer to KNEE BOLSTER REPLACEMENT .
  2. Disconnect the mode actuator electrical connector.
    3. Fig 1: Push Rod
    G01828231Courtesy of GENERAL MOTORS CORP.
  3. Open the push rod retainer clip.
  4. Disconnect the push rod (3) from the retainer clip.

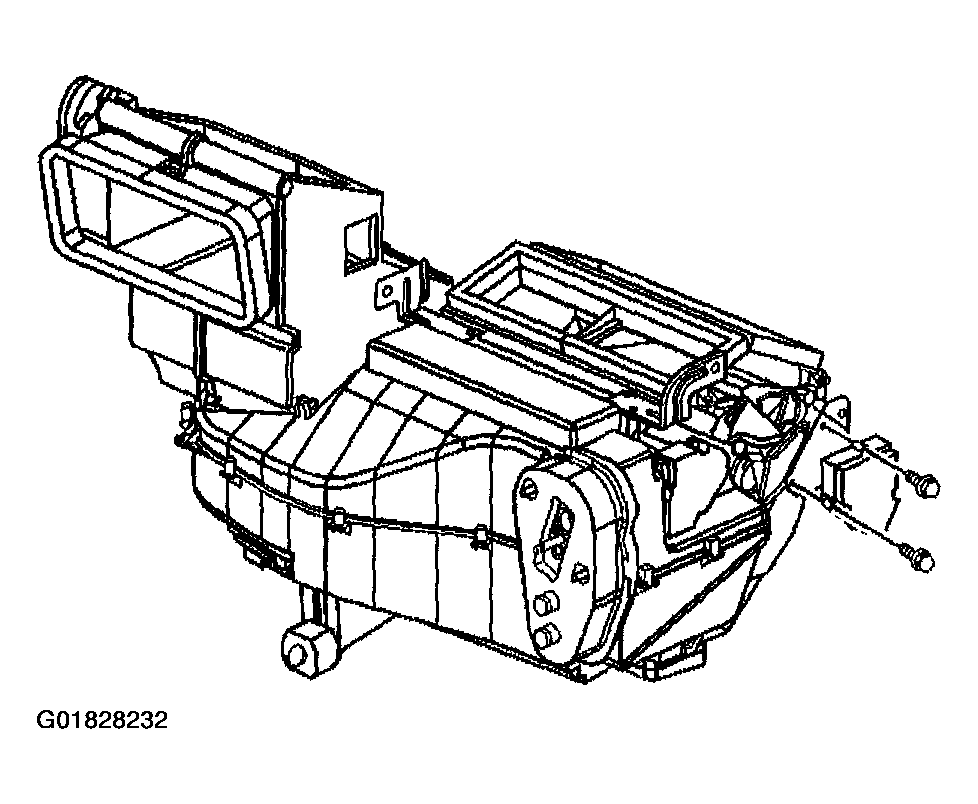

    5. Fig 2: Mode Actuator
    G01828232Courtesy of GENERAL MOTORS CORP.
  5. Remove the mode actuator retaining screws.
  6. Remove the mode actuator.
  7. Disconnect the push rod from the mode actuator.
