Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Disconnect the auxiliary mode actuator electrical connector.

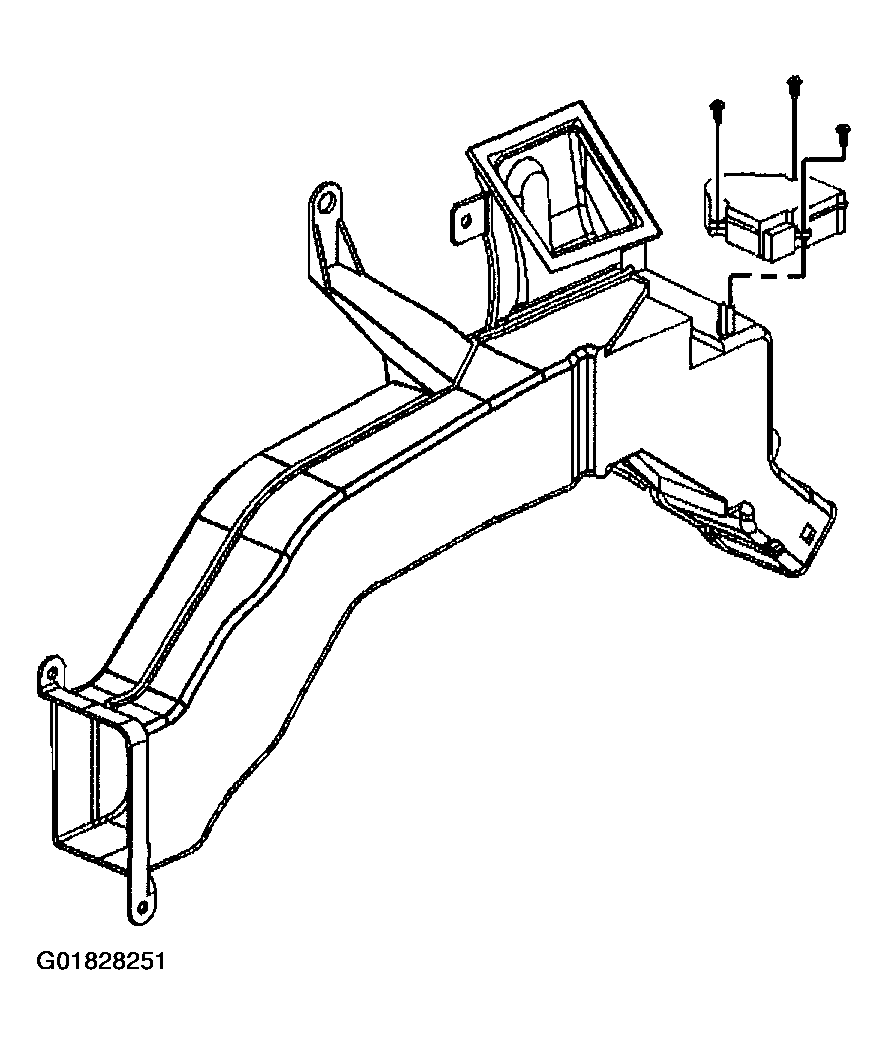

    3. Fig 1: Auxiliary Mode Actuator
    G01828251Courtesy of GENERAL MOTORS CORP.
  3. Remove the auxiliary mode actuator retaining screws.
  4. Remove the auxiliary mode actuator from the air distribution duct.
