Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

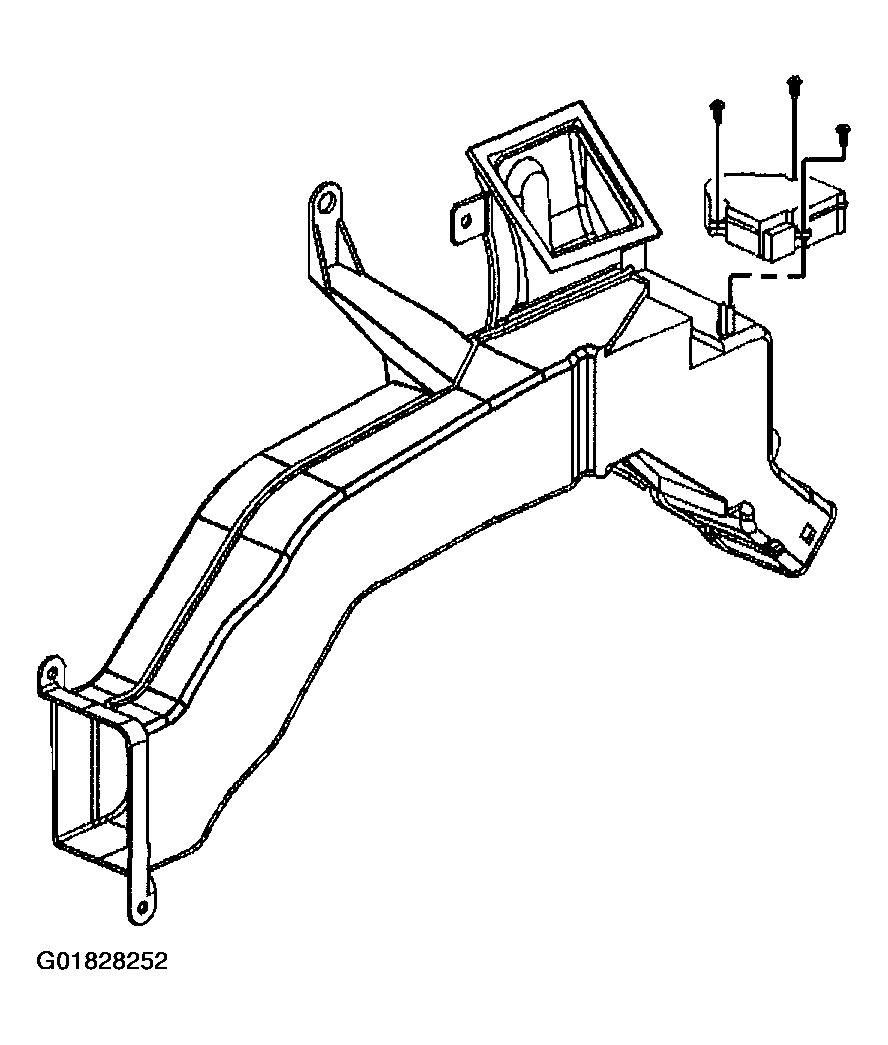

    Fig 1: Auxiliary Mode Actuator
    G01828252Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary mode actuator to the air distribution duct.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the auxiliary mode actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the auxiliary mode actuator electrical connector.
  4. Install the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
